XB2 Push Button Switches
XB2 Push Button Switches

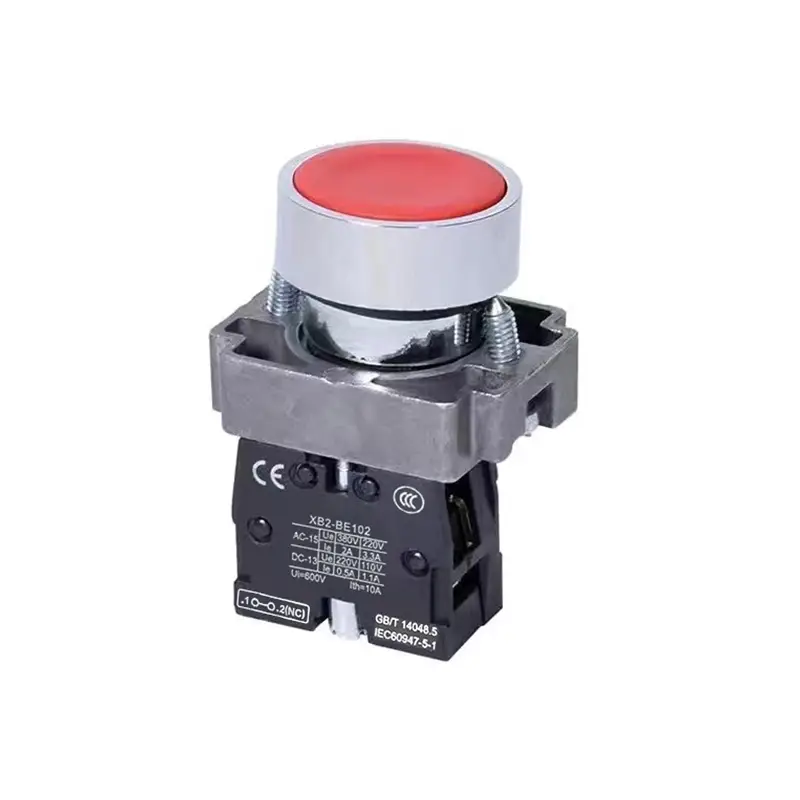

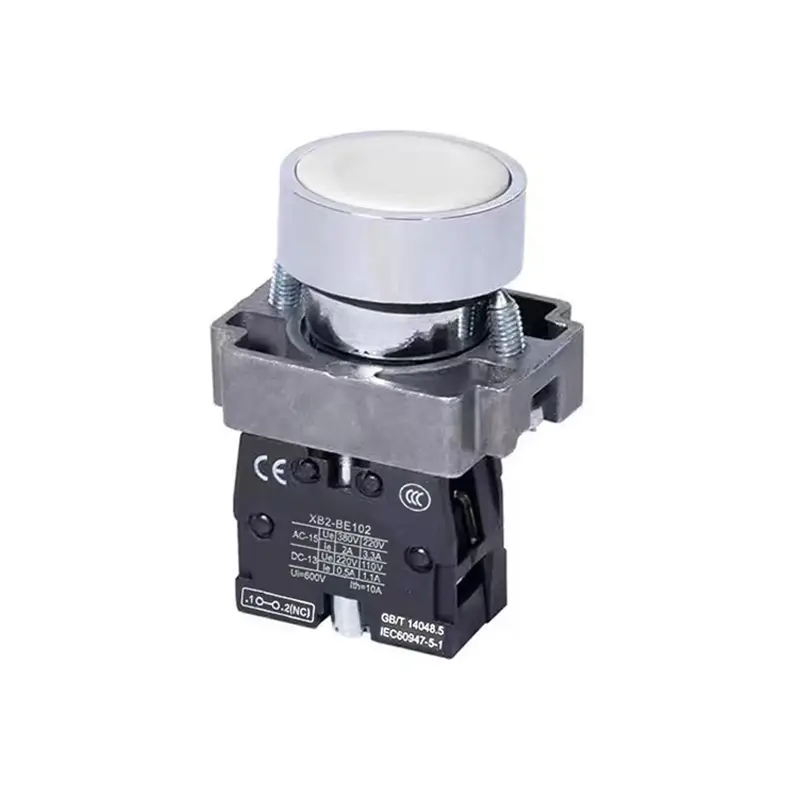

Product Name:Flat Head Push Button Switch
Product Model:XB2-BA Series
Product Current:Suitable for below 10A
Contact Type:1 Normally Open (Green) / 1 Normally Closed (Red)
Mounting Hole Size:22mm
Operation Structure:Self-reset/self-lock
Product Color:White, Black, Green, Red, Yellow, Blue
Product Name:Flat Head Push Button Switch
Product Model:XB2-BA Series
Product Current:Suitable for below 10A
Contact Type:1 Normally Open (Green) / 1 Normally Closed (Red)
Mounting Hole Size:22mm
Operation Structure:Self-reset/self-lock
Product Color:White, Black, Green, Red, Yellow, Blue
Premium XB2 Push Button Switches, 22mm IP65 waterproof industrial control buttons. Momentary/latching types, metal & plastic housing, widely used for automation and panel control systems.
Installation dimensions : 22mm
Self-locking and Self-reset
two selector switch 2 position rotary
three selector switch 3 position rotary
mushroom type emergency stop push button switch
Button color have red, green, blue, yellow, white, black for selection
Self-locking and Self-reset
| Model | Features | Color | Notes |
|---|---|---|---|
| XB2-BA11 | Self Restoring | White | 1NO |
| XB2-BA21 | Self Restoring | Black | 1NO |
| XB2-BA31 | Self Restoring | Green | 1NO |
| XB2-BA41 | Self Restoring | Red | 1NO |
| XB2-BA51 | Self Restoring | Yellow | 1NO |
| XB2-BA61 | Self Restoring | Blue | 1NO |
| XB2-BA15 | Self Restoring | White | 1NO, 1NC |
| XB2-BA25 | Self Restoring | Black | 1NO, 1NC |
| XB2-BA35 | Self Restoring | Green | 1NO, 1NC |
| XB2-BA45 | Self Restoring | Red | 1NO, 1NC |
| XB2-BA42 | Self Restoring | Red | 1NC |
| XB2-BA33 | Self Restoring | Greed | 2NO |
| XB2-BA43 | Self Restoring | Red | 2NO |
| XB2-BA44 | Self Restoring | Red | 2NC |
| XB2-BD21 | 2 Postition Selector Switch Maintained Position | Black | 1NO |
| XB2-BD22 | 2 Postition Selector Switch Maintained Position | Black | 1NC |
| XB2-BD25 | 2 Postition Selector Switch Maintained Position | Black | 1NO, 1NC |
| XB2-BD33 | 3 Postition Selector Switch Maintained Position | Black | 2NO |
| XB2-BD34 | 3 Postition Selector Switch Maintained Position | Black | 2NC |
| XB2-BD35 | 3 Postition Selector Switch Maintained Position | Black | 1NO,1NC |
| XB2-BD41 | 2 Postition Selector Switch Self Restoring | Black | 1NO |
| XB2-BD45 | 2 Postition Selector Switch Self Restoring | Black | 1NO,1NC |
| XB2-BD53 | 3 Postition Selector Switch Self Restoring | Black | 2NO |
| XB2-BS541 | Mushroom maintained push button switch | Red | 1NO |
| XB2-BS542 | Mushroom maintained push button switch | Red | 1NC |
| XB2-BS543 | Mushroom maintained push button switch | Red | 2NO |
| XB2-BS544 | Mushroom maintained push button switch | Red | 2NC |
| XB2-BS545 | Mushroom maintained push button switch | Red | 1NO,1NC |
| XB2-BC31 | Mushroom Self Restoring push button switch | Green | 1NO |
| XB2-BC41 | Mushroom Self Restoring push button switch | Red | 1NO |
| XB2-BC41 | Mushroom Self Restoring push button switch | Red | 1NC |
| XB2-BG21 | 2 Postition Selector Switch Maintained Position Lock with key | Black | 1NO |
| XB2-BG21 | 3 Postition Selector Switch Maintained Position Lock with key | Black | 1NO |
Premium XB2 Push Button Switches, 22mm IP65 waterproof industrial control buttons. Momentary/latching types, metal & plastic housing, widely used for automation and panel control systems.
Installation dimensions : 22mm
Self-locking and Self-reset
two selector switch 2 position rotary
three selector switch 3 position rotary
mushroom type emergency stop push button switch
Button color have red, green, blue, yellow, white, black for selection
Self-locking and Self-reset
| Model | Features | Color | Notes |
|---|---|---|---|
| XB2-BA11 | Self Restoring | White | 1NO |
| XB2-BA21 | Self Restoring | Black | 1NO |
| XB2-BA31 | Self Restoring | Green | 1NO |
| XB2-BA41 | Self Restoring | Red | 1NO |
| XB2-BA51 | Self Restoring | Yellow | 1NO |
| XB2-BA61 | Self Restoring | Blue | 1NO |
| XB2-BA15 | Self Restoring | White | 1NO, 1NC |
| XB2-BA25 | Self Restoring | Black | 1NO, 1NC |
| XB2-BA35 | Self Restoring | Green | 1NO, 1NC |
| XB2-BA45 | Self Restoring | Red | 1NO, 1NC |
| XB2-BA42 | Self Restoring | Red | 1NC |
| XB2-BA33 | Self Restoring | Greed | 2NO |
| XB2-BA43 | Self Restoring | Red | 2NO |
| XB2-BA44 | Self Restoring | Red | 2NC |
| XB2-BD21 | 2 Postition Selector Switch Maintained Position | Black | 1NO |
| XB2-BD22 | 2 Postition Selector Switch Maintained Position | Black | 1NC |
| XB2-BD25 | 2 Postition Selector Switch Maintained Position | Black | 1NO, 1NC |
| XB2-BD33 | 3 Postition Selector Switch Maintained Position | Black | 2NO |
| XB2-BD34 | 3 Postition Selector Switch Maintained Position | Black | 2NC |
| XB2-BD35 | 3 Postition Selector Switch Maintained Position | Black | 1NO,1NC |
| XB2-BD41 | 2 Postition Selector Switch Self Restoring | Black | 1NO |
| XB2-BD45 | 2 Postition Selector Switch Self Restoring | Black | 1NO,1NC |
| XB2-BD53 | 3 Postition Selector Switch Self Restoring | Black | 2NO |
| XB2-BS541 | Mushroom maintained push button switch | Red | 1NO |
| XB2-BS542 | Mushroom maintained push button switch | Red | 1NC |
| XB2-BS543 | Mushroom maintained push button switch | Red | 2NO |
| XB2-BS544 | Mushroom maintained push button switch | Red | 2NC |
| XB2-BS545 | Mushroom maintained push button switch | Red | 1NO,1NC |
| XB2-BC31 | Mushroom Self Restoring push button switch | Green | 1NO |
| XB2-BC41 | Mushroom Self Restoring push button switch | Red | 1NO |
| XB2-BC41 | Mushroom Self Restoring push button switch | Red | 1NC |
| XB2-BG21 | 2 Postition Selector Switch Maintained Position Lock with key | Black | 1NO |
| XB2-BG21 | 3 Postition Selector Switch Maintained Position Lock with key | Black | 1NO |
