3 Phase Digital Ammeter | LCD Panel Mount AC Current Meter 96x96mm
3 Phase Digital Ammeter | LCD Panel Mount AC Current Meter 96x96mm
This three-phase digital panel ammeter is a high-precision electrical measuring instrument with LCD backlight display, designed for real-time monitoring of three-phase AC current. Featuring programmable CT ratio, 0.5 accuracy class and standard 96×96mm panel mounting, it is widely applied in low-voltage switchgears, distribution cabinets and industrial control panels.
This three-phase digital panel ammeter is a high-precision electrical measuring instrument with LCD backlight display, designed for real-time monitoring of three-phase AC current. Featuring programmable CT ratio, 0.5 accuracy class and standard 96×96mm panel mounting, it is widely applied in low-voltage switchgears, distribution cabinets and industrial control panels.
Product Overview
This three-phase digital ammeter is a high-performance, panel-mounted electrical measuring instrument dedicated to real-time three-phase alternating current monitoring in low-voltage power systems. Equipped with a high-precision AD sampling chip and a backlit LCD display, it simultaneously shows A-phase, B-phase and C-phase current values on a single screen, enabling intuitive and efficient power parameter observation.
Supporting programmable current transformer (CT) ratio settings, the meter adapts to various system current specifications without replacing hardware. Its standard 96×96mm panel footprint matches the universal mounting cutout size of industrial electrical panels, making it suitable for both new installations and retrofits to replace traditional pointer-type ammeters. Optional RS485 communication with Modbus-RTU protocol allows integration into SCADA and power monitoring systems for remote data acquisition.
Widely adopted by switchgear manufacturers, system integrators and electrical engineering contractors, this digital ammeter offers high accuracy, stable performance and easy operation, serving as a core measuring component in low-voltage distribution, industrial control and building power management systems.
Core Features & Advantages
- Three-phase simultaneous display: Displays A, B, C three-phase current values on the same LCD screen at the same time, eliminating the need for switching and improving monitoring efficiency.
- High-precision measurement: Built-in high-resolution AD sampling circuit with 0.5 accuracy class, ensuring reliable and accurate current measurement for industrial-grade applications.

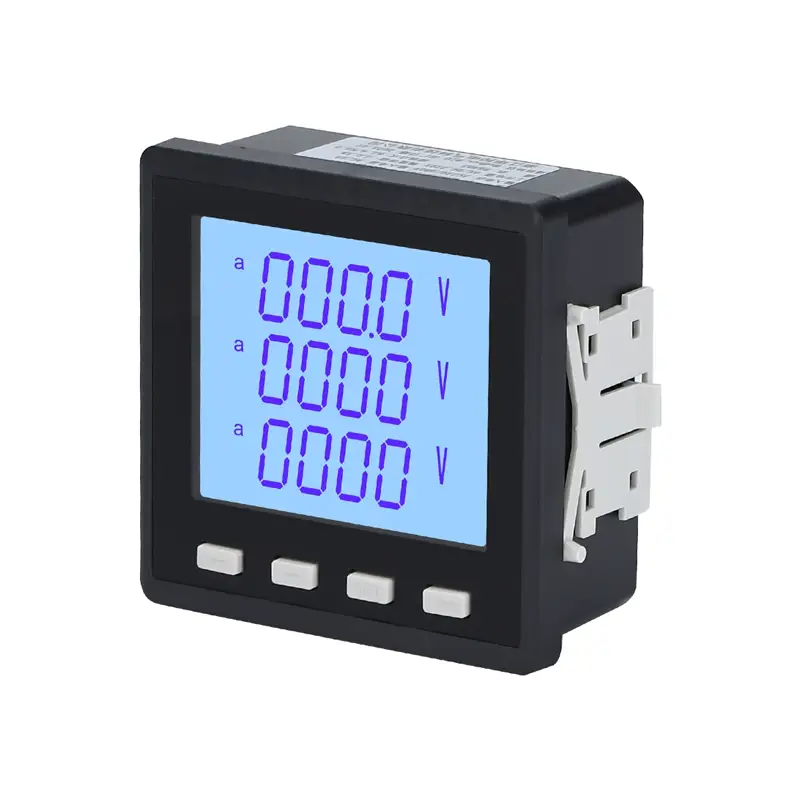

- Backlit LCD screen: High-contrast liquid crystal display with blue backlight, guaranteeing clear readability even in dimly lit panel rooms and low-light environments.
- Programmable CT ratio: Supports user-configurable current transformer ratio via front panel keys, compatible with standard 5A secondary CTs of various primary current ratings.
- Standard panel mount design: Universal 96×96mm front panel size with standard 92×92mm mounting cutout, compatible with most industrial electrical enclosures and switchgear panels.
- Intuitive key operation: Four front-panel function keys for parameter setting, CT ratio configuration and display switching, requiring no professional tools for on-site configuration.
- Strong anti-interference capability: Built-in EMC protection circuit and optimized hardware design, adapting to complex electromagnetic environments in industrial sites.
- Optional communication function: Optional RS485 interface with standard Modbus-RTU protocol, supporting remote data reading and centralized power monitoring system integration.
- Industrial-grade durability: Flame-retardant ABS housing with reliable internal components, ensuring long-term stable operation in harsh electrical environments.
Detailed Technical Specifications
| Parameter | Specification Details |
|---|---|
| Product Type | Three-phase Digital AC Ammeter |
| Measured Parameter | Three-phase Alternating Current (A, B, C phase) |
| Display Mode | LCD liquid crystal display with blue backlight |
| Display Content | Simultaneous display of phase A, B, C current values |
| Input Mode | Current Transformer (CT) input, secondary 5A |
| Measuring Range | AC 0–5A (secondary); scalable via CT ratio setting |
| Accuracy Class | Class 0.5 |
| CT Ratio | Programmable, user-configurable |
| Rated Power Supply | AC/DC 85–265V (universal power supply) |
| Power Consumption | ≤3W |
| Front Panel Size | 96mm × 96mm |
| Panel Cutout Size | 92mm × 92mm |
| Mounting Method | Flush / embedded panel mount |
| Housing Material | Flame-retardant ABS engineering plastic |
| Communication (Optional) | RS485 interface, Modbus-RTU protocol |
| Operating Temperature Range | -20°C ~ +70°C |
| Storage Temperature Range | -30°C ~ +80°C |
| Relative Humidity | ≤90% RH, non-condensing |
| Front Protection Degree | IP54 |
| Insulation Strength | AC 2kV / 1min |
| Applicable Standard | IEC 61010, relevant industrial measurement standards |
Application Scenarios
- Low-voltage switchgear & MCC panels: Three-phase load current monitoring in motor control centers, incoming and outgoing feeder panels.
- Power distribution cabinets & distribution boxes: Real-time current measurement in factory, commercial and building power distribution rooms.
- Generator set control panels: Output current monitoring for diesel generators and standby power systems.
- Industrial machinery control panels: Motor and load current monitoring for production equipment, pump and fan control systems.
- Power monitoring & energy management systems: On-site current data acquisition for building energy management and industrial power monitoring platforms.
- Capacitor compensation panels: Current monitoring for power factor correction equipment and reactive power compensation devices.
- Electrical test benches & training equipment: Current measurement for laboratory testing, vocational training and educational electrical setups.
- Renewable energy systems: AC side current monitoring for solar photovoltaic grid-connected cabinets and energy storage distribution units.
Selection Guide
- Confirm input type: Standard models support 5A secondary CT input; confirm matching with your system current transformer specification.
- Set CT ratio: The meter supports programmable CT ratio, select the appropriate ratio according to your actual primary line current.
- Power supply requirement: Standard models support universal AC/DC 85–265V power supply; confirm compatibility with your control power voltage.
- Communication demand: Choose basic measurement-only model or RS485 communication version according to whether remote data integration is required.
- Verify mounting cutout: Ensure your panel reserves a 92×92mm mounting opening compatible with the 96-type panel meter standard.
Installation & Operation Instructions
Installation
- Ensure the control circuit is fully de-energized before starting installation and wiring work.
- Insert the meter into the pre-cut 92×92mm panel opening from the front side.
- Fasten the meter from the rear using the included mounting brackets and fixing screws.

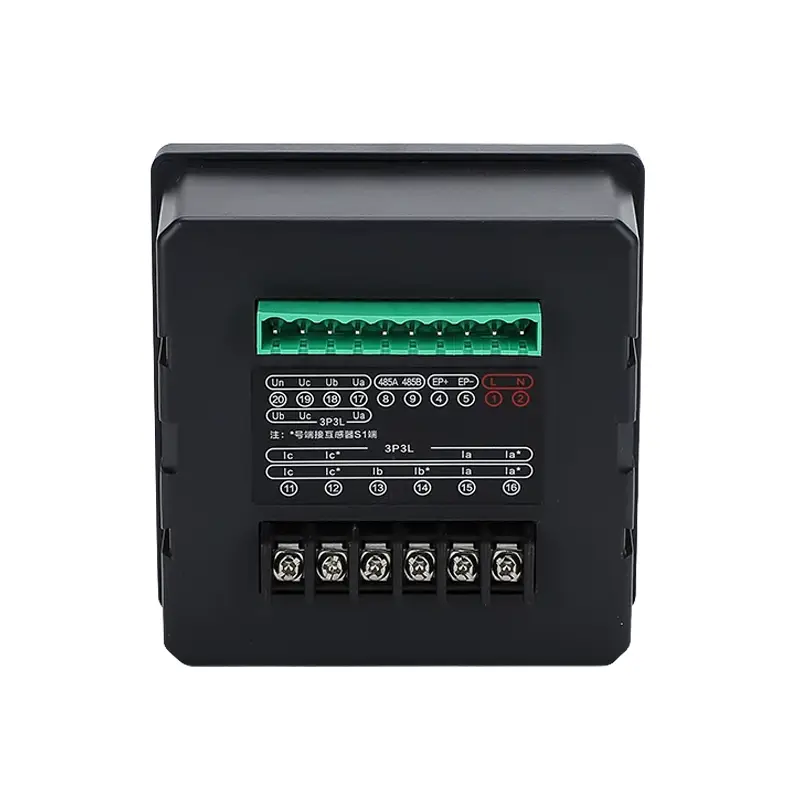

- Connect CT secondary circuits to the corresponding input terminals according to the wiring diagram. Important: never leave the CT secondary circuit open while the primary circuit is energized.
- Connect the power supply terminals and optional communication cables.
- Restore power and enter the setting menu to configure the CT ratio according to actual system parameters.
Operation & Maintenance
- Short press the function keys to switch display pages or enter parameter setting mode.
- Periodically wipe the display screen and panel with a soft dry cloth to maintain readability.
- Inspect terminal connections regularly for tightness and signs of overheating.
- Avoid installing the meter in environments with strong vibration, high humidity, corrosive gas or strong electromagnetic interference.
- All wiring and maintenance work must be performed by qualified electrical personnel in accordance with local safety regulations.
Packaging & Ordering Information
- Standard packaging: Individual carton with user manual, mounting accessories and quality certificate
- Customization options: Customized CT ratio default settings, OEM logo printing and firmware customization available for bulk orders
- Sample policy: Sample orders accepted for functional testing and quality evaluation
- Lead time: 3–7 working days for standard models; 10–15 working days for custom and communication versions
- Pricing: Tiered volume pricing available for wholesale, OEM and engineering project orders
Frequently Asked Questions (FAQ)
Q: Does this ammeter measure both AC and DC current?
A: The standard model is designed for alternating current (AC) measurement only. DC-specific digital ammeter models are available as separate products.
Q: What does 0.5 accuracy class mean?
A: Accuracy class 0.5 means the maximum permissible measurement error is ±0.5% of full scale, providing higher precision than traditional analog pointer meters (typically class 1.5).
Q: Can I use this meter with my existing current transformers?
A: Yes. The meter supports programmable CT ratio settings and works with all standard 5A secondary current transformers. You only need to set the corresponding primary current ratio through the front panel keys.
Q: What is the standard mounting hole size for this meter?
A: The standard panel cutout dimension is 92mm × 92mm, with an overall front bezel size of 96mm × 96mm, matching the universal 96-type panel meter standard.
Q: Does this meter support remote data transmission?
A: The basic model is for on-site display only. An optional RS485 version with Modbus-RTU communication protocol is available for connection to SCADA and power monitoring systems.
Q: Can this meter replace my old analog 6L2 ammeter?
A: Yes. This 96×96mm digital ammeter fits the same standard panel cutout as most analog panel meters, making it a direct drop-in upgrade for higher accuracy and clearer digital readout.
