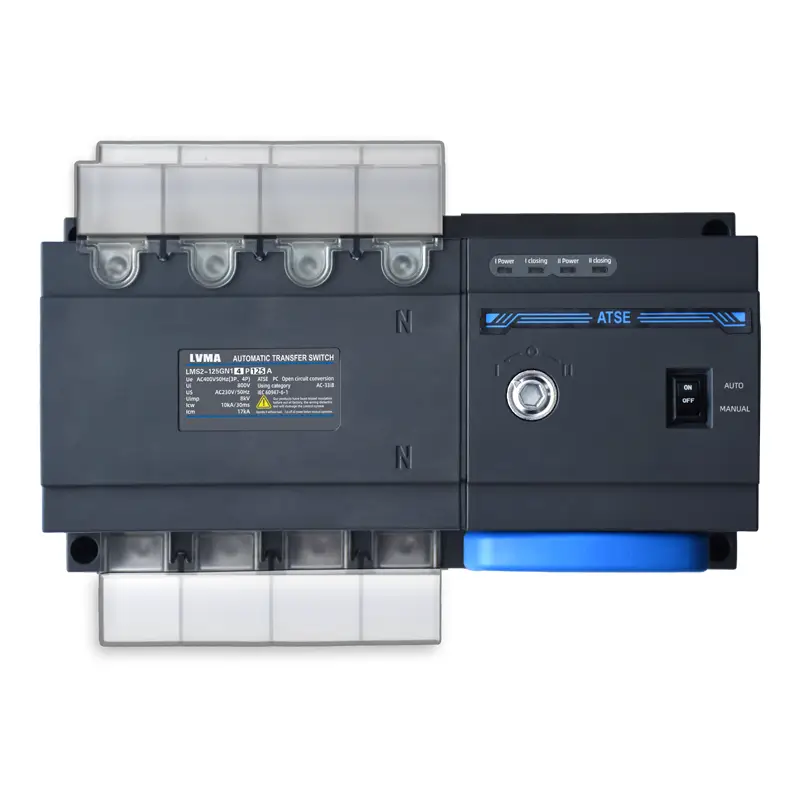

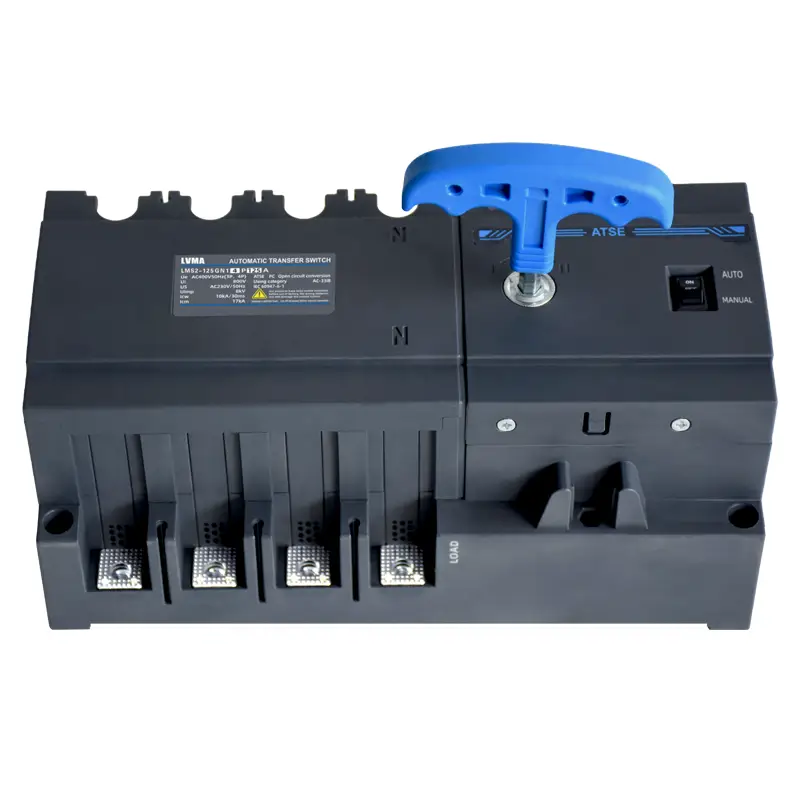

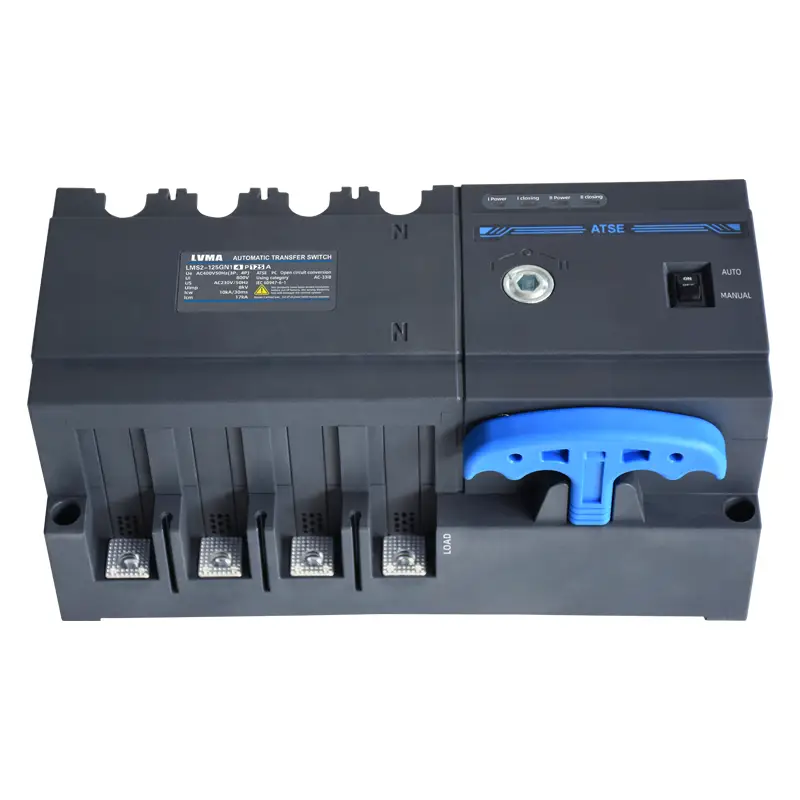

LMS2 Series ATSE Automatic Transfer Switch GN1/GA1/GA | 4P Dual Power Changeover ATS

LMS2 Series ATSE Automatic Transfer Switch GN1/GA1/GA | 4P Dual Power Changeover ATS

Model: LMS2-GN1/GA/GA1
Rated current(A):63,125,250,400,630,800
Rated voltage(V):400V/50Hz
Pole: 4P
Transfer time:≤2s
GN1: Integral type, with fire protection function, phase loss protection, “3+1” phase test with under-voltage test for main power
GA1: Economic type, without fire control signal function
GA: Integral type, with fire protection function, phase loss protection, can be connected to an external controller

📚 LMS2-Series-ATS-Manual

Model: LMS2-GN1/GA/GA1
Rated current(A):63,125,250,400,630,800
Rated voltage(V):400V/50Hz
Pole: 4P
Transfer time:≤2s
GN1: Integral type, with fire protection function, phase loss protection, “3+1” phase test with under-voltage test for main power
GA1: Economic type, without fire control signal function
GA: Integral type, with fire protection function, phase loss protection, can be connected to an external controller

📚 LMS2-Series-ATS-Manual

1. Product Overview

LMS2 ATSE automatic transfer switch (ATS) is a professional 4-pole dual power switching device designed for low-voltage emergency power distribution systems, featuring three complete model variants: GN1, GA1, GA to meet different fire protection, commercial and industrial engineering demands. This unit automatically monitors two independent AC power sources (main power & standby backup power); once the main power loses voltage, phase failure or phase sequence error, it instantly switches the entire load circuit to standby power to avoid power outage damage to critical equipment.
The switch adopts dual mechanical & electrical interlock structure to strictly prevent simultaneous connection of two power sources and short-circuit accidents. It supports both fully automatic intelligent switching and manual emergency hand operation for maintenance scenarios. The whole body uses high-strength V0 flame retardant insulating shell, with thickened pure copper wiring terminals for stable heavy-current transmission. Standard 800A 4P specification fits most medium-large building power distribution cabinets, widely applied in hospitals, data centers, commercial malls, residential complexes and fire emergency power supply systems. As a professional ATSE manufacturer, we provide spot stock delivery, tiered bulk discount pricing and customized model function adjustment for global construction electrical contractors and distribution wholesalers.

2. Core Competitive Features

✅ Mechanical & Electrical Double Interlock Protection

Dual interlock structure physically and electronically blocks simultaneous closing of two power supply contacts, completely eliminating cross-power short-circuit safety hazards.

✅ Auto + Manual Dual Operation Modes

Intelligent automatic switching for daily unattended running; independent blue manual operating handle for forced manual switching during equipment maintenance or controller failure.

✅ V0 Grade Flame Retardant Insulation Housing

High-temperature resistant flame retardant plastic shell, anti-aging, fire-proof, meets international electrical safety standards for indoor distribution cabinet long-term operation.

✅ Thickened Pure Copper Large-Current Terminals

All wiring conductive terminals use thick high-purity copper, low contact resistance, no overheating under long-term 400A full-load continuous operation.

✅ Real-Time Dual Power Status Indicator Lights

Front panel LED indicator lights clearly display Power I and Power II live status, maintenance staff can quickly judge power supply working state at a glance.

✅ Wide Application Compatibility for Critical Loads

Suitable for all uninterruptible power demand scenarios: medical hospital equipment, server data rooms, fire fighting pumps, commercial lighting and elevator emergency power supply.

✅ Factory Spot Stock & OEM Customization Support

Direct factory supply without middle markup, abundant ready stock for fast shipment; accept custom current ratings, silk screen brand logo and special linkage function modification for overseas export bulk orders.

3. Main Product Specifications

ItemTechnical Parameter
Product Model SeriesLMS2 ATSE Automatic Transfer Switch
Optional Model VariantsGN1 / GA1 / GA
Poles4 Pole (4P)
Featured Rated Current63 / 125 / 250 / 400 / 630 / 800 A
Core Protection StructureMechanical + Electrical Double Interlock (Anti-parallel short circuit)
Operation ModesAutomatic intelligent switching + Manual emergency handle operation
Housing MaterialV0 Grade Flame Retardant Insulating Plastic
Terminal MaterialThickened High-Purity Pure Copper Conductive Terminals
Status DisplayLED indicator for Power I / Power II live signal
Core FunctionAuto switch load between main power and standby backup power during mains failure
Typical ApplicationHospital, data center, shopping mall, fire pump, residential building emergency power distribution cabinet
Transfer time≤ 2 s

4. Wide Application Scenarios

  • Hospital medical equipment uninterrupted emergency power supply system
  • Data center server room critical load dual power protection
  • Commercial shopping mall, office building lighting & elevator standby power
  • Fire fighting pump, smoke exhaust fan fire emergency power distribution cabinet
  • High-rise residential building public equipment dual power switching
  • Industrial factory automated production line critical machinery backup power
  • School, hotel, stadium public facility emergency power supply projects

5. Installation & Operation Guide

  1. Install LMS2 ATSE switch firmly inside low-voltage distribution cabinet via reserved mounting holes, reserve heat dissipation space around the unit.
  2. Connect main power source to Power I terminal group, standby backup power source to Power II terminal group, connect all building load circuits to common output terminals.
  3. Switch to AUTO mode: The controller automatically monitors two power sources; if main power fails, it instantly switches load to standby power without manual intervention.
  4. For maintenance work, toggle the AUTO/MANUAL switch to MANUAL position, use the blue manual handle to manually switch between Power I and Power II, lock the handle position during overhaul.
  5. Check front panel LED indicators regularly to confirm two power sources’ live status; inspect copper terminals for loose wiring every quarter to avoid overheating.
  6. GA1 fire dedicated model can be connected with fire control cabinet linkage signal to realize forced power cut-off function under fire alarm conditions.

6.What Makes It Reliable

Every LMS2 ATS is produced in our own factory and passes a 72-hour continuous full-load aging test before shipping. We keep spot stock of the standard 63–800A ratings, support current-rating adjustment, private-label silk printing, and fire-linkage customization for export bulk orders, and ship in shock-proof cartons to prevent terminal or casing damage in transit.

  • Double interlock — mechanical and electrical interlocks physically and electronically prevent both sources from closing at once, removing the cross-power short-circuit risk.
  • Auto + manual operation — unattended automatic switching for daily use, plus an independent manual handle for maintenance or controller failure.
  • V0 flame-retardant housing — high-temperature-resistant insulation for long-term cabinet operation.
  • Heavy copper terminals — low contact resistance and no overheating under sustained full-load current.
  • Real-time status LEDs — front-panel indication of Power I and Power II, readable at a glance.
  • 72-hour aging test — every unit runs a continuous full-load aging test and interlock check before delivery.



7. Frequently Asked Questions (FAQ)

Q1: What safety protection does LMS2 ATSE automatic transfer switch have?

A: It adopts mechanical and electrical double interlock structure to prevent two power sources from being connected at the same time, avoiding dangerous cross short-circuit faults.

Q2: Does LMS2 ATS support both automatic and manual operation?

A: Yes, it has two working modes: fully automatic unattended switching for daily use, and independent manual handle operation for maintenance and emergency fault handling.

Q3: What projects is LMS2 series ATSE transfer switch suitable for?

A: Widely used in hospitals, data centers, shopping malls, fire pump rooms, high-rise residential buildings and all occasions requiring uninterrupted emergency backup power supply.

Q4: Can you customize special functions for LMS2 ATSE for export bulk orders?

A: We are direct ATSE manufacturer with large spot stock, offering competitive bulk pricing, custom current ratings, private logo printing and special fire linkage function adjustment for global electrical engineering customers.

8. Factory Wholesale Advantages

  1. Original dual power transfer switch production factory without intermediate distributors, competitive ex-factory price for large-volume overseas construction electrical export orders.
  2. Every finished LMS2 ATSE undergoes 72-hour continuous full-load aging test and interlock safety inspection before delivery to guarantee stable long-term uninterrupted switching performance.
  3. Professional electrical engineering team provides model selection (GN1/GA1/GA), current rating matching and cabinet installation wiring technical support for building power distribution projects.
  4. Stable mass production capacity with fast delivery lead time, shockproof anti-collision export carton packaging to prevent terminal deformation and casing damage during sea transportation.
  5. Flexible OEM customization service including brand logo silk printing, special current specification adjustment and customized fire linkage function to meet different regional construction electrical safety standards.
