The JXF series is a fully assembled low voltage distribution box built for customizable power distribution solutions. Designed for indoor wall-mounted installation, it comes pre-wired with circuit breakers and busbar systems, with full flexibility in current rating, circuit quantity and component brands. This robust steel distribution panel delivers reliable overload and short-circuit protection, ideal for industrial workshops, commercial buildings and infrastructure electrical systems.
The JXF series is a fully assembled low voltage distribution box built for customizable power distribution solutions. Designed for indoor wall-mounted installation, it comes pre-wired with circuit breakers and busbar systems, with full flexibility in current rating, circuit quantity and component brands. This robust steel distribution panel delivers reliable overload and short-circuit protection, ideal for industrial workshops, commercial buildings and infrastructure electrical systems.
Product Overview

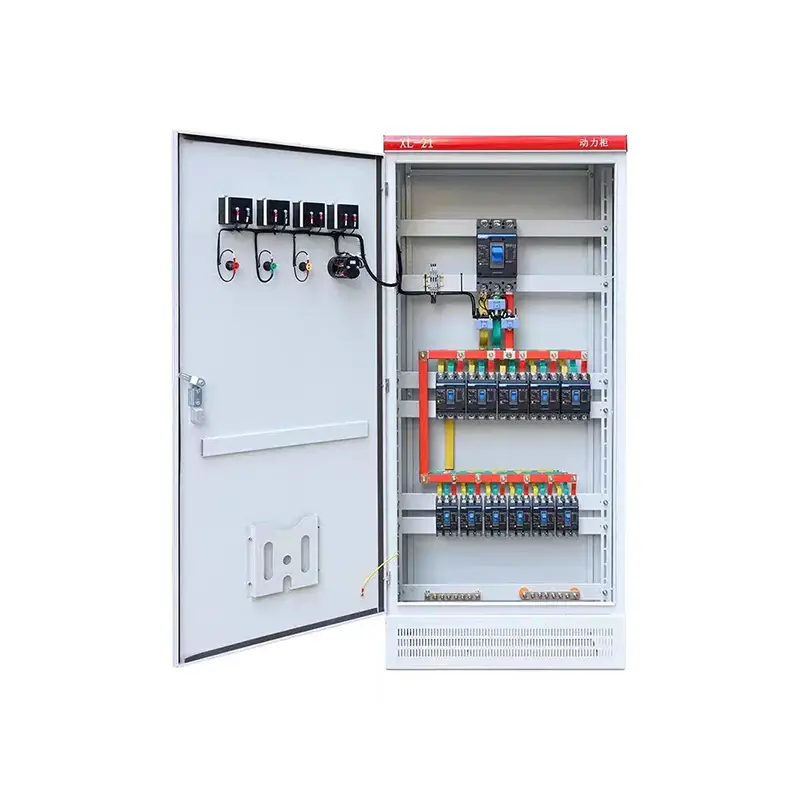

The LVMA JXF series is a professional indoor low-voltage assembled distribution box, engineered for AC 400V three-phase power distribution systems. As a fully customizable turnkey solution, it integrates main switchgear, outgoing circuit breakers, busbar systems and protection devices, all pre-wired and tested in factory before delivery.
With a cold-rolled steel enclosure and standardized internal wiring layout, the JXF distribution box provides stable power distribution, control and circuit protection for low-voltage networks. We support full customization from current rating, circuit quantity to component brands, making it adaptable to various project requirements in industrial, commercial and residential construction fields.
Key Features
- Fully Customizable Solution: Adjustable current rating, circuit number and component configuration to match exact project needs
- Pre-assembled & Ready to Install: Factory finished wiring and testing, reduce on-site installation time and labor cost
- Heavy-duty Enclosure: High quality cold-rolled steel housing with electrostatic powder coating, corrosion and impact resistant
- Standardized Internal Layout: Color-coded copper busbars (yellow/green/red/blue) with clear phase identification, easy for maintenance
- Flexible Component Selection: Compatible with LVMA, ABB, Schneider, Siemens and other mainstream brand electrical components
- Comprehensive Protection: Built-in overload, short circuit protection, with optional leakage protection and surge protection
- Safety Design: Equipped with standard grounding terminal bar, insulated protection covers and secure door lock mechanism
- Indoor Wall Mount Design: Suitable for dry indoor installation, compact structure saves installation space
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | JXF Series |
| Rated Operational Voltage (Ue) | AC 380V / 400V, 50/60Hz |
| Rated Incoming Current | Up to 630A (customizable) |
| Pole Configuration | 3P+N (3 Phase 4 Wire) |
| Enclosure Material | Cold-rolled steel plate, powder coated |
| Installation Type | Indoor wall-mounted |
| Protection Degree | IP30 / IP40 (customizable) |
| Applicable Standards | IEC 60439-1, GB 7251.1 |
| Component Brand | LVMA / Customized brand options |
| Customization Scope | Circuit quantity, current, functions, enclosure size |
Application Scenarios
- Manufacturing plants and industrial workshop power distribution systems
- Commercial buildings, office towers, shopping malls and hotels
- Residential communities and apartment buildings
- Data centers, warehouses and logistics parks
- Infrastructure projects such as stations and hospitals
- Renovation and upgrade of existing low-voltage electrical systems
Customization Options
- Electrical Configuration: Customize main incoming current and number of outgoing circuits based on actual load demand
- Component Brand Selection: Support LVMA, ABB, Schneider, Siemens and other well-known brands of circuit breakers and switchgear
- Function Expansion: Add residual current protection, surge protective device (SPD), energy metering and other functional modules
- Enclosure Customization: Adjust box dimensions, thickness and protection grade to fit installation environment
- Wiring Solution: Copper busbar connection or cable wiring solution available according to customer preference
Structure & Craft Advantages
- The enclosure is made of high-quality cold-rolled steel plate, formed by CNC bending, with high mechanical strength
- Electrostatic powder coating on surface, smooth finish, good corrosion resistance and long service life
- Internal busbars are arranged in standard phase sequence with full insulation protection, effectively preventing electric shock risk
- Reinforced hinges and reliable locking device ensure stable door operation and long-term use
- Reserved neutral and grounding terminal rows, fully compliant with international electrical safety specifications
- Smooth internal edge treatment, no burrs, to avoid cable damage during installation and maintenance
Quality Assurance & Compliance
- Manufactured under strict ISO 9001 quality management system
- Fully compliant with IEC 60439-1 standard for low-voltage switchgear assemblies
- 100% power-on test, insulation resistance test and mechanical operation test before delivery
- Each distribution box is delivered with complete wiring diagram, product certificate and operation manual
Ordering Guide
- Provide required rated incoming current and number of outgoing circuits
- Specify preferred component brands and additional functional requirements
- Confirm enclosure size, protection grade and other customized demands
- Our engineering team will provide tailored solution and formal quotation within 24 working hours
- Support bulk orders and project-based orders, with flexible delivery and packaging solutions for export
