Product Overview

Key Features

• Thickened Cold-Rolled Steel Housing: Reinforced steel plate construction with high mechanical strength, resistant to impact and deformation
• Clear Transparent Viewing Window: Shatterproof window enables real-time visual inspection of internal devices without door opening
• Dustproof & Rustproof Design: Sealed door frame with rubber gasket and electrostatic powder coating prevents dust ingress and surface rust
• Flexible Mounting Options: Available in both horizontal and vertical configurations to fit different installation spaces
• Secure Built-in Lock: Standard cylinder lock with key prevents unauthorized access and ensures electrical safety
• Pre-configured Internal Mounting: Pre-drilled mounting holes and optional DIN rail for quick component installation
• Wall Mount Structure: Compact wall-mounted design saves floor space, suitable for various indoor installation scenarios
• Full Customization Support: Custom dimensions, cable openings, internal layout and branding available for non-standard requirements

Technical Specifications

Standard Configuration Options

Mounting Styles

• Vertical enclosure (tall design, for side-by-side component layout)
• Horizontal enclosure (wide design, for multi-row component layout)

Common Standard Sizes (W × H × D, mm)

• 300 × 400 × 200
• 400 × 500 × 200
• 500 × 600 × 250
• 600 × 800 × 300
• 800 × 1000 × 300

  Custom dimensions are available upon request.

Application Scenarios

• Industrial automation control panels and PLC control systems
• Indoor low-voltage power distribution for factories and commercial buildings
• Electrical monitoring and metering cabinets
• Security and fire alarm system control boxes
• Building automation and intelligent control enclosures
• Workshop equipment electrical control boxes
• Communication and network equipment indoor housings

Structural & Craft Advantages

1. Premium Material & Finishing

   The enclosure body is stamped and formed from thickened high-quality cold-rolled steel plate, with high rigidity and strong load-bearing capacity. The surface is treated with electrostatic epoxy powder coating, which has strong adhesion, uniform color, excellent rust resistance and long-lasting appearance.

2. High-performance Sealing Design

   The door frame is fitted with a continuous sealing rubber strip, which effectively blocks dust and fine particles from entering the cabinet, ensuring stable operation of internal electrical components. The IP54 protection grade fully meets the protection requirements of general indoor industrial and commercial environments.

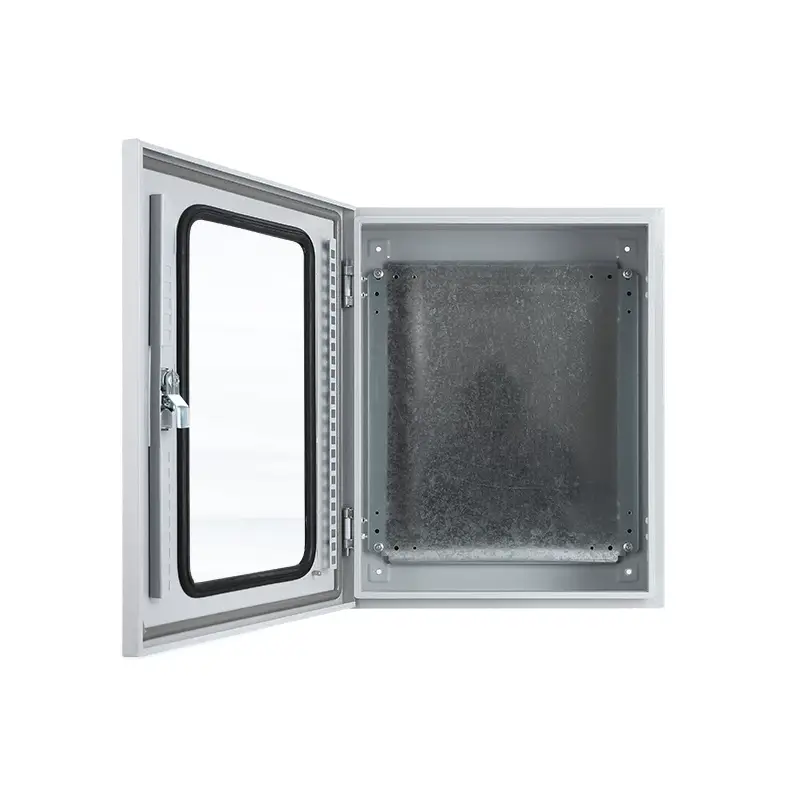

3. High-definition Observation Window

   The window is made of high-strength transparent polycarbonate (PC) material, which is impact-resistant, scratch-resistant and has high light transmittance. The window frame is tightly sealed with the door panel to ensure the overall dustproof and sealing performance of the cabinet.

4. Precision Manufacturing Process

   Adopting CNC precision shearing and bending technology, the enclosure has accurate dimensions, flat structure and tight assembly gaps. The edges are smoothly treated without burrs, which protects cables and operators from scratches during installation and maintenance.

Customization Service

• Custom enclosure dimensions, plate thickness and structural design
• Custom positions and sizes of cable inlet and outlet holes, with matching cable glands
• Internal configuration assembly: DIN rails, terminal blocks, mounting plates, back panels, etc.
• Custom color of powder coating and brand logo printing
• Special lock types, window sizes and additional functional accessories
• Full non-standard design and production according to customer drawings

Quality Assurance

• Manufactured under strict ISO 9001 quality management system
• 100% dimensional inspection, sealing test and appearance inspection before delivery
• Standard export packaging to ensure product safety during long-distance transportation
• Damage compensation guarantee: any product damaged during shipping will be replaced free of charge
• Direct factory supply with competitive bulk pricing and reliable lead time

Installation & Maintenance Tips

1. Select a flat indoor wall surface for installation, ensure the enclosure is mounted horizontally and vertically to avoid door misalignment.
2. Before installing internal components, confirm that the enclosure is reliably grounded to ensure electrical safety.
3. Keep the transparent window clean regularly to maintain good visibility; wipe with a soft cloth to avoid scratches.
4. Periodically check the sealing strip and lock mechanism to ensure long-term dustproof performance and reliable locking.
5. Do not modify the enclosure structure or drill holes without authorization, so as not to affect the structural strength and protection performance.
