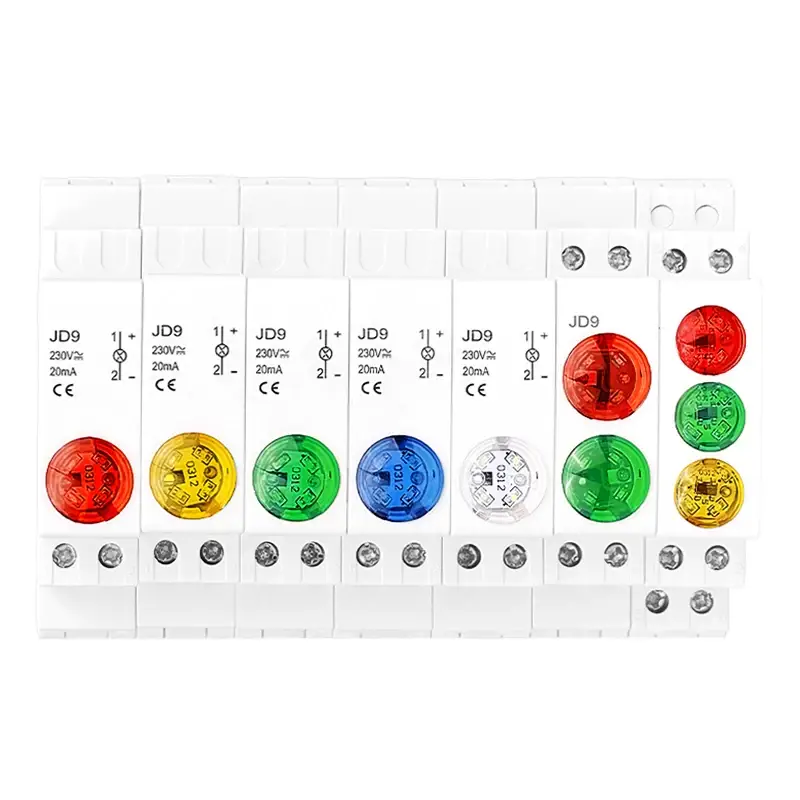

Compact 18mm width DIN rail mount LED indicator light, compatible with both AC and DC power systems. Equipped with high-brightness LED beads, flame-retardant insulating housing and thick conductive copper terminals. Available in single, dual and triple color versions (red/green/yellow/blue/white). CE & RoHS certified, widely used in distribution boxes, control cabinets and industrial automation equipment for real-time power status monitoring. Low power consumption, stable performance, easy DIN rail snap-on installation.
Compact 18mm width DIN rail mount LED indicator light, compatible with both AC and DC power systems. Equipped with high-brightness LED beads, flame-retardant insulating housing and thick conductive copper terminals. Available in single, dual and triple color versions (red/green/yellow/blue/white). CE & RoHS certified, widely used in distribution boxes, control cabinets and industrial automation equipment for real-time power status monitoring. Low power consumption, stable performance, easy DIN rail snap-on installation.
1. Product Overview
2. Core Key Features
✅ Ultra-Compact 18mm Narrow Module Design
Thin 18mm width modular body, high space utilization rate, easy to assemble densely on DIN rail without cabinet crowding.
✅ Universal AC & DC Wide Voltage Compatibility
Suitable for both AC and DC electrical systems, covers mainstream working voltage (12V/24V/48V/110V/220V) for civil and industrial power control.
✅ High Brightness Long-Life LED Light Source
High-transmittance LED beads with soft uniform light, visible from long distance; service life over 50,000 hours, ultra-low power loss, energy-saving.
✅ Flame Retardant Insulation Housing
Shell made of V0-grade flame retardant PC material, anti-aging, heat resistant, insulation protection, avoid fire risk under abnormal circuit temperature.
✅ Thickened Pure Copper Conductive Terminals
Wiring terminals use thickened brass with good electrical conductivity, anti-oxidation, stable wiring contact, no heat accumulation during long-time operation.
✅ Multi-Color Combination Customization
5 basic light colors: Red, Green, Yellow, Blue, White; supply single-color (H1D), dual-color (H2D), triple-color (H3D) integrated indicator models.
✅ Standard DIN Rail Snap-on Mounting
Quick buckle design for 35mm standard DIN rail, plug-and-play without extra fixing tools, convenient for installation and maintenance replacement.
✅ Full International Safety Certifications
Passed CE, CCC, RoHS compliance test, meets EU and global electrical equipment safety standards, support global wholesale export.
3. Product Specifications
| Item | Parameter |
|---|---|

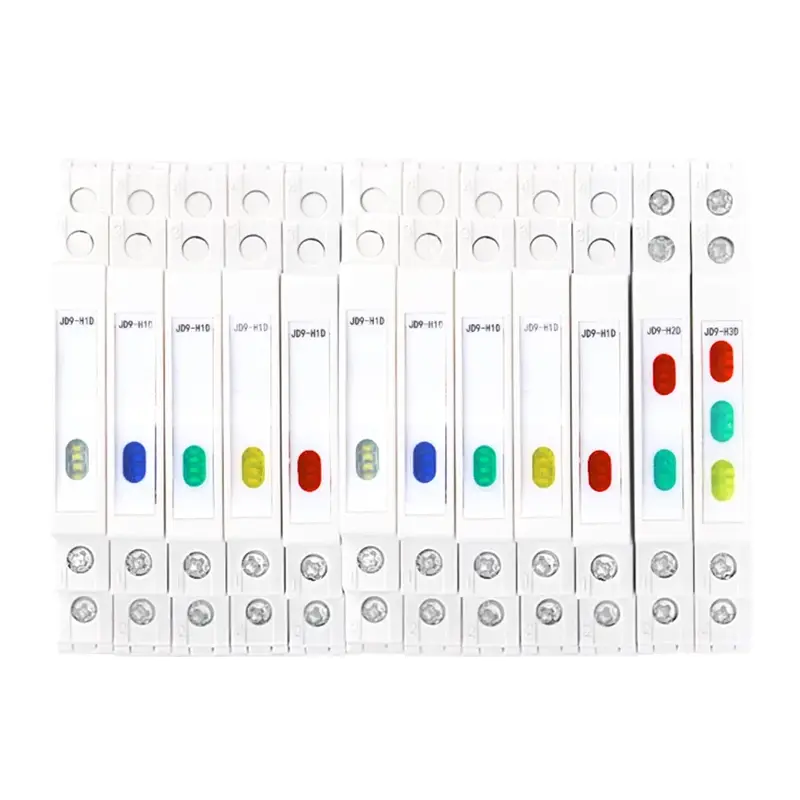

| Model | JD9-H1D (Single Color), JD9-H2D (Dual Color), JD9-H3D (Triple Color) |
| Module Width | 18mm |
| Mounting | Standard 35mm DIN Rail |
| Applicable Power | AC / DC Universal |
| LED Colors | Red, Green, Yellow, Blue, White (single/dual/triple combination optional) |
| Housing Material | V0 Flame Retardant PC |
| Terminal Material | Thickened Pure Copper |
| LED Lifespan | ≥50,000 Hours |
| Protection Class | IP20 (Indoor Cabinet Use) |
| Certifications | CE, CCC, RoHS |
| Operating Temperature | -20℃ ~ +60℃ |
4. Wide Application Scenarios
- Low-voltage electrical distribution boxes
- Industrial PLC control cabinets
- Automation machine equipment panels
- Power distribution switchgear
- Building intelligent power monitoring system
- Solar photovoltaic combiner boxes
- Elevator & mechanical equipment status indication
5. Installation & Wiring Guide
- Directly snap the modular indicator onto standard 35mm DIN rail, firmly lock the buckle.
- Strip wire insulation and insert into copper terminal holes, fasten the screw to lock wire tightly.
- Connect positive/negative (DC) or live/neutral (AC) wires according to circuit voltage; light will illuminate once power is supplied.
- For multi-color models, each LED corresponds to independent circuit signal for separate status display.
6. Frequently Asked Questions (FAQ)
Q1: Is this DIN rail LED indicator compatible with both AC and DC circuits?
Q2: What color options can I choose for the DIN rail signal light?
Q3: Does this LED indicator pass international export certifications?
Q4: How long is the service life of the din rail LED lamp?
Q5: Can it be densely installed together with circuit breakers on DIN rail?
6. Factory Wholesale Advantage
- Direct manufacturer supply, competitive factory price for bulk orders.
- Support customized voltage, light color combinations and private logo printing.
- Stable production capacity, fast delivery for large wholesale orders.
- Strict raw material inspection and finished product aging test to guarantee quality.
- Professional electrical engineering team provides technical wiring and selection support.
7. Contact us for technical documentation and support
Download the full datasheet for detailed specifications, wiring diagrams, and installation instructions.
Exclusive project customization supports OEM/ODM mode, contact our technical team to create a complete set of landing solutions for you.
Request a quote with your project details for bulk pricing, lead times, and compliance certifications.
