BP32 Isolator Switch 100-630A | Single/Double Throw 3 Phase Disconnect Switch
BP32 Isolator Switch 100-630A | Single/Double Throw 3 Phase Disconnect Switch

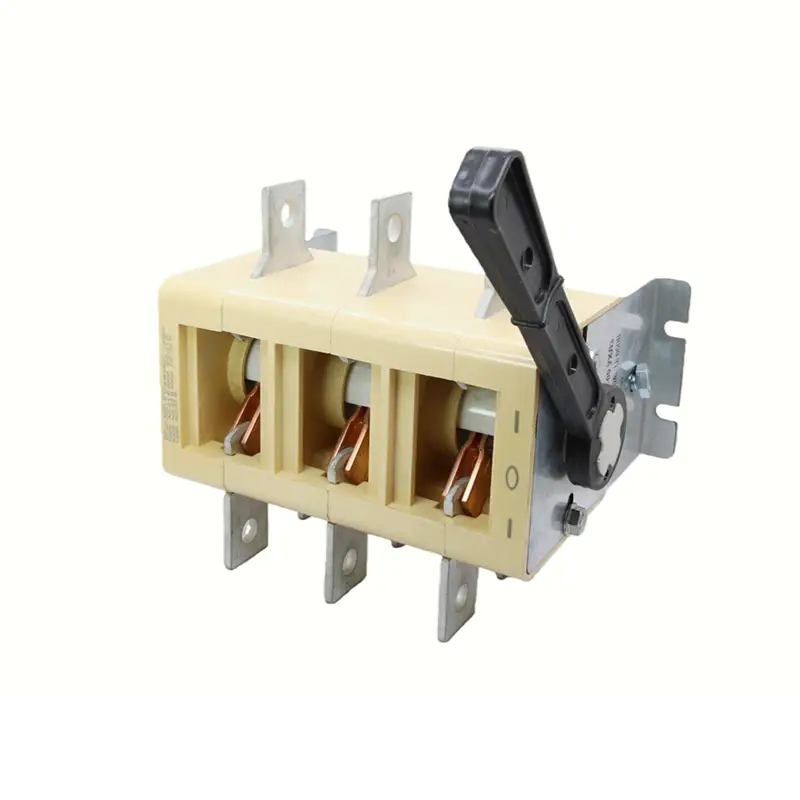

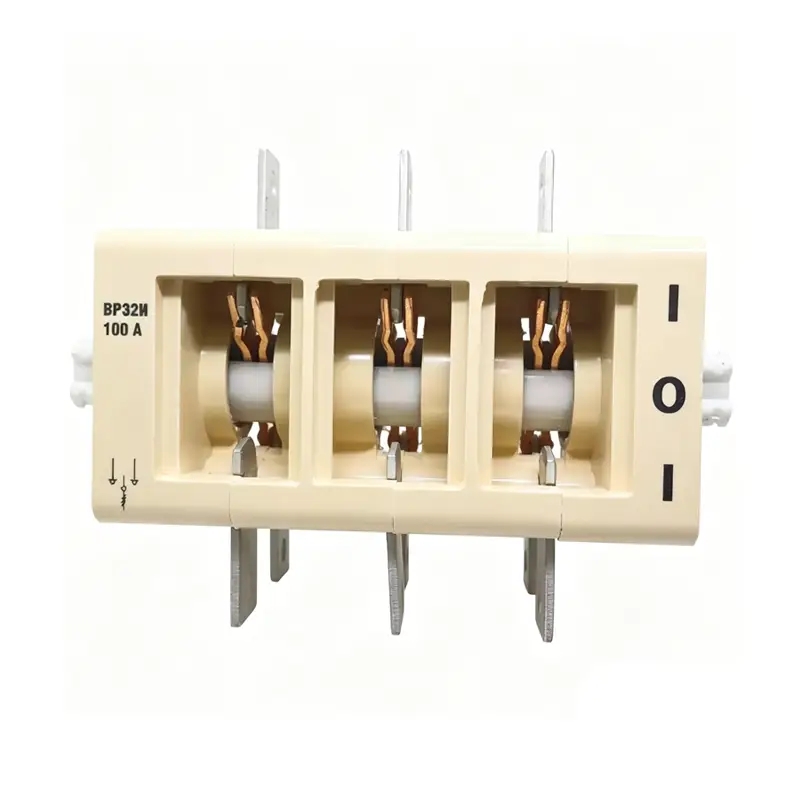

BP32 series 3-phase isolator switch covers 100A to 630A, available in single throw and double throw types. Adopts flame retardant insulation shell and full pure copper conductive parts with anti-seismic structure. Supports dual-side operation, equipped with matched internal & external operating handle. Widely applied in low-voltage distribution cabinets, photovoltaic combiner boxes and industrial control panels for safe power isolation. Factory direct supply with customizable service for global export orders.
BP32 series 3-phase isolator switch covers 100A to 630A, available in single throw and double throw types. Adopts flame retardant insulation shell and full pure copper conductive parts with anti-seismic structure. Supports dual-side operation, equipped with matched internal & external operating handle. Widely applied in low-voltage distribution cabinets, photovoltaic combiner boxes and industrial control panels for safe power isolation. Factory direct supply with customizable service for global export orders.
1. Product Overview
2. Core Competitive Features
✅ Wide Current Range 100A–630A
Covers full specifications: 100A, 160A, 200A, 250A, 400A, 630A, meets diverse power load demands of industrial and new energy projects.
✅ Optional Single Throw & Double Throw Structure
Two structural types for selection: single throw for simple on-off isolation, double throw for dual-circuit switching & transfer power supply scenarios.
✅ High-Grade Flame Retardant Insulation Housing
Shell made of V0 grade flame retardant insulating material, high temperature resistance, anti-aging, effectively avoid circuit fire risks under overload abnormal conditions.
✅ Full Pure Copper Conductive Fittings
All contact terminals and conductive parts use thickened pure copper, excellent electrical conductivity, low contact resistance, stable power transmission without overheating under long-term heavy load.
✅ Built-In Anti-Seismic Shock Resistant Structure
Optimized internal fixed buffer structure, strong shock and vibration resistance, stable contact performance for mechanical workshop, outdoor PV station and bumpy transportation environments.
✅ Double Side Operable Design
Unique two-side operation structure, can control the switch from either left or right side of cabinet, flexible layout for compact electrical panel design.

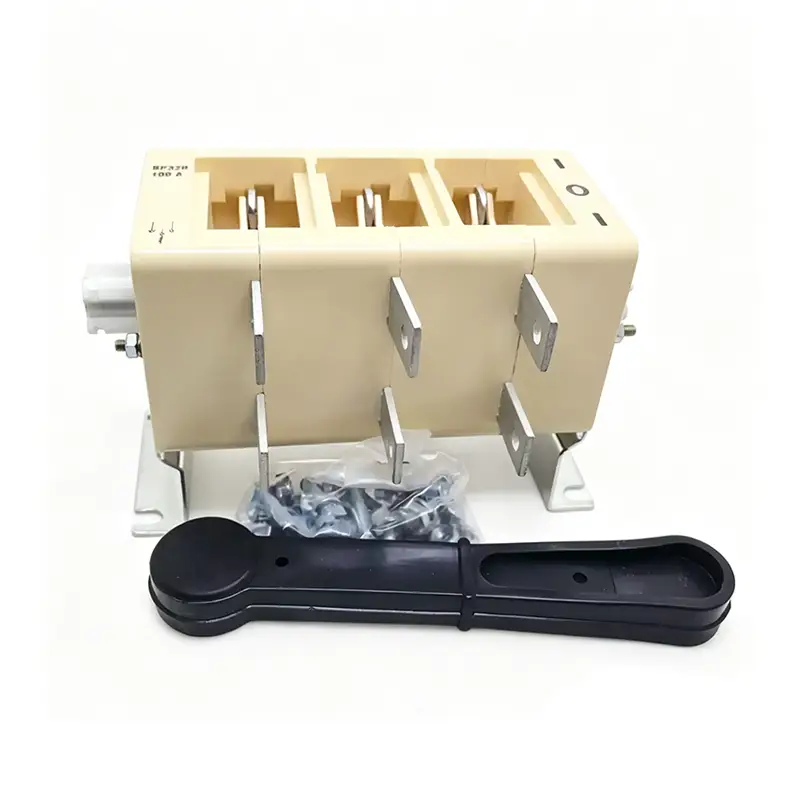

✅ Matching Internal & External Dual Purpose Handle
Comes with integrated operating handle set, support inner cabinet manual operation and outer cabinet extension operation, convenient daily maintenance and power cut operation.
✅ Factory Direct Sale & Customization Support
Original manufacturer supply without middleman markup; accept custom current marking, logo printing, packaging and special handle modification for overseas export.
3. Complete Product Specifications
| Item | Technical Parameter |
|---|---|
| Product Model | BP32 Isolator Switch |
| Structure Type | Single Throw / Double Throw Optional |
| Rated Current | 100A, 160A, 200A, 250A, 400A, 630A |
| Phase Number | 3 Phase |
| Housing Material | V0 Grade Flame Retardant Insulation Plastic |
| Conductive Components | Thickened Pure Copper |
| Operation Mode | Double Side Operable, Internal & External Handle Matched |
| Shock Resistance | Anti-seismic built-in buffer structure |
| Application Voltage | Low Voltage AC Distribution System |
| Core Advantage | Visible isolation break, safe power cut-off |
| Service Support | Factory direct supply, OEM & ODM customization |
| Export Service | Global export standard packaging |
4. Main Application Scenarios
- Low voltage complete set distribution cabinets
- Solar photovoltaic combiner boxes & PV power stations
- Industrial machinery equipment control panels
- Construction building power distribution switchgear
- Commercial mall power transfer switch system
- New energy energy storage cabinet isolation protection
- Mining workshop anti-vibration electrical equipment
5. Operation & Installation Instruction
- Mount the BP32 isolator switch firmly inside the electrical cabinet with standard fixed mounting holes.
- Connect three-phase incoming and outgoing cables to the pure copper terminal blocks, fasten wiring screws to avoid loose contact.
- Install the matched operating handle, the dual-side structure allows operation from cabinet front or side panel.
- Toggle the handle to separate the internal contact, form a visible isolation gap to realize safe power cut-off maintenance.
- For double throw type, switch handle to realize switching between two independent power supply circuits.
6. Frequently Asked Questions (FAQ)
Q1: What current specifications does BP32 isolator switch provide?
Q2: What’s the difference between single throw and double throw BP32 disconnect switch?
Q3: Is BP32 isolator suitable for solar photovoltaic system?
Q4: Can I operate this isolator switch from both sides of cabinet?
Q5: Do you support customization for export bulk orders?
7. Factory Wholesale Advantages
- Original manufacturer production, competitive ex-factory price for large bulk export orders.
- Strict raw material inspection and finished product aging test to guarantee stable product quality.
- Professional electrical technical team provides selection guidance and wiring installation support.
- Short lead time for mass orders, complete export packaging to prevent damage during ocean transportation.
- Flexible customization service to meet different regional electrical market standards and client brand demands.
8. Contact us for technical documentation and support
Download the full datasheet for detailed specifications, wiring diagrams, and installation instructions.
Exclusive project customization supports OEM/ODM mode, contact our technical team to create a complete set of landing solutions for you.
Request a quote with your project details for bulk pricing, lead times, and compliance certifications.
