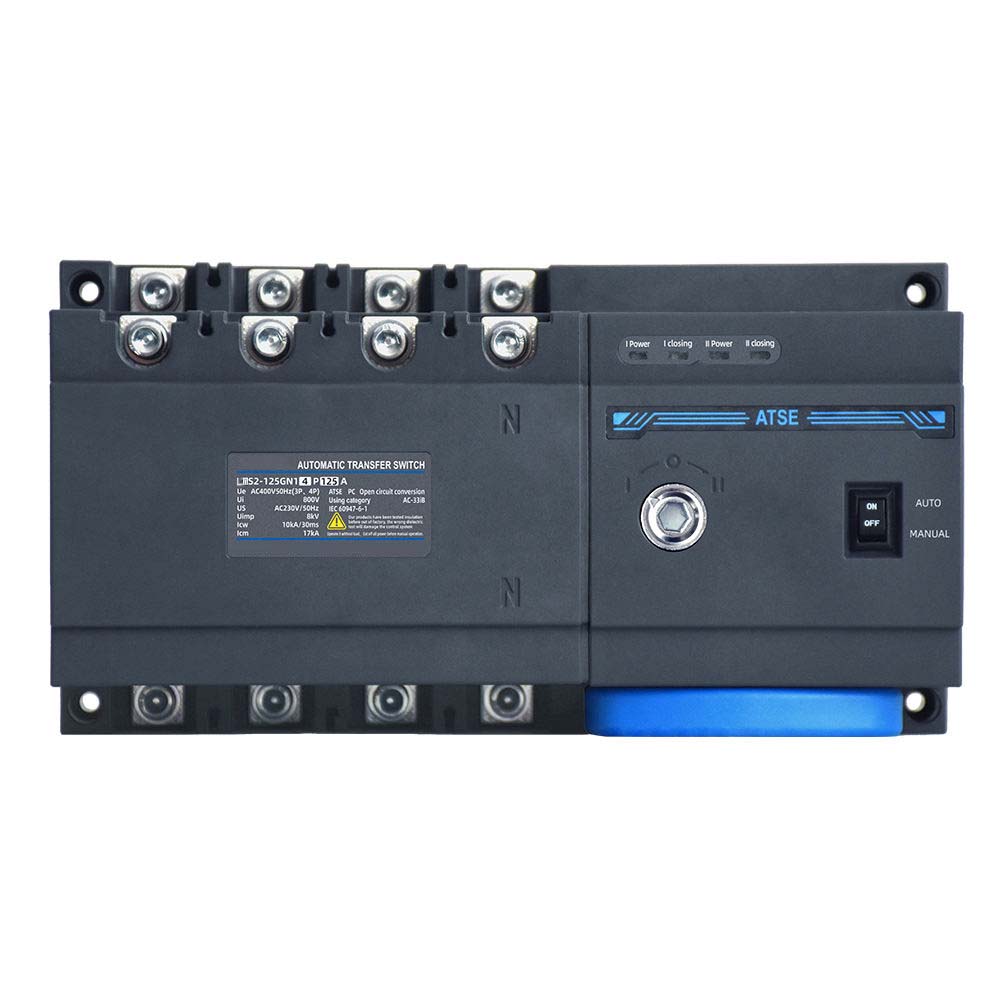

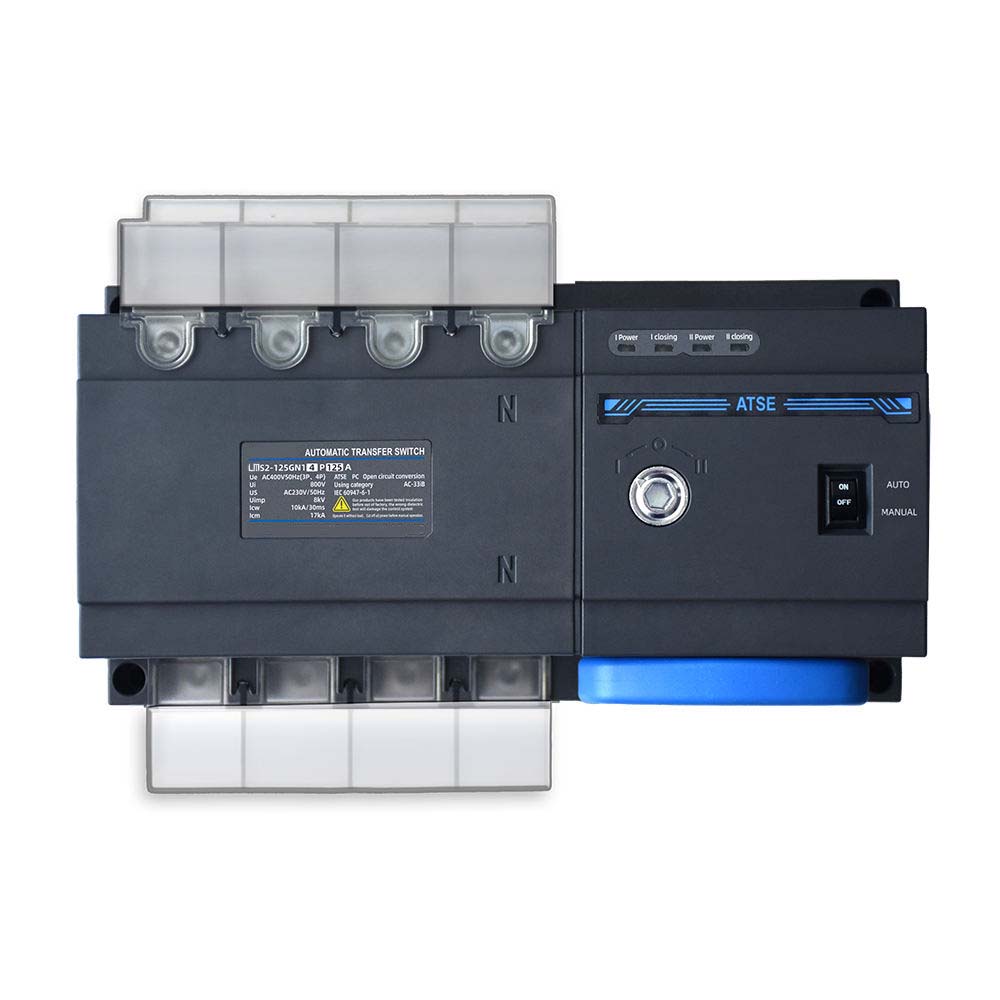

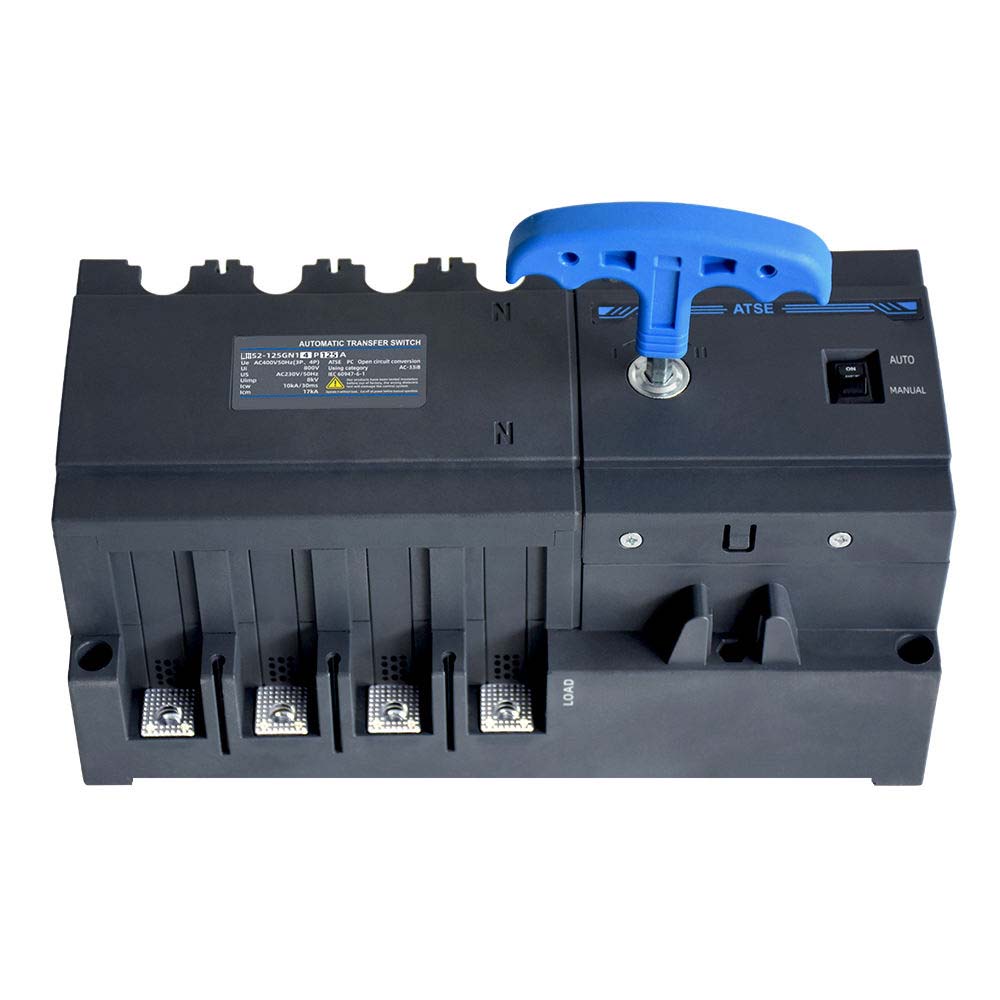

LMS2-125GN1 4P 125A ATS for Generator
LMS2-125GN1 4P 125A ATS for Generator
Model: LMS2-GN1/GA/GA1
Rated current(A):63,125,250,400,800
Rated voltage(V):400V/50Hz
Pole:3P,4P
Transfer time:≤2s
Features:
GN1: Integrated type, functions of under-voltage and phase loss conversion.
GA: Split type, can with a split type controller or remote control
GA1: Economic type
Model: LMS2-GN1/GA/GA1
Rated current(A):63,125,250,400,800
Rated voltage(V):400V/50Hz
Pole:3P,4P
Transfer time:≤2s
Features:
GN1: Integrated type, functions of under-voltage and phase loss conversion.
GA: Split type, can with a split type controller or remote control
GA1: Economic type
1. Product Overview
2. Key Specifications
| Parameter | Details |
|---|---|
| Model | LMS2-GN1/GA/GA1 |
| Poles | 3P / 4P (3-phase + neutral) |
| Rated Current (In) | 63-800A |
| Rated Operational Voltage (Ue) | AC 400V / 50Hz |
| Rated Insulation Voltage (Ui) | 800V |
| Rated Short-Time Withstand Current (Icw) | 10kA / 30ms |
| Rated Short-Circuit Making Capacity (Icm) | 17kA |
| Control Category | AC-33B |
| Switching Class | PC-class (open circuit conversion) |
| Control Modes | Automatic, Manual |
| Indicator Functions | Power status, closing status for both sources |
| Mounting Type | Panel mount (compact DIN-rail compatible form factor) |
| Enclosure Rating | IP20 (front face) |
| Compliance Standards | IEC 60947-6-1, GB/T 14048.11 |
| Operating Temperature | -10°C ~ +60°C |
| Mechanical Life | ≥10,000 operations |
3. Core Features
✅ PC-Class High-Reliability Design: Motorized, mechanically interlocked switching mechanism ensures safe, simultaneous-source prevention and zero-cross switching for critical loads.
✅ Compact Form Factor: Space-saving design suitable for installation in standard distribution panels and ATS cabinets, ideal for limited-space applications.
✅ Auto/Manual Operation: Dedicated switch allows selection between automatic transfer (based on power status) and manual control for maintenance or testing.
✅ Visual Status Indicators: LED indicators show power presence and closing status for both sources, providing at-a-glance system visibility.
✅ Robust Construction: Heavy-duty housing and high-quality contacts ensure reliable performance in demanding commercial and industrial environments.
✅ Fail-Safe Interlock: Mechanical interlock eliminates the risk of cross-connection between the two power sources, ensuring compliance with electrical safety codes.
✅ High Withstand Capacity: 10kA short-time withstand and 17kA short-circuit making capacity ensure stable performance under fault conditions.
✅ Wide Compatibility: Suitable for use with mains, generator, or dual mains power sources, supporting a variety of backup power configurations.
4. Applications
- Small to medium commercial building backup power systems
- Industrial facility critical load protection
- Telecommunications tower and base station power systems
- Retail and office building emergency power
- Generator rental and portable power units
- Remote site and off-grid power systems
5. Why Choose LVMA LMS2 ATS?
- PC-Class Reliability: Motorized, interlocked switching mechanism provides the highest level of safety and performance for critical load applications.
- Compact & Space-Saving: Compact design minimizes panel space usage, making it ideal for installations with limited room.
- Simple Operation: Clear auto/manual switch and status indicators simplify setup, operation, and maintenance.
- Fail-Safe Design: Mechanical interlock ensures only one power source is connected at a time, eliminating cross-connection risks.
- Robust Performance: High short-circuit withstand capacity and durable construction ensure long-term reliability in demanding environments.
- Cost-Effective Solution: Compact, integrated design offers high performance at a competitive price point for small to medium ATS applications.
6. Technical Documents & Support
- Download the full datasheet for detailed specifications, wiring diagrams, and installation instructions.
- Contact our engineering team for custom current ratings or OEM solutions for large-scale ATS projects.
- Request a quote with your project details for bulk pricing, lead times, and compliance certifications.
