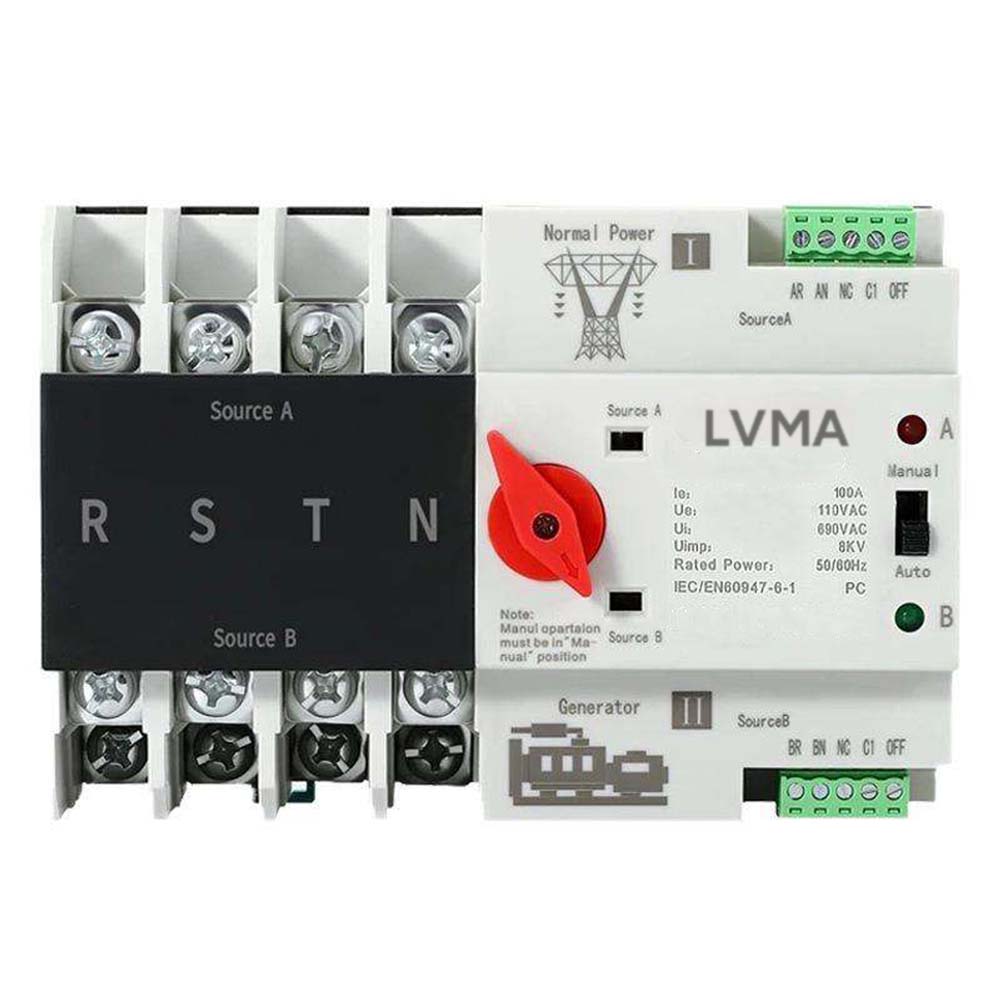

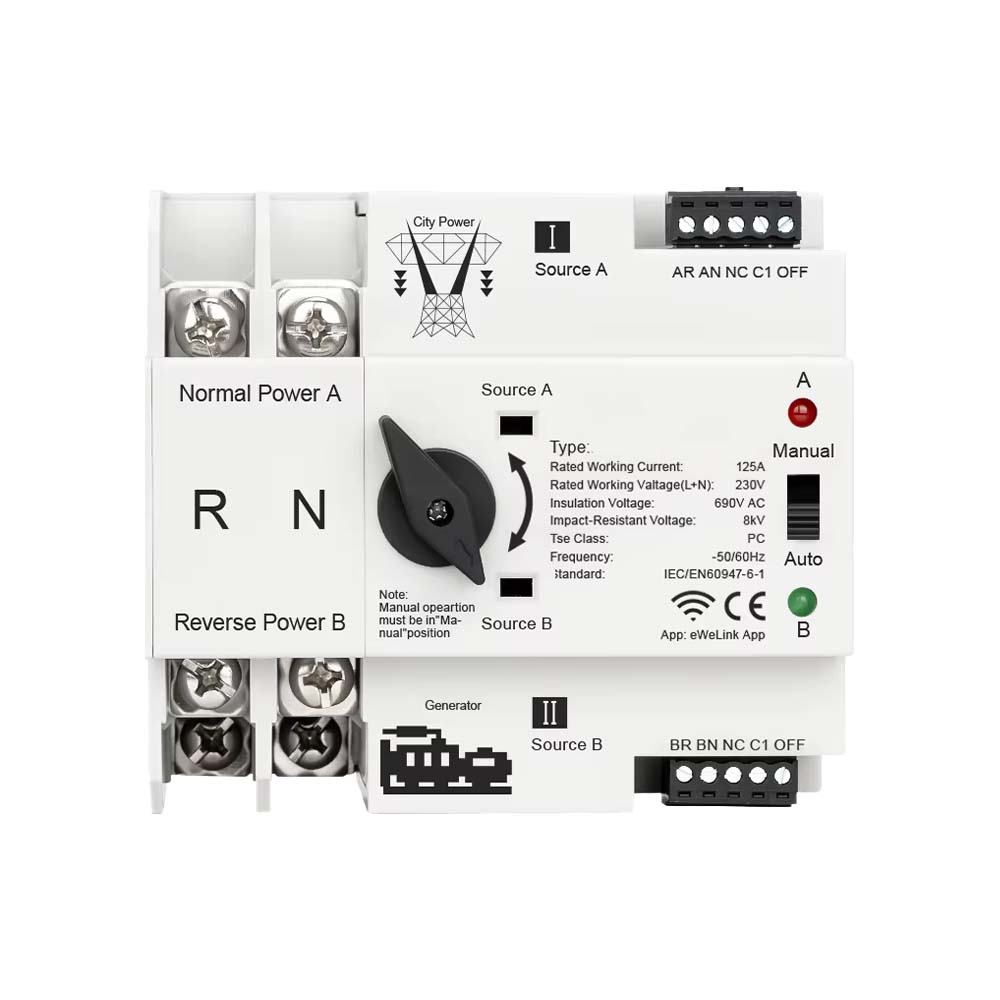

LMQ4-125X Automatic transfer switch
LMQ4-125X Automatic transfer switch
Product Type: Automatic Transfer Switch
Model: LMQ4-125X
Rated Voltage: AC400V
Coil Voltage: AC230V
Insulation Voltage: AC690V
Class: PC
Number of Poles: 2P, 3P, 4P
Electrical Life: 2000 Operations
Mechanical Life: 10,000 Operations
Rated Short-Circuit Current: 50kA
Rated Impulse Withstand Voltage: 8kV
Transfer Time: <50ms
Reset Time: <50ms
Closing Time: <50ms
Product Type: Automatic Transfer Switch
Model: LMQ4-125X
Rated Voltage: AC400V
Coil Voltage: AC230V
Insulation Voltage: AC690V
Class: PC
Number of Poles: 2P, 3P, 4P
Electrical Life: 2000 Operations
Mechanical Life: 10,000 Operations
Rated Short-Circuit Current: 50kA
Rated Impulse Withstand Voltage: 8kV
Transfer Time: <50ms
Reset Time: <50ms
Closing Time: <50ms
Function:
1. Automatic Transfer: When the normal power supply fails, the switch automatically switches to standby power, ensuring immediate operation.
2. Continuous Power Supply: This switch can be switched in milliseconds without interruption, ensuring continuous, reliable, and safe power supply.
3. Robust Construction: This automatic transfer switch features a robust structure, reliable conversion, convenient installation and maintenance, and a long service life.
4. Premium Material: Silver contact improves the conductivity and service life of the switch, and the flame-retardant PC shell has good insulation, high temperature resistance, and anti-aging properties.
5. Wide Application: This switch can be widely used in various places where continuous power outages are not permitted, such as factories, shopping malls, nurseries, etc.
Function:
1. Automatic Transfer: When the normal power supply fails, the switch automatically switches to standby power, ensuring immediate operation.
2. Continuous Power Supply: This switch can be switched in milliseconds without interruption, ensuring continuous, reliable, and safe power supply.
3. Robust Construction: This automatic transfer switch features a robust structure, reliable conversion, convenient installation and maintenance, and a long service life.
4. Premium Material: Silver contact improves the conductivity and service life of the switch, and the flame-retardant PC shell has good insulation, high temperature resistance, and anti-aging properties.
5. Wide Application: This switch can be widely used in various places where continuous power outages are not permitted, such as factories, shopping malls, nurseries, etc.
