LA38 Push Button Switch | 22mm Momentary/Latching
LA38 Push Button Switch | 22mm Momentary/Latching
The LA38 Series 22mm Push Button Switches are heavy-duty industrial control components designed for reliable operation in automation systems. Available in momentary/latching, LED-illuminated, emergency stop, and selector switch variants, these switches feature 1NO1NC contact configuration, fast response, and customizable symbols. With IP65-rated protection and 22mm panel mount design, they are ideal for control panels, machinery, and equipment across industrial, commercial, and residential applications.
The LA38 Series 22mm Push Button Switches are heavy-duty industrial control components designed for reliable operation in automation systems. Available in momentary/latching, LED-illuminated, emergency stop, and selector switch variants, these switches feature 1NO1NC contact configuration, fast response, and customizable symbols. With IP65-rated protection and 22mm panel mount design, they are ideal for control panels, machinery, and equipment across industrial, commercial, and residential applications.
1. Product Overview

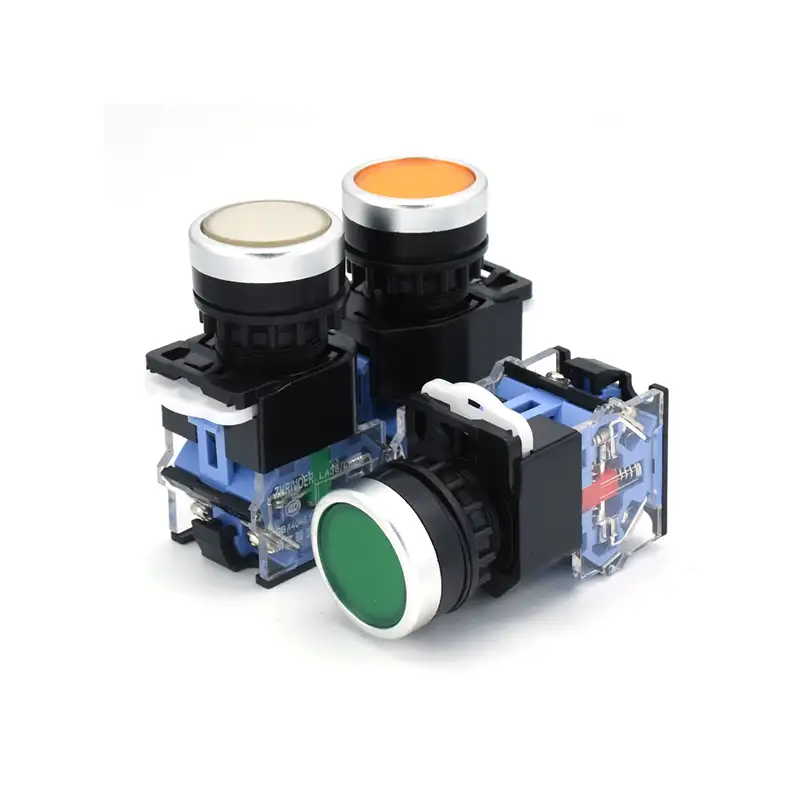

The LA38 Series Push Button Switches are premium industrial control components engineered for reliable, long-lasting performance in automation, machinery, and electrical control systems. Designed for 22mm panel mounting, these switches offer versatile configurations including momentary/latching, LED-illuminated, emergency stop, and selector types, with customizable symbols and 1NO1NC contact options to meet diverse application needs. Built to withstand harsh industrial environments, the LA38 series ensures precise control, safety, and durability for every project.
2. Core Product Features

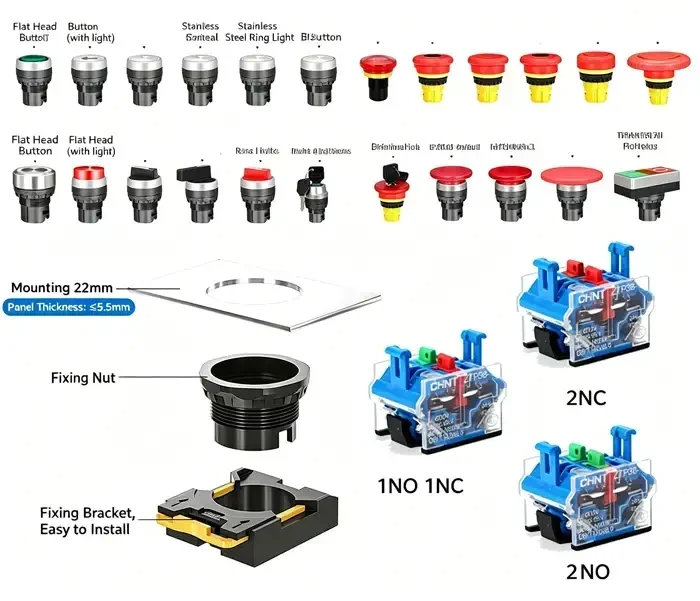

1. Versatile Configurations for Every Application
- Momentary (Self-Reset): Spring-loaded design for temporary control signals (e.g., start/stop, jog functions)
- Latching (Self-Locking): Maintains position until manually reset, ideal for continuous control states
- LED-Illuminated: Transparent/colored lens with built-in LED for clear status indication (green/red available)
- Emergency Stop: Twist-to-release mushroom head design for quick, fail-safe shutdown in emergencies
- Selector Switches: 2/3-position rotary switches for mode selection (manual/auto, run/stop)
- Custom Symbols: Printable or laser-etched symbols (arrows, text, icons) for intuitive operation
2. Reliable Electrical Performance
- Contact Configuration: Standard 1NO1NC (1 Normally Open + 1 Normally Closed) contacts for flexible circuit integration
- High Sensitivity Contacts: Silver alloy contacts ensure low contact resistance, fast response, and stable conductivity
- Wide Compatibility: Rated for 250V AC / 30V DC, supporting most low-voltage control circuits
- Long Mechanical Life: Over 1,000,000 operations for momentary switches; 500,000 operations for latching/emergency stop types
3. Robust Industrial-Grade Construction
- 22mm Standard Panel Mount: Universal hole size compatible with standard control panels worldwide
- IP65 Protection Rating: Dust-tight and water-resistant housing, suitable for indoor/outdoor industrial environments
- Durable Housing: High-grade flame-retardant plastic and metal components resist impact, heat, and aging
- Vibration-Resistant Design: Secure locking mechanism prevents accidental actuation in high-vibration environments
4. User-Friendly Installation & Operation
- Quick Wiring: Screw-type terminals for secure, reliable wire connections (supports copper conductors)
- Tool-Less Assembly: Modular design allows quick replacement of contacts, lenses, and buttons
- Ergonomic Operation: Smooth tactile feedback and clear visual cues reduce operator error
- Compact Footprint: Space-saving design optimizes panel layout for multi-switch setups
3. Key Advantages Over Competitors
| Feature | LA38 Series Push Buttons | Generic Budget Switches | Mid-Range Competitor Switches |
|---|---|---|---|
| Contact Material | Silver alloy (low resistance) | Copper alloy (prone to oxidation) | Silver-plated copper (moderate performance) |
| Mechanical Life | 1,000,000+ operations | <300,000 operations | 500,000+ operations |
| Protection Rating | IP65-rated (dust/waterproof) | No IP rating (open housing) | IP40-rated (limited protection) |
| Customization | Custom symbols/colors/LED options | Limited to basic colors | Standard symbols only |
| Contact Configuration | 1NO1NC standard | NO-only/NC-only (limited) | 1NO or 1NC options |
| Housing Durability | Flame-retardant, impact-resistant plastic | Low-grade plastic (prone to cracking) | Standard plastic housing |
4. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LA38 Series |
| Panel Mount Hole | 22mm (standard) |
| Contact Configuration | 1NO1NC (1 Normally Open + 1 Normally Closed) |
| Rated Voltage | 250V AC / 30V DC |
| Rated Current | 5A (AC-15) / 3A (DC-13) |
| Protection Rating | IP65 (front panel) |
| Mechanical Life | ≥1,000,000 operations (momentary) / ≥500,000 operations (latching/emergency stop) |
| Operating Temperature | -25°C to +55°C |
| Housing Material | Flame-retardant engineering plastic + metal frame |
| Terminal Type | Screw-type (for copper conductors) |
| LED Voltage Options | 12V/24V/220V (customizable) |
5. Typical Applications
- Industrial machinery control panels (start/stop, mode selection)
- Automation equipment and PLC control systems
- Manufacturing line safety controls (emergency stop)
- Commercial equipment (elevators, HVAC, vending machines)
- Residential control systems (lighting, garage doors, security panels)
- Marine and outdoor equipment (IP65-rated models)
6. Frequently Asked Questions (FAQ)
1. What is the difference between momentary and latching LA38 switches?
- Momentary (Self-Reset): Returns to the default state when released, used for temporary signals (e.g., start buttons).
- Latching (Self-Locking): Stays in the pressed position until manually reset, used for continuous control (e.g., power switches).
2. Can I customize the symbols or colors on the LA38 switches?
Yes! We offer customizable symbols (arrows, text, icons) and colors (red/green/black/yellow) for both illuminated and non-illuminated models to match your equipment’s requirements.
3. Are the LA38 switches waterproof and dustproof?
Yes. The LA38 series features an IP65-rated front panel, making it dust-tight and resistant to water splashes. It is suitable for use in industrial environments, outdoor equipment, and washdown areas.
4. What does “1NO1NC” mean, and is it standard for all models?
“1NO1NC” means each switch has one Normally Open (NO) and one Normally Closed (NC) contact, allowing flexible circuit integration (e.g., sending signals to both start and stop circuits simultaneously). This configuration is standard for most LA38 models.
5. What LED voltage options are available for illuminated LA38 switches?
We offer LED options for 12V, 24V, and 220V, compatible with most common control system voltages. Custom LED colors (red/green/amber/blue) are also available upon request.
6. How do I install the LA38 push button switch?
Installation is simple:
- Drill a 22mm hole in the control panel.
- Insert the switch body from the front.
- Secure it with the included mounting nut.
- Wire the NO/NC contacts to your control circuit using the screw terminals.
7. Are the emergency stop LA38 switches compliant with safety standards?
Our emergency stop switches feature a twist-to-release mushroom head design, meeting basic safety requirements for quick shutdown. They are suitable for integration into safety circuits, though we recommend combining them with certified safety relays for critical applications.
8. Technical documentation and support
Download the full datasheet for detailed specifications, wiring diagrams and trip coordination guides.
Please contact our technical team for custom configuration or OEM/ODM solutions for your project.
Request a quote with details about your project for volume pricing, lead times, and compliance certifications.
