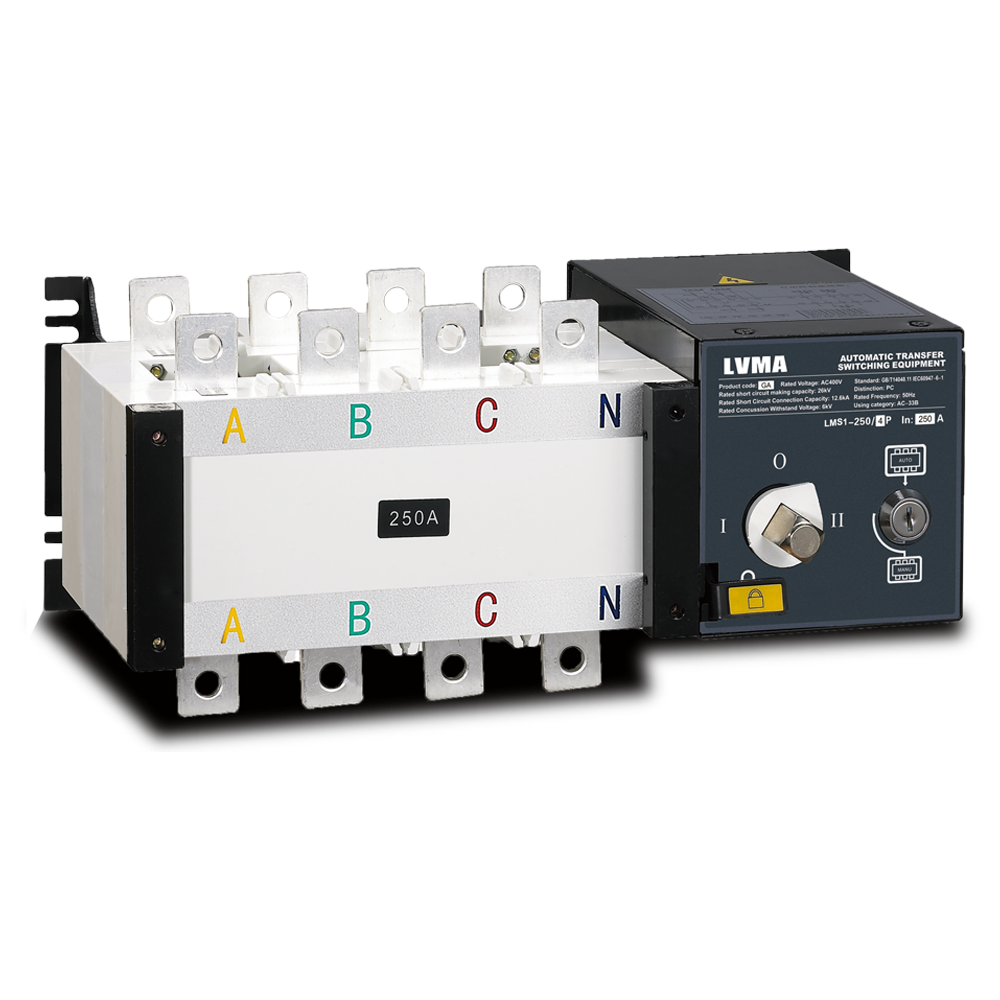

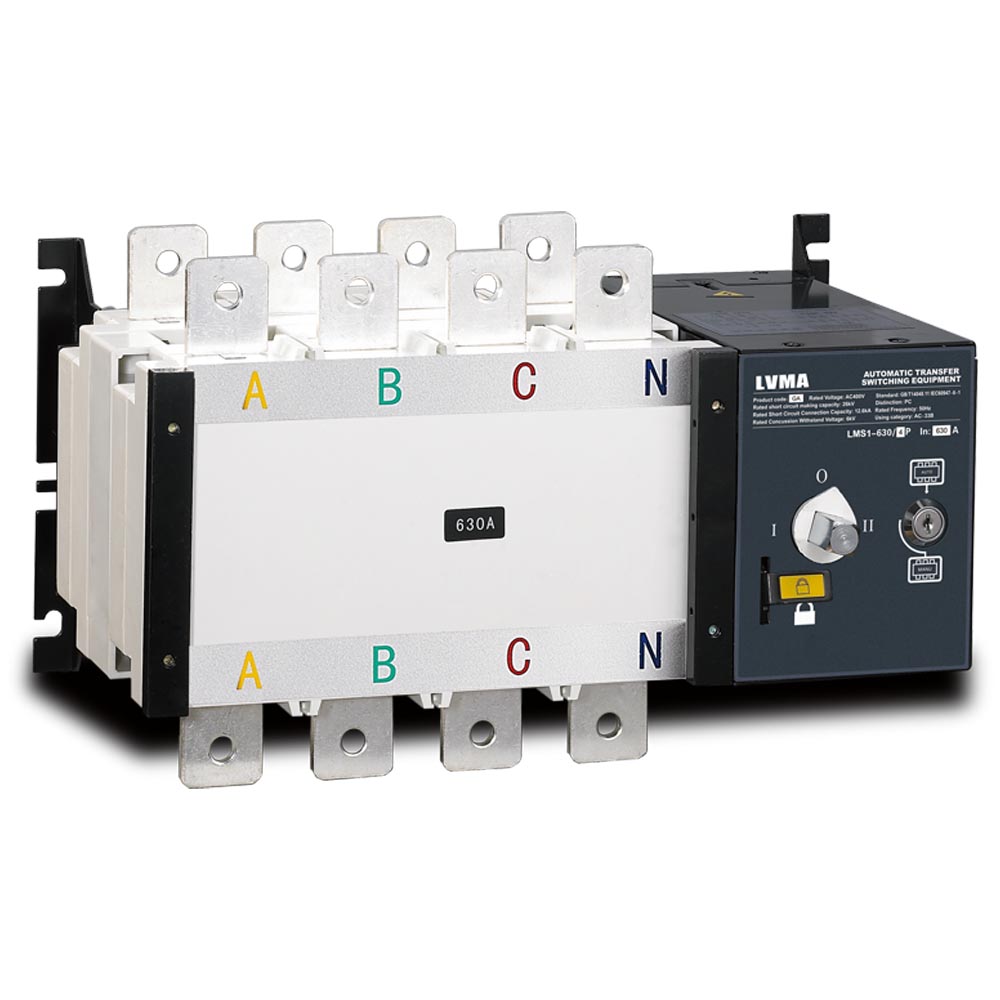

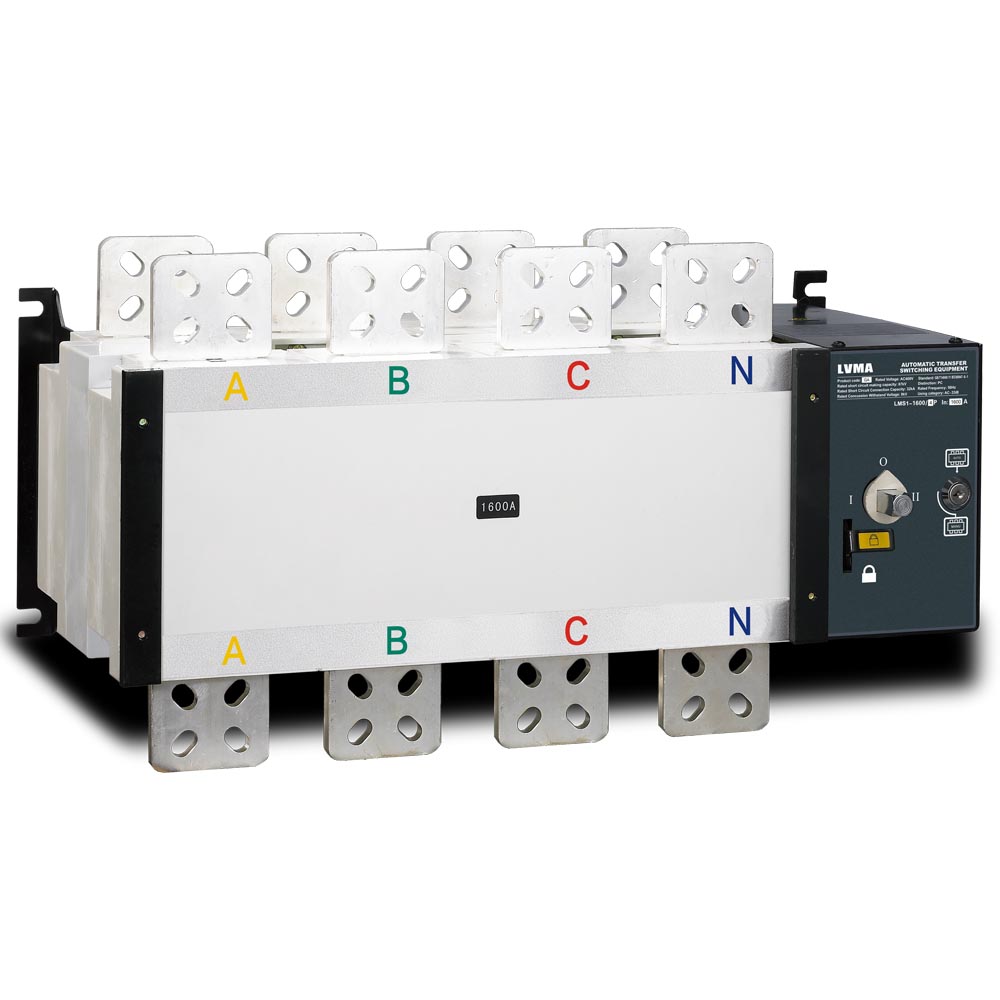

LMS1-GA Automatic Transfer Switch(ATS) 100-3200A Motor
LMS1-GA Automatic Transfer Switch(ATS) 100-3200A Motor
model:LMS1-GA
Rated current:16~3200A
Frame size:100、160、250、630、1600、3200
Rated voltage: AC400V 50Hz
Rated control voltage:AC230V
Rated insulation voltage:690V、800V、1000V
Rated impulse withstand voltage:8kV、12kV
Transfer time:＜2.5s
model:LMS1-GA
Rated current:16~3200A
Frame size:100、160、250、630、1600、3200
Rated voltage: AC400V 50Hz
Rated control voltage:AC230V
Rated insulation voltage:690V、800V、1000V
Rated impulse withstand voltage:8kV、12kV
Transfer time:＜2.5s
1. Product Overview
2. Key Specifications
| Parameter | Details |
|---|---|
| Model | LMS1-100/4P |
| Poles | 3P / 4P (3-phase + neutral) |
| Rated Current (In) | 100-3200A |
| Rated Operational Voltage (Ue) | AC 400V / 50Hz |
| Rated Insulation Voltage (Ui) | 800V |
| Rated Impulse Withstand Voltage | 6kV |
| Switching Class | PC-class (open circuit conversion) |
| Control Modes | Automatic, Manual (with key lock for manual mode) |
| Operating Category | AC-33B |
| Mounting Type | Panel mount (compact form factor) |
| Enclosure Rating | IP20 (front face) |
| Compliance Standards | IEC 60947-6-1, GB/T 14048.11 |
| Operating Temperature | -10°C ~ +60°C |
| Mechanical Life | ≥10,000 operations |
3. Core Features
✅ PC-Class High-Reliability Design: Motorized, mechanically interlocked switching mechanism ensures safe, simultaneous-source prevention and zero-cross switching for critical loads.
✅ Key-Lock Safety Function: Manual mode is secured with a key lock, preventing unauthorized operation and ensuring safety during maintenance procedures.
✅ Compact Form Factor: Space-saving design suitable for installation in standard distribution panels and ATS cabinets, ideal for limited-space applications.
✅ Auto/Manual Operation: Selectable automatic transfer (based on power status) and manual control (key-locked) for maintenance or testing.
✅ Fail-Safe Interlock: Mechanical interlock eliminates the risk of cross-connection between the two power sources, ensuring compliance with electrical safety codes.
✅ High Withstand Capacity: 8kA short-circuit making and 5kA short-circuit connection capacity ensure stable performance under fault conditions.
✅ Robust Construction: Heavy-duty housing and high-quality contacts ensure reliable performance in demanding commercial and industrial environments.
✅ Clear Phase Markings: Color-coded phase terminals (A/B/C/N) simplify wiring and installation, reducing the risk of errors.
4. Applications
- Small to medium commercial building backup power systems
- Industrial facility critical load protection
- Telecommunications tower and base station power systems
- Retail and office building emergency power
- Generator rental and portable power units
- Remote site and off-grid power systems
5. Why Choose LVMA LMS1-100GA/4P ATS?
- PC-Class Reliability: Motorized, interlocked switching mechanism provides the highest level of safety and performance for critical load applications.
- Enhanced Safety with Key Lock: Key-locked manual mode prevents unauthorized operation, adding an extra layer of safety for maintenance.
- Compact & Space-Saving: Compact design minimizes panel space usage, making it ideal for installations with limited room.
- Simple Installation & Operation: Clear phase markings and intuitive controls simplify wiring, setup, and maintenance.
- Fail-Safe Design: Mechanical interlock ensures only one power source is connected at a time, eliminating cross-connection risks.
- Cost-Effective Solution: Compact, integrated design offers high performance at a competitive price point for small to medium ATS applications.
6. Technical Documents & Support
- Download the full datasheet for detailed specifications, wiring diagrams, and installation instructions.
- Contact our engineering team for custom current ratings or OEM solutions for large-scale ATS projects.
- Request a quote with your project details for bulk pricing, lead times, and compliance certifications.
1. Product Overview
2. Key Specifications
| Parameter | Details |
|---|---|
| Model | LMS1-100/4P |
| Poles | 3P / 4P (3-phase + neutral) |
| Rated Current (In) | 100-3200A |
| Rated Operational Voltage (Ue) | AC 400V / 50Hz |
| Rated Insulation Voltage (Ui) | 800V |
| Rated Impulse Withstand Voltage | 6kV |
| Switching Class | PC-class (open circuit conversion) |
| Control Modes | Automatic, Manual (with key lock for manual mode) |
| Operating Category | AC-33B |
| Mounting Type | Panel mount (compact form factor) |
| Enclosure Rating | IP20 (front face) |
| Compliance Standards | IEC 60947-6-1, GB/T 14048.11 |
| Operating Temperature | -10°C ~ +60°C |
| Mechanical Life | ≥10,000 operations |
3. Core Features
✅ PC-Class High-Reliability Design: Motorized, mechanically interlocked switching mechanism ensures safe, simultaneous-source prevention and zero-cross switching for critical loads.
✅ Key-Lock Safety Function: Manual mode is secured with a key lock, preventing unauthorized operation and ensuring safety during maintenance procedures.
✅ Compact Form Factor: Space-saving design suitable for installation in standard distribution panels and ATS cabinets, ideal for limited-space applications.
✅ Auto/Manual Operation: Selectable automatic transfer (based on power status) and manual control (key-locked) for maintenance or testing.
✅ Fail-Safe Interlock: Mechanical interlock eliminates the risk of cross-connection between the two power sources, ensuring compliance with electrical safety codes.
✅ High Withstand Capacity: 8kA short-circuit making and 5kA short-circuit connection capacity ensure stable performance under fault conditions.
✅ Robust Construction: Heavy-duty housing and high-quality contacts ensure reliable performance in demanding commercial and industrial environments.
✅ Clear Phase Markings: Color-coded phase terminals (A/B/C/N) simplify wiring and installation, reducing the risk of errors.
4. Applications
- Small to medium commercial building backup power systems
- Industrial facility critical load protection
- Telecommunications tower and base station power systems
- Retail and office building emergency power
- Generator rental and portable power units
- Remote site and off-grid power systems
5. Why Choose LVMA LMS1-100GA/4P ATS?
- PC-Class Reliability: Motorized, interlocked switching mechanism provides the highest level of safety and performance for critical load applications.
- Enhanced Safety with Key Lock: Key-locked manual mode prevents unauthorized operation, adding an extra layer of safety for maintenance.
- Compact & Space-Saving: Compact design minimizes panel space usage, making it ideal for installations with limited room.
- Simple Installation & Operation: Clear phase markings and intuitive controls simplify wiring, setup, and maintenance.
- Fail-Safe Design: Mechanical interlock ensures only one power source is connected at a time, eliminating cross-connection risks.
- Cost-Effective Solution: Compact, integrated design offers high performance at a competitive price point for small to medium ATS applications.
6. Technical Documents & Support
- Download the full datasheet for detailed specifications, wiring diagrams, and installation instructions.
- Contact our engineering team for custom current ratings or OEM solutions for large-scale ATS projects.
- Request a quote with your project details for bulk pricing, lead times, and compliance certifications.
