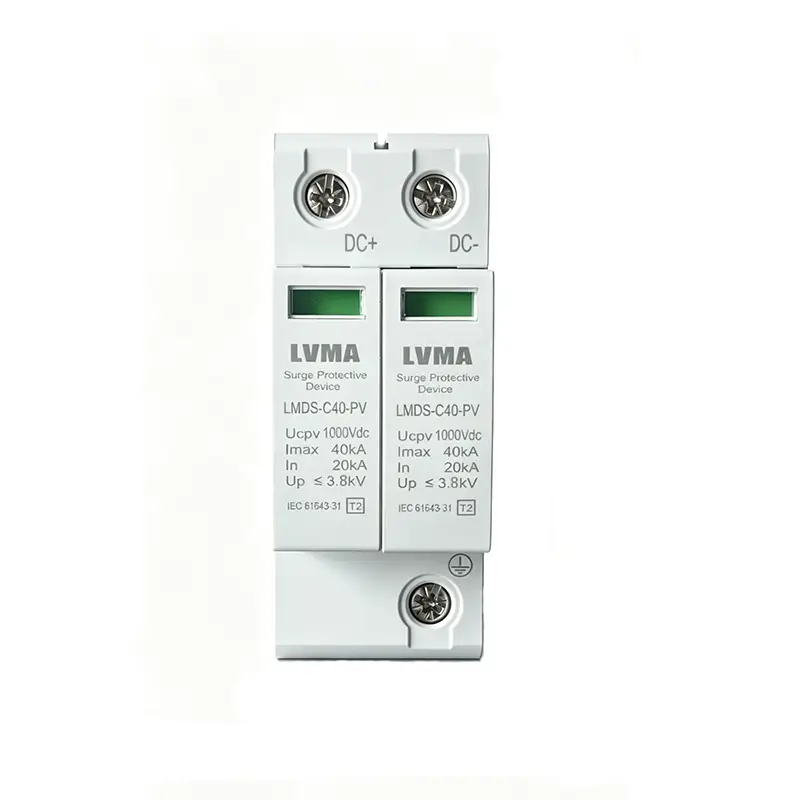

LMDS‑C40‑PV 1000Vdc 2P PV Surge Protective Device
LMDS‑C40‑PV 1000Vdc 2P PV Surge Protective Device
LMDS‑C40‑PV 1000Vdc is Type‑2 DC surge protective device for 1000V photovoltaic systems. 2‑pole DIN‑rail design with nominal discharge current In 20kA, maximum discharge current Imax 40kA, compliant with IEC 61643‑31. Visual status indicator window shows working condition. Installed inside PV combiner boxes to shield solar inverters and DC components from lightning surges and transient over‑voltage. Modular plug‑gable cartridges for easy on‑site replacement. Support bulk procurement, OEM branding and custom project solutions for solar integrators and cabinet manufacturers.
LMDS‑C40‑PV 1000Vdc is Type‑2 DC surge protective device for 1000V photovoltaic systems. 2‑pole DIN‑rail design with nominal discharge current In 20kA, maximum discharge current Imax 40kA, compliant with IEC 61643‑31. Visual status indicator window shows working condition. Installed inside PV combiner boxes to shield solar inverters and DC components from lightning surges and transient over‑voltage. Modular plug‑gable cartridges for easy on‑site replacement. Support bulk procurement, OEM branding and custom project solutions for solar integrators and cabinet manufacturers.
Product Overview
Key Product Features
✅ Optimized for 1000Vdc Photovoltaic DC System
Special DC voltage‑withstand design, stable long‑term operation under 1000Vdc PV working voltage, effectively reduce thermal runaway risk.
✅ T2 Surge Capacity: In 20kA, Imax 40kA
Powerful surge‑discharge capacity, reliably suppress lightning‑caused transient over‑voltage on solar DC loops.
✅ 2‑Pole Structure for DC+ and DC‑
Independent protection for positive and negative DC lines, provides complete surge protection for photovoltaic DC circuit.
✅ Plug‑In Modular Replaceable Cartridge
Faulty module can be directly pulled out and replaced without removing base block, simplifies field maintenance and lowers spare‑part cost.
✅ Visual Status Indicator Window
Green window for normal operation; color‑changed window alerts module failure, quick status check without power‑off testing.
✅ Standard 35 mm DIN‑Rail Mounting
Direct fit for standard DIN rail inside solar combiner boxes and distribution cabinets, compact and space‑saving.
✅ Compliant with IEC 61643‑31 Standard
Passes full type test, CE marked, qualified for global 1000V photovoltaic project applications.
Technical Specifications
| Item | Parameter |
|---|---|
| Model | LMDS‑C40‑PV |
| Type | T2 Class Surge Protective Device |
| Poles | 2P (DC+, DC‑) |
| Maximum Continuous PV Voltage Ucpv | 1000 Vdc |
| Nominal Discharge Current In | 20 kA (8/20μs) |
| Maximum Discharge Current Imax | 40 kA (8/20μs) |
| Voltage Protection Level Up | ≤3.8 kV |
| Standard | IEC 61643‑31 |
| Mounting | 35 mm DIN‑rail |
| Indicator | Visual status window (Green‑normal, fault‑alert) |
| Feature | Plug‑in replaceable protection module |
| Application | PV combiner box, 1000Vdc solar DC side surge protection |
Application Scenarios
‑ Rooftop residential & commercial 1000Vdc photovoltaic power systems
‑ On‑grid solar power plant DC combiner boxes
‑ Distributed PV project DC‑side over‑voltage protection
‑ Solar inverter front‑end lightning surge protection
‑ New‑energy DC distribution cabinets for 1000V photovoltaic projects
Our Advantages
PV‑dedicated 1000Vdc SPD design
Tailored for long‑term 1000Vdc photovoltaic working conditions, avoid premature aging and thermal hazards caused by misusing AC‑type SPD on DC side.
Modular quick‑replace cartridge
Only replace damaged plug‑in module instead of whole unit, reduce maintenance cost for solar field sites.
Intuitive visual fault indication
Field technicians can judge SPD health status at a glance without measuring instruments.
Strict finished‑product validation
Each batch undergoes surge current test and DC voltage aging test before shipment to guarantee stability for outdoor solar projects.
Complete technical documentation support
Provide dimension drawings, wiring diagrams and datasheets for solar project design and tender bidding. Fast overseas technical support.
Custom Solution
We provide project‑oriented custom solutions for LMDS‑C40‑PV 1000Vdc PV surge protective device:
‑ OEM Brand Customization: Custom silk‑screen logo and model marking on modules for distributor branded resale.
‑ Project‑adapted variants: Develop higher‑voltage or different‑capacity DC SPD models for special PV system requirements.
‑ Export‑grade custom packing: Neutral carton or customer‑branded carton for sea‑shipping export.
‑ Project‑level technical service: Supply CAD drawings, test reports and datasheets for solar project certification and bidding documents.
‑ Large‑volume priority production: Priority production scheduling for solar integrator bulk orders.
Please inform your PV system DC voltage and required surge capacity, our engineers will confirm suitable SPD solution for you within 24 working hours.
FAQ
Q1: What is LMDS‑C40‑PV 1000Vdc SPD used for?
Q2: What does the indicator window mean?
Q3: Can AC‑type SPD replace PV‑DC SPD?
Q4: Is this unit DIN‑rail mountable?
Q5: Can I replace only the failed module?
Q6: Do you support OEM private‑label service for distributors?
Q7: What technical documents can you provide?
Product Overview
Key Product Features
✅ Optimized for 1000Vdc Photovoltaic DC System
Special DC voltage‑withstand design, stable long‑term operation under 1000Vdc PV working voltage, effectively reduce thermal runaway risk.
✅ T2 Surge Capacity: In 20kA, Imax 40kA
Powerful surge‑discharge capacity, reliably suppress lightning‑caused transient over‑voltage on solar DC loops.
✅ 2‑Pole Structure for DC+ and DC‑
Independent protection for positive and negative DC lines, provides complete surge protection for photovoltaic DC circuit.
✅ Plug‑In Modular Replaceable Cartridge
Faulty module can be directly pulled out and replaced without removing base block, simplifies field maintenance and lowers spare‑part cost.
✅ Visual Status Indicator Window
Green window for normal operation; color‑changed window alerts module failure, quick status check without power‑off testing.
✅ Standard 35 mm DIN‑Rail Mounting
Direct fit for standard DIN rail inside solar combiner boxes and distribution cabinets, compact and space‑saving.
✅ Compliant with IEC 61643‑31 Standard
Passes full type test, CE marked, qualified for global 1000V photovoltaic project applications.
Technical Specifications
| Item | Parameter |
|---|---|
| Model | LMDS‑C40‑PV |
| Type | T2 Class Surge Protective Device |
| Poles | 2P (DC+, DC‑) |
| Maximum Continuous PV Voltage Ucpv | 1000 Vdc |
| Nominal Discharge Current In | 20 kA (8/20μs) |
| Maximum Discharge Current Imax | 40 kA (8/20μs) |
| Voltage Protection Level Up | ≤3.8 kV |
| Standard | IEC 61643‑31 |
| Mounting | 35 mm DIN‑rail |
| Indicator | Visual status window (Green‑normal, fault‑alert) |
| Feature | Plug‑in replaceable protection module |
| Application | PV combiner box, 1000Vdc solar DC side surge protection |
Application Scenarios
‑ Rooftop residential & commercial 1000Vdc photovoltaic power systems
‑ On‑grid solar power plant DC combiner boxes
‑ Distributed PV project DC‑side over‑voltage protection
‑ Solar inverter front‑end lightning surge protection
‑ New‑energy DC distribution cabinets for 1000V photovoltaic projects
Our Advantages
PV‑dedicated 1000Vdc SPD design
Tailored for long‑term 1000Vdc photovoltaic working conditions, avoid premature aging and thermal hazards caused by misusing AC‑type SPD on DC side.
Modular quick‑replace cartridge
Only replace damaged plug‑in module instead of whole unit, reduce maintenance cost for solar field sites.
Intuitive visual fault indication
Field technicians can judge SPD health status at a glance without measuring instruments.
Strict finished‑product validation
Each batch undergoes surge current test and DC voltage aging test before shipment to guarantee stability for outdoor solar projects.
Complete technical documentation support
Provide dimension drawings, wiring diagrams and datasheets for solar project design and tender bidding. Fast overseas technical support.
Custom Solution
We provide project‑oriented custom solutions for LMDS‑C40‑PV 1000Vdc PV surge protective device:
‑ OEM Brand Customization: Custom silk‑screen logo and model marking on modules for distributor branded resale.
‑ Project‑adapted variants: Develop higher‑voltage or different‑capacity DC SPD models for special PV system requirements.
‑ Export‑grade custom packing: Neutral carton or customer‑branded carton for sea‑shipping export.
‑ Project‑level technical service: Supply CAD drawings, test reports and datasheets for solar project certification and bidding documents.
‑ Large‑volume priority production: Priority production scheduling for solar integrator bulk orders.
Please inform your PV system DC voltage and required surge capacity, our engineers will confirm suitable SPD solution for you within 24 working hours.
FAQ
Q1: What is LMDS‑C40‑PV 1000Vdc SPD used for?
Q2: What does the indicator window mean?
Q3: Can AC‑type SPD replace PV‑DC SPD?
Q4: Is this unit DIN‑rail mountable?
Q5: Can I replace only the failed module?
Q6: Do you support OEM private‑label service for distributors?
Q7: What technical documents can you provide?
