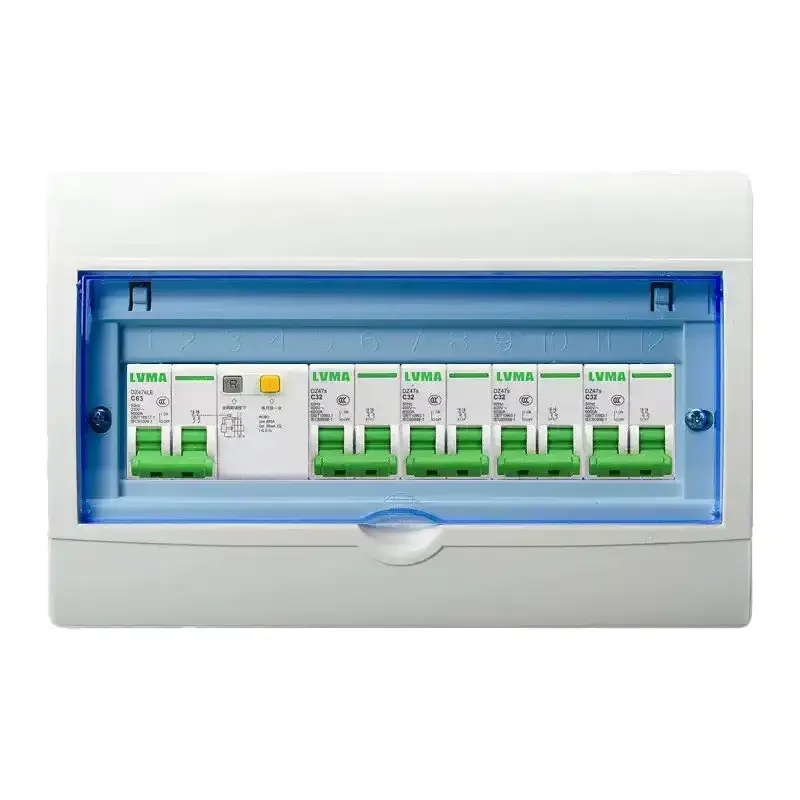

Lighting Distribution Box | Commercial & Residential Electrical Panel Board
Lighting Distribution Box | Commercial & Residential Electrical Panel Board
Our lighting distribution box is a professional low-voltage electrical panel for centralized lighting circuit management. Adopting high-strength insulated material and standard internal layout, it effectively distributes power, protects circuits from overload and short circuit, and guarantees safe operation of indoor and outdoor lighting systems. Suitable for homes, offices, malls, factories and various engineering projects.
Our lighting distribution box is a professional low-voltage electrical panel for centralized lighting circuit management. Adopting high-strength insulated material and standard internal layout, it effectively distributes power, protects circuits from overload and short circuit, and guarantees safe operation of indoor and outdoor lighting systems. Suitable for homes, offices, malls, factories and various engineering projects.
1. Product Overview
Our LVMA distribution boxes (also known as consumer units or electrical panels) are factory-assembled solutions that combine high-quality LVMA circuit breakers with durable enclosures. Designed for AC 230V/400V, 50/60Hz single-phase electrical systems, these units provide safe, organized distribution and protection for household and light commercial circuits. Available in multiple circuit configurations (4-circuit, 8-circuit, 12-circuit, 16-circuit) and both surface-mount and flush-mount installation options, they meet global safety standards for reliable power distribution.
2. Key Features
- Genuine LVMA Circuit Breakers: Pre-installed LVMA MCBs (Miniature Circuit Breakers) provide fast-acting protection against overloads and short circuits, ensuring safety and easy resetting.
- Dual Installation Options: Supports both surface-mount and flush-mount installation to fit different wall types and aesthetic preferences.
- Durable Enclosure: Constructed with a rust-resistant metal base (cold-rolled steel) for structural stability and a high-impact plastic cover (fire-retardant, transparent smoke gray) for safety and visibility.
- Modular DIN Rail Design: Standard DIN rail mounting allows for flexible expansion and compatibility with standard electrical accessories.
- User-Friendly Design: Clear wiring space, removable front cover, and circuit identification labels simplify installation and maintenance.
- Wide Application: Ideal for homes, apartments, offices, retail spaces, and small workshops.
3. Specifications
| Parameter | Details |
|---|---|
| Brand | LVMA |
| Rated Voltage | 230V/400V AC, 50/60Hz |
| Rated Current | Up to 100A (Main Switch) |
| Enclosure Material | Metal Base (Cold-Rolled Steel) + Plastic Cover (Fire-Retardant PC) |
| Installation Type | Surface Mount / Flush Mount |
| Circuit Options | 4, 8, 12, 16 Circuits |
| Protection Level | IP30 (Indoor Use) |
| Operating Temperature | -5°C to +40°C |
4. Advantages
- Ready-to-Use Solution: Pre-assembled with circuit breakers, reducing installation time and eliminating compatibility concerns.
- Safety Compliant: Meets IEC 60439-1 standards for low-voltage distribution assemblies.
- Long-Lasting Performance: Corrosion-resistant metal base and UV-stabilized plastic cover ensure durability in indoor environments.
- Cost-Effective: Combines high-quality components at a competitive price, offering excellent value for residential and light commercial projects.
- Easy Maintenance: Transparent cover allows quick visual inspection of circuit breakers without opening the enclosure.
5. Applications
- Residential buildings (homes, apartments, villas)
- Commercial spaces (offices, shops, restaurants)
- Renovation and new construction projects
- Small workshops and light industrial facilities
6. Installation Notes
- Ensure the enclosure is mounted in a dry, well-ventilated location, away from water sources and direct sunlight.
- For flush-mount installations, prepare the wall cavity to match the enclosure dimensions.
- Always turn off the main power supply before installing or modifying the distribution box.
- Wiring must be performed by a qualified electrician in accordance with local electrical codes.
- Verify that all circuit breakers are properly seated on the DIN rail and connected securely.
7. FAQ
Q: Are the circuit breakers included?
A: Yes, the distribution boxes come pre-fitted with genuine LVMA MCBs for immediate use.
Q: Can I install additional breakers later?
A: Yes, the modular DIN rail design allows for expansion if extra circuits are needed.
Q: Is this suitable for outdoor use?
A: No, this unit is rated IP30 for indoor use only. For outdoor applications, please refer to our IP65-rated distribution boxes.
Q: What is the difference between surface-mount and flush-mount?
A: Surface-mount boxes are mounted directly on the wall surface, while flush-mount boxes are recessed into the wall for a cleaner, more integrated look.
8. Technical Documents & Support
- Download the full datasheet for detailed specifications, wiring diagrams, and installation instructions.
- Contact our engineering team for custom pole configurations or OEM/ODM solutions for large-scale projects.
- Request a quote with your project details for bulk pricing, lead times, and compliance certifications.
