RT18-125 | 125 Amp Electrical Fuse for Circuit Protection
RT18-125 | 125 Amp Electrical Fuse for Circuit Protection
Dimensions:22 x 58mm
Volts:400Vac-690Vac
Amps:10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A
Breaking Capacity: 100 kA
Time Constant: 1-3 ms
Standard: IEC 60269
Dimensions:22 x 58mm
Volts:400Vac-690Vac
Amps:10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A
Breaking Capacity: 100 kA
Time Constant: 1-3 ms
Standard: IEC 60269
1. Product Overview

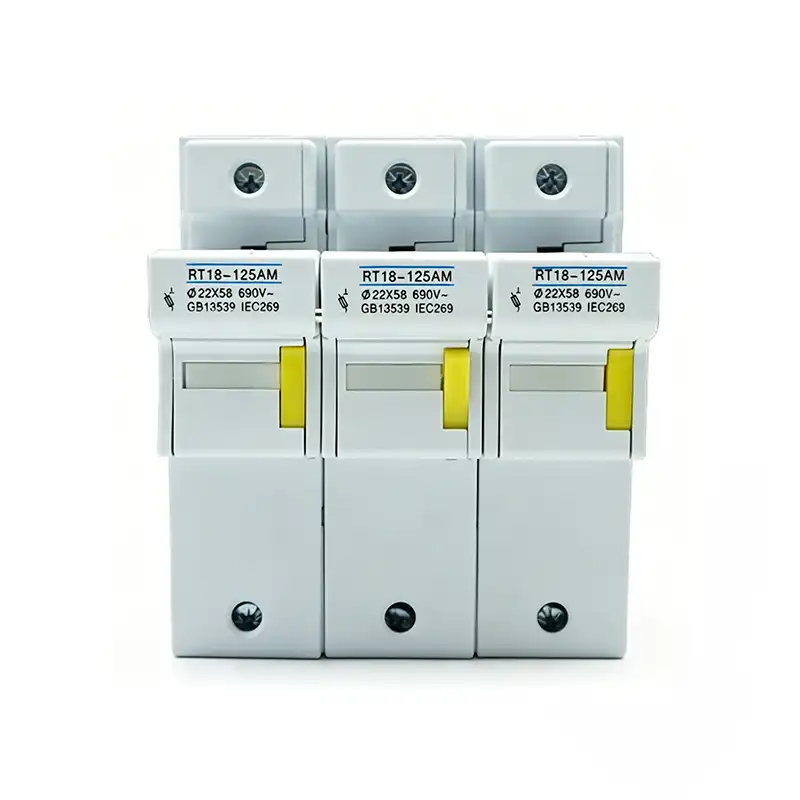

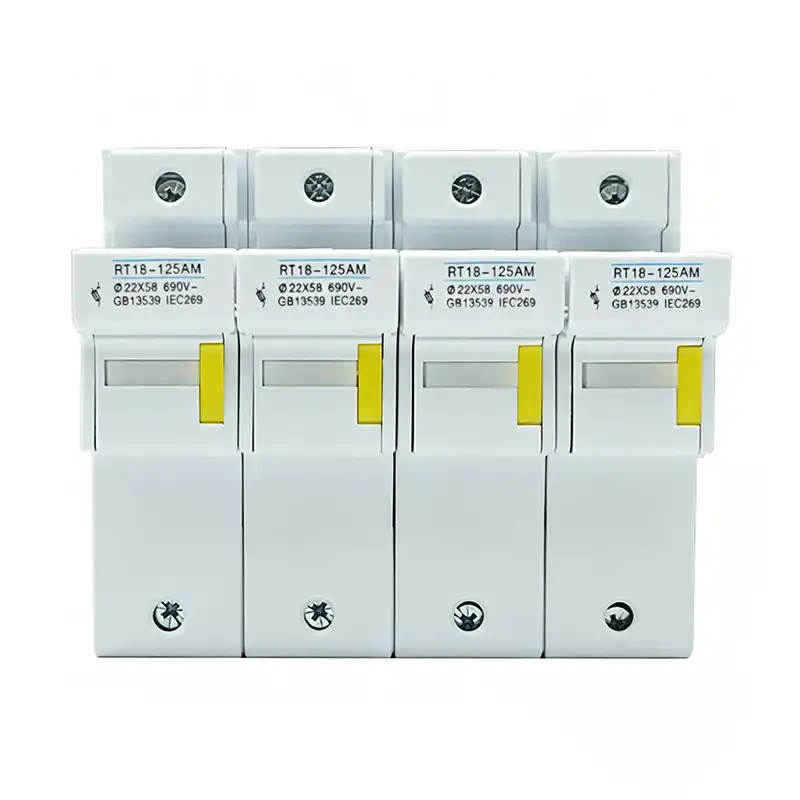

The RT18-125AM is a high-capacity DIN rail mountable fuse holder engineered for use with standard 22x58mm cylindrical fuses. Designed for industrial and commercial low-voltage AC systems up to 690V and 125A, this holder provides secure, reliable housing for fuses in power distribution panels, motor control centers, and automation equipment.
Built with flame-retardant plastic and robust screw terminals, the RT18-125AM ensures low-resistance contact and high thermal stability. Its compact, modular design allows for space-saving installation in high-density control cabinets, making it the ideal choice for protecting high-power circuits in industrial environments.
2. Key Features
- 22x58mm Compatibility: Designed for standard 22x58mm cylindrical fuses (gG/aM types).
- 125A / 690V AC Rating: Suitable for high-power low-voltage AC circuits in industrial applications.
- DIN Rail Mounting: Standard 35mm DIN rail design for easy installation in distribution panels and control cabinets.
- Flame-Retardant Housing: Heat-resistant plastic body (UL94 V-0) for enhanced safety and durability.
- Robust Screw Terminals: Secure screw-type terminals ensure low-resistance connections and prevent loose wiring.
- Modular & Space-Saving: Slim profile allows for multiple units to be mounted side-by-side in tight spaces.
- IEC60269 Compliant: Meets international standards for low-voltage fuse holders, ensuring reliable performance.
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | RT18-125AM |
| Rated Voltage | 690V AC |
| Rated Current | 125A |
| Fuse Size | 22x58mm cylindrical fuse |
| Mounting Type | 35mm DIN Rail |
| Terminal Type | Screw terminal |
| Housing Material | Flame-retardant engineering plastic (UL94 V-0) |
| Operating Temperature | -25°C ~ +85°C |
| Compliance | IEC 60269, GB13539, CE certified |
4. Working Principle
The RT18-125AM fuse holder safely houses and protects 22x58mm fuses in high-power low-voltage circuits:
- Normal Operation: The fuse conducts current through the holder’s terminals with minimal resistance.
- Overcurrent / Short-Circuit: When the fuse element melts, the holder’s robust structure safely contains the arc, preventing damage to surrounding equipment.
- Secure Connection: The screw terminals ensure a tight, low-resistance connection to the fuse, minimizing overheating at rated current.
- Circuit Protection: The holder provides physical isolation for the fuse, preventing accidental contact with live parts during operation or replacement.
5. Applications
- Industrial Power Distribution: Overcurrent protection for high-power branch circuits and distribution panels.
- Motor Control Centers: Protection for large motor circuits, pumps, and industrial machinery.
- Renewable Energy Systems: Large-scale solar combiner boxes and wind turbine auxiliary circuits.
- Commercial & Industrial Installations: Building distribution boards, HVAC systems, and elevator control panels.
- Heavy Machinery & Equipment: CNC machines, conveyor systems, and industrial machinery control circuits.
6. Installation & Operation Instructions
- Mounting: Snap the RT18-125AM holder onto a standard 35mm DIN rail inside the distribution panel or control cabinet.
- Wiring: Connect the line and load wires to the corresponding screw terminals, tightening them to the manufacturer’s recommended torque.
- Fuse Installation: Insert a 22x58mm fuse into the holder, ensuring it is fully seated and the cap is securely closed.
- Verification: Energize the circuit and confirm normal operation. If the fuse blows, disconnect power before replacing it with a new, correctly rated 22x58mm fuse.
7. Frequently Asked Questions (FAQ)
Q1: What size fuse does the RT18-125AM use?
It is designed for 22x58mm cylindrical fuses, suitable for high-power circuits up to 125A. It works with both general-purpose (gG) and motor circuit (aM) rated fuses.
Q2: What is the maximum current and voltage rating?
The holder is rated for 125A continuous current and 690V AC, making it suitable for most high-power industrial and commercial applications.
Q3: Can I use this fuse holder outdoors?
No, the RT18-125AM has an IP20 rating, designed for indoor use only. It must be installed inside a weatherproof enclosure for outdoor applications.
Q4: Is the RT18-125AM compatible with other brands of 22x58mm fuses?
Yes, it is fully compatible with all standard 22x58mm cylindrical fuses from major manufacturers.
Q5: Is this fuse holder CE certified?
Yes, the RT18-125AM complies with IEC 60269 and GB13539 standards and carries the CE mark, ensuring it meets international safety requirements for low-voltage electrical components.
8. Technical Documents & Support
- Download the full datasheet for detailed specifications, wiring diagrams, and installation instructions.
- Contact our engineering team for custom pole configurations or OEM/ODM solutions for large-scale projects.
- Request a quote with your project details for bulk pricing, lead times, and compliance certifications.
