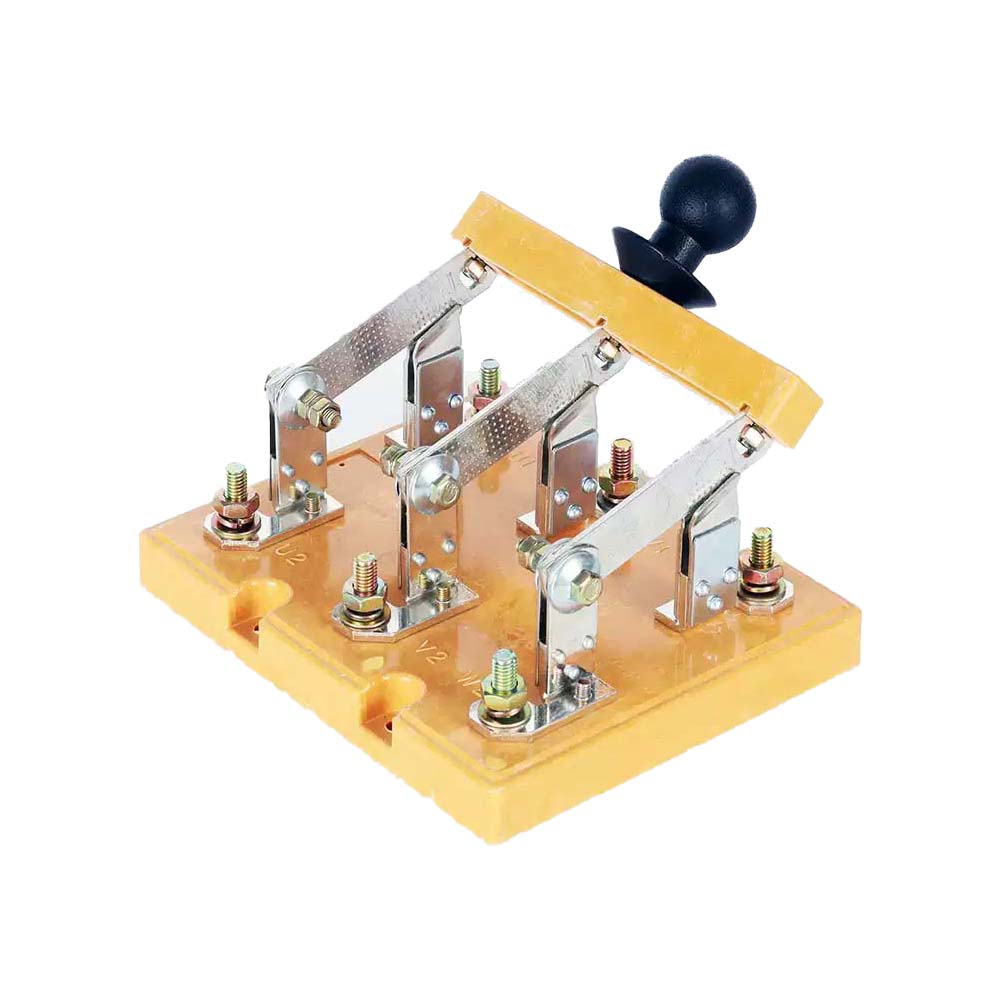

3 Pole HD11 Knife Switch | 100A-1600A LV Isolator Disconnector
3 Pole HD11 Knife Switch | 100A-1600A LV Isolator Disconnector
1. Product Overview
2. Key Specifications
| Parameter | Details |
|---|---|
| Model | HD Series (HD11/HD12 etc.) |
| Poles | 3P (3-Phase) |
| Rated Current | 100A / 200A / 400A / 800A / 1600A(options) |
| Rated Voltage | AC 380V / 50Hz |
| Insulation Base Material | Phenolic resin (high mechanical & dielectric strength) |
| Contact Material | High-conductivity copper, silver-plated optional |
| Handle Type | Manual lever handle (insulated) |
| Visible Break | Yes, full visible contact separation |
| Mounting | Panel/base mount |
| Compliance Standards | GB 14048.3, IEC 60947-3 |
| Operating Temperature | -10°C ~ +60°C |
| Mechanical Life | ≥5,000 operations |
3. Core Features
✅ Visible Electrical Isolation: Full visible contact separation ensures clear confirmation of the “OFF” state for maintenance safety.
✅ Heavy-Duty Construction: Robust phenolic resin base provides excellent mechanical strength and insulation performance.
✅ High-Current Capacity: Available in 100A-1600A ratings to meet various industrial distribution needs.
✅ Durable Contacts: High-conductivity copper contacts with optional silver plating for low resistance and anti-welding performance.
✅ Insulated Handle: Ergonomic, insulated lever handle ensures safe manual operation even under load conditions.
✅ Corrosion Resistance: Anti-rust treatment on metal components ensures long service life in industrial environments.
✅ Simple & Reliable Design: No complex electronics, offering high reliability and low maintenance for heavy-duty applications.
4. Applications
- Main power disconnect in industrial distribution panels
- 3-phase motor control centers and machine tools
- Commercial building electrical systems
- Generator backup power systems
- Farm and agricultural power distribution
- Mining and heavy-duty industrial applications
5. Why Choose LVMA 3P HD Series Knife Switch?
- Proven Reliability: Simple mechanical design ensures consistent performance even in harsh industrial conditions.
- Safety First: Visible break design meets safety codes for maintenance lockout/tagout procedures.
- Versatile Ratings: Multiple current options (100A–1600A) to match different system capacities.
- Durability: High-quality materials and anti-corrosion treatment ensure long-term use with minimal maintenance.
- Cost-Effective: Affordable, no-frills solution for basic yet reliable power isolation.
6. Technical Documents & Support
- Download the full datasheet for detailed specifications, wiring diagrams, and installation instructions.
- Contact our engineering team for custom pole/current configurations or OEM solutions for large-scale projects.
- Request a quote with your project details for bulk pricing, lead times, and compliance certifications.
