IP65 Transparent Cover ABS Waterproof Electrical Junction Box
IP65 Transparent Cover ABS Waterproof Electrical Junction Box
This IP65 waterproof ABS plastic electrical enclosure features a transparent hinged cover and built-in perforated mounting backboard. Rated IP65 dustproof & waterproof, it is designed for indoor and outdoor wiring, PLC control, instrument installation, solar wiring and monitoring equipment protection, with lockable latch design for anti-tamper safety.
This IP65 waterproof ABS plastic electrical enclosure features a transparent hinged cover and built-in perforated mounting backboard. Rated IP65 dustproof & waterproof, it is designed for indoor and outdoor wiring, PLC control, instrument installation, solar wiring and monitoring equipment protection, with lockable latch design for anti-tamper safety.
1. Product Overview
Our hinged transparent cover waterproof electrical box is manufactured from high-quality flame-retardant ABS plastic, reaching IP65 dustproof and waterproof protection grade. Equipped with clear transparent lid, stainless steel hinge and lockable side latches, the internal perforated mounting plate enables flexible installation of circuit breakers, terminal blocks, PLC modules, sensors and wiring accessories.
Suitable for outdoor and humid indoor environments, this plastic enclosure is widely applied in electrical engineering, solar power system, monitoring project, automation control and municipal wiring projects. Multiple standard sizes are available, custom dimension and modification service are supported.
2. Key Features
- IP65 Waterproof & Dustproof Grade: Sealed rubber gasket around cover prevents water splash and fine dust, perfect for outdoor installation.

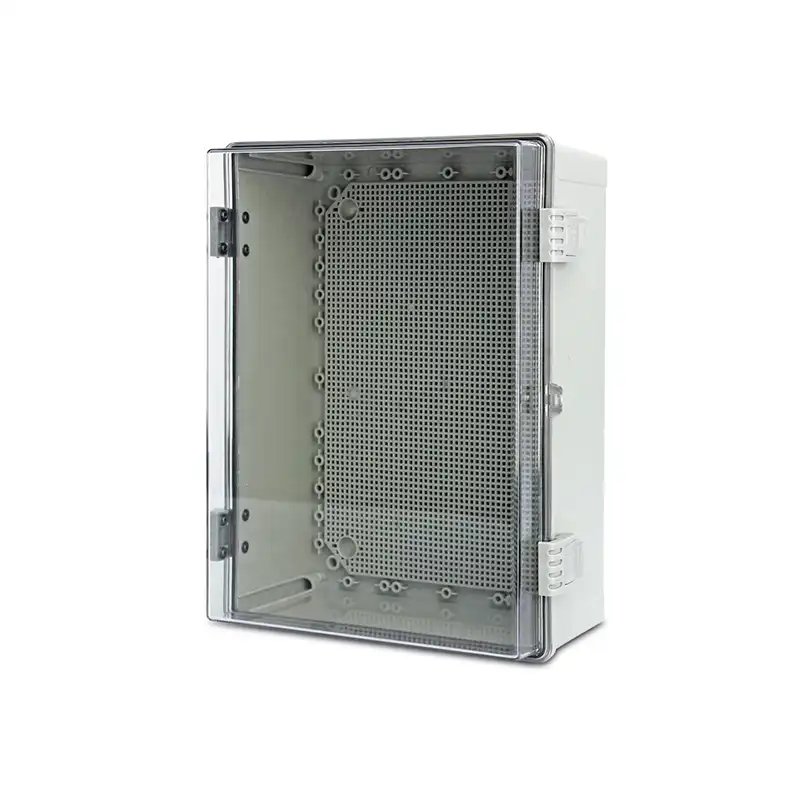

- Transparent Clear Lid: PC transparent cover allows real-time inspection of internal components without opening the cabinet door.
- Hinged + Lockable Latch: Built-in hinge for easy door opening; lockable side buckle can fit padlock to avoid unauthorized opening.

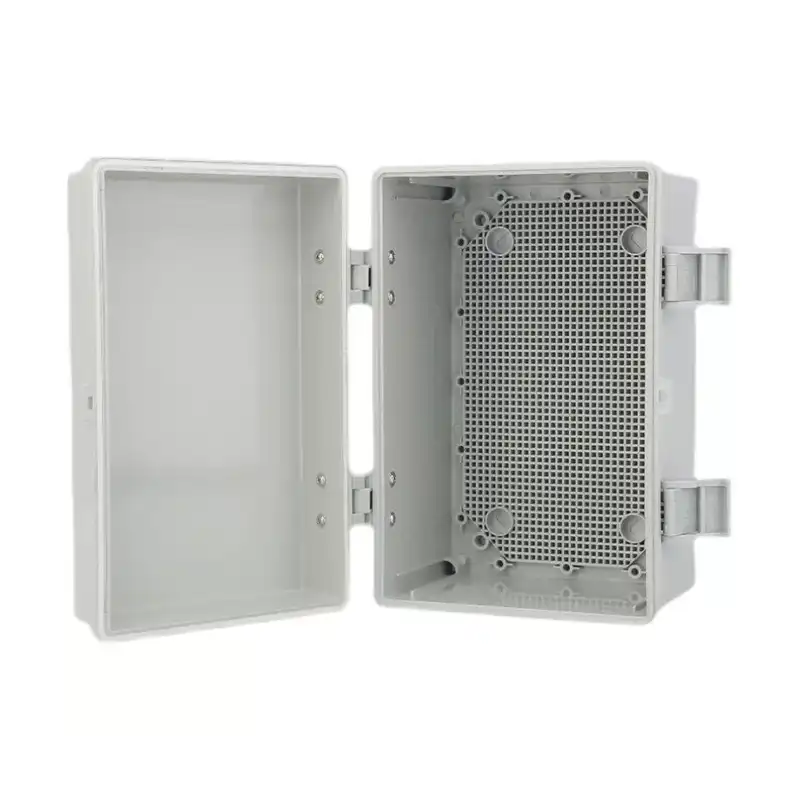

- Perforated Mounting Backplate: Grid-type perforated internal board, freely fix DIN rail, breakers and wiring components with screws.
- High-Grade ABS Body: Anti-aging, impact-resistant and flame retardant plastic housing, long service life under harsh outdoor climate.
- Pre-reserved Cable Knockouts: Preformed reserved holes for convenient cable inlet & outlet, flexible wiring layout.

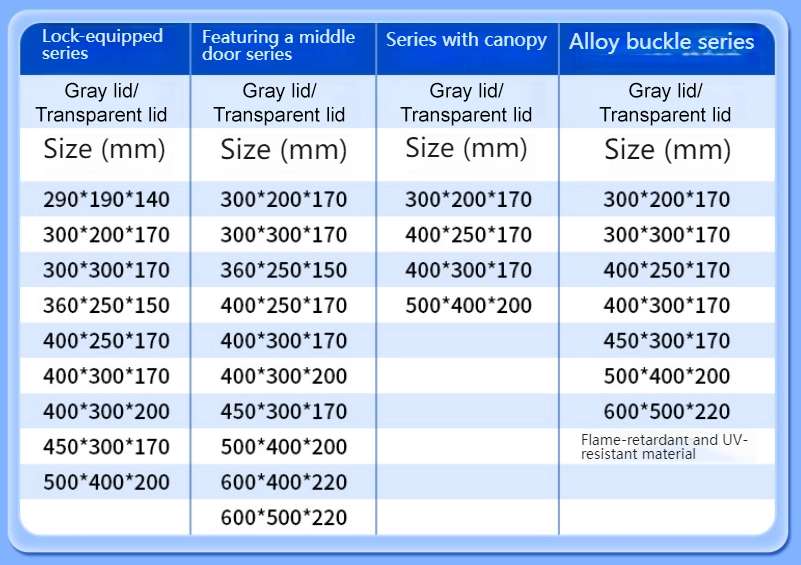

- Multi-size Available: Various standard dimensions in stock, OEM customized size/color available for bulk orders.
3. Technical Specifications
| Parameter | Details |
|---|---|
| Housing Material | Flame retardant ABS Plastic |
| Cover Material | Transparent PC |
| Protection Rating | IP65 |
| Opening Structure | Hinged door + lockable plastic latches |
| Internal Accessory | Perforated PP mounting backboard |
| Operating Temp | -30℃ ~ +75℃ |
| Application Environment | Indoor / Outdoor, damp, dusty space |
| Standard Compliance | CE certified |
Working Principle & Application
The waterproof enclosure provides fully enclosed physical protection for electrical components:
- After installing electric parts on the inner perforated plate, close the transparent lid and fasten side latches; the embedded rubber gasket compresses to form sealed IP65 protection.
- External rainwater, dust and mist are blocked outside the box to avoid short circuit or component corrosion.
4. Main Application Fields
- Solar PV System: Combiner box auxiliary enclosure, solar module wiring junction cabinet
- Monitoring Engineering: Outdoor camera power supply box, security equipment protection housing
- Industrial Automation: Small PLC control box, sensor terminal distribution enclosure
- Municipal & Construction: Outdoor street lamp wiring, building electrical wiring junction box
- Household & Commercial: Indoor wiring, air-conditioning control terminal box
5. Installation Instructions
- Fix the whole box on wall surface via reserved outer mounting holes on enclosure body.
- Install required electrical fittings on internal perforated backplate using self-tapping screws.
- Lead cables into cabinet via pre-reserved knockout holes, finish wiring connection.
- Close transparent cover and lock latches; add padlock on latch for anti-theft if needed.
6. FAQ
Q1: Is this box fully waterproof for outdoor rain exposure?
Yes, IP65 rated with full surrounding rubber sealing gasket, it can resist rain splash and outdoor wet environment, cannot be submerged in water for long time.
Q2: Can I remove the internal perforated mounting plate?
Yes, the backplate is detachable, you can take it out to pre-install components conveniently before putting back into enclosure.
Q3: Can we customize box size or color?
Custom dimension, body color and extra cable holes are available for bulk order production.
Q4: Is the transparent cover break-resistant?
The cover is made of impact-resistant PC material, anti-crack under normal outdoor use.
Q5: Does the product come with CE certification?
All standard waterproof plastic junction boxes pass CE certification complying with EU electrical enclosure standards.
7. Technical Documents & Support
Download the full datasheet for detailed specifications, wiring diagrams, and trip coordination guidelines.
Contact our engineering team for custom configurations, communication module integration, or OEM solutions for large-scale projects.
Request a quote with your project details for bulk pricing, lead times, and compliance certifications.
1. Product Overview
Our hinged transparent cover waterproof electrical box is manufactured from high-quality flame-retardant ABS plastic, reaching IP65 dustproof and waterproof protection grade. Equipped with clear transparent lid, stainless steel hinge and lockable side latches, the internal perforated mounting plate enables flexible installation of circuit breakers, terminal blocks, PLC modules, sensors and wiring accessories.
Suitable for outdoor and humid indoor environments, this plastic enclosure is widely applied in electrical engineering, solar power system, monitoring project, automation control and municipal wiring projects. Multiple standard sizes are available, custom dimension and modification service are supported.
2. Key Features
- IP65 Waterproof & Dustproof Grade: Sealed rubber gasket around cover prevents water splash and fine dust, perfect for outdoor installation.
- Transparent Clear Lid: PC transparent cover allows real-time inspection of internal components without opening the cabinet door.
- Hinged + Lockable Latch: Built-in hinge for easy door opening; lockable side buckle can fit padlock to avoid unauthorized opening.
- Perforated Mounting Backplate: Grid-type perforated internal board, freely fix DIN rail, breakers and wiring components with screws.
- High-Grade ABS Body: Anti-aging, impact-resistant and flame retardant plastic housing, long service life under harsh outdoor climate.
- Pre-reserved Cable Knockouts: Preformed reserved holes for convenient cable inlet & outlet, flexible wiring layout.
- Multi-size Available: Various standard dimensions in stock, OEM customized size/color available for bulk orders.
3. Technical Specifications
| Parameter | Details |
|---|---|
| Housing Material | Flame retardant ABS Plastic |
| Cover Material | Transparent PC |
| Protection Rating | IP65 |
| Opening Structure | Hinged door + lockable plastic latches |
| Internal Accessory | Perforated PP mounting backboard |
| Operating Temp | -30℃ ~ +75℃ |
| Application Environment | Indoor / Outdoor, damp, dusty space |
| Standard Compliance | CE certified |
Working Principle & Application
The waterproof enclosure provides fully enclosed physical protection for electrical components:
- After installing electric parts on the inner perforated plate, close the transparent lid and fasten side latches; the embedded rubber gasket compresses to form sealed IP65 protection.
- External rainwater, dust and mist are blocked outside the box to avoid short circuit or component corrosion.
4. Main Application Fields
- Solar PV System: Combiner box auxiliary enclosure, solar module wiring junction cabinet
- Monitoring Engineering: Outdoor camera power supply box, security equipment protection housing
- Industrial Automation: Small PLC control box, sensor terminal distribution enclosure
- Municipal & Construction: Outdoor street lamp wiring, building electrical wiring junction box
- Household & Commercial: Indoor wiring, air-conditioning control terminal box
5. Installation Instructions
- Fix the whole box on wall surface via reserved outer mounting holes on enclosure body.
- Install required electrical fittings on internal perforated backplate using self-tapping screws.
- Lead cables into cabinet via pre-reserved knockout holes, finish wiring connection.
- Close transparent cover and lock latches; add padlock on latch for anti-theft if needed.
6. FAQ
Q1: Is this box fully waterproof for outdoor rain exposure?
Yes, IP65 rated with full surrounding rubber sealing gasket, it can resist rain splash and outdoor wet environment, cannot be submerged in water for long time.
Q2: Can I remove the internal perforated mounting plate?
Yes, the backplate is detachable, you can take it out to pre-install components conveniently before putting back into enclosure.
Q3: Can we customize box size or color?
Custom dimension, body color and extra cable holes are available for bulk order production.
Q4: Is the transparent cover break-resistant?
The cover is made of impact-resistant PC material, anti-crack under normal outdoor use.
Q5: Does the product come with CE certification?
All standard waterproof plastic junction boxes pass CE certification complying with EU electrical enclosure standards.
7. Technical Documents & Support
Download the full datasheet for detailed specifications, wiring diagrams, and trip coordination guidelines.
Contact our engineering team for custom configurations, communication module integration, or OEM solutions for large-scale projects.
Request a quote with your project details for bulk pricing, lead times, and compliance certifications.
