CJX2-F / LC1-F AC Contactor
CJX2-F / LC1-F AC Contactor
CJX2-F AC contactor is a common electrical component for controlling loads such as AC motor. It is composed of arc extinguishing, contact, magnetic system, etc. . Through the coil on-off generation/disappearance of electromagnetic force, to achieve contact opening and closing to control the circuit. Adapt to AC 50/60Hz, to 1000V circuit, rated current 115A-800A, ambient temperature-25 °C to + 40 °C can work, widely used in industrial automation and motor drive field.
Model: CJX2-F/LC1-F
Rated current: AC -3 (115A-800A), AC-1 （200-1600A）
Rated control voltage: 24V-660V(the default is 220V)
Rated operational voltage: 1000V
Certification: CE
Email: sale@lvma-ele.com
CJX2-F AC contactor is a common electrical component for controlling loads such as AC motor. It is composed of arc extinguishing, contact, magnetic system, etc. . Through the coil on-off generation/disappearance of electromagnetic force, to achieve contact opening and closing to control the circuit. Adapt to AC 50/60Hz, to 1000V circuit, rated current 115A-800A, ambient temperature-25 °C to + 40 °C can work, widely used in industrial automation and motor drive field.
Model: CJX2-F/LC1-F
Rated current: AC -3 (115A-800A), AC-1 （200-1600A）
Rated control voltage: 24V-660V(the default is 220V)
Rated operational voltage: 1000V
Certification: CE
Email: sale@lvma-ele.com
CJX2-F AC contactor is a common electrical component for controlling loads such as AC motor. It is composed of arc extinguishing, contact, magnetic system, etc. . Through the coil on-off generation/disappearance of electromagnetic force, to achieve contact opening and closing to control the circuit. Adapt to AC 50/60Hz, to 1000V circuit, rated current 115A-800A, ambient temperature-25 °C to + 40 °C can work, widely used in industrial automation and motor drive field.
| Product Model | CJX2-F/LC1-F |
|---|---|
| Specifications | 115,150,185,225,265,330,400,500,630,780,800A |
| Rated operational AC-3 | 115-800A |
| AC-1 | 200-1600A |
| Rated heating current (Ith) | 200-1600A |
| Maximum rated operational voltage | 1000V |
| Rated operational power AC-3 kW | 220V 30-220kW |
| 400V 55-400kW | |
| 500V 75-450kW | |
| 690V 80-475kW | |
| 1000V 65-450kW | |
| Maximum operating power AC-1 kW | 220V 80-550kW |
| 400V 135-970kW | |
| 500V 170-1200kW | |
| 690V 235-1650kW | |
| 1000V 345-2400kW | |
| Number of poles | 2,3,4 |
| Rated control voltage | 50/60Hz 24-660V |
| Applications | Standard products,ApplicableAC-3andAC-1 loads.Widelay used for control of AC motors |

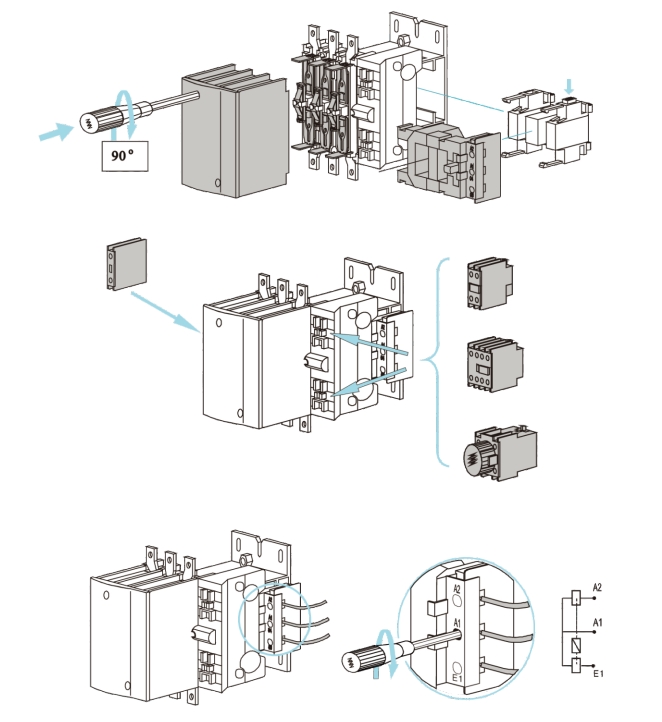

| Optional parts | Auxiliary contact group:LA1-DC
Air delay group: LA2-DT,LA2-DS,La2-DR |
| (SCPD)Match with fuse | RT16-2,RT16-3 |
| Standards | IEC 60947,GB14048,EN60947,NFC63-110,VDE0660,BS5424,JEM1038 |
CJX2-F AC contactor is a common electrical component for controlling loads such as AC motor. It is composed of arc extinguishing, contact, magnetic system, etc. . Through the coil on-off generation/disappearance of electromagnetic force, to achieve contact opening and closing to control the circuit. Adapt to AC 50/60Hz, to 1000V circuit, rated current 115A-800A, ambient temperature-25 °C to + 40 °C can work, widely used in industrial automation and motor drive field.
| Product Model | CJX2-F/LC1-F |
|---|---|
| Specifications | 115,150,185,225,265,330,400,500,630,780,800A |
| Rated operational AC-3 | 115-800A |
| AC-1 | 200-1600A |
| Rated heating current (Ith) | 200-1600A |
| Maximum rated operational voltage | 1000V |
| Rated operational power AC-3 kW | 220V 30-220kW |
| 400V 55-400kW | |
| 500V 75-450kW | |
| 690V 80-475kW | |
| 1000V 65-450kW | |
| Maximum operating power AC-1 kW | 220V 80-550kW |
| 400V 135-970kW | |
| 500V 170-1200kW | |
| 690V 235-1650kW | |
| 1000V 345-2400kW | |
| Number of poles | 2,3,4 |
| Rated control voltage | 50/60Hz 24-660V |
| Applications | Standard products,ApplicableAC-3andAC-1 loads.Widelay used for control of AC motors |
| Optional parts | Auxiliary contact group:LA1-DC
Air delay group: LA2-DT,LA2-DS,La2-DR |
| (SCPD)Match with fuse | RT16-2,RT16-3 |
| Standards | IEC 60947,GB14048,EN60947,NFC63-110,VDE0660,BS5424,JEM1038 |
