RT36 Series Knife Contact NH Fuse | Low Voltage HBC Fuse Link with Base
RT36 Series Knife Contact NH Fuse | Low Voltage HBC Fuse Link with Base
RT36 series knife contact NH fuse is a type of low voltage HBC fuse. Adopting quartz sand arc extinguishing medium, it provides reliable overload and short-circuit protection. Complete sets include fuse link and matching fuse base, widely used in distribution boxes, power control cabinets and industrial electrical systems.
RT36 series knife contact NH fuse is a type of low voltage HBC fuse. Adopting quartz sand arc extinguishing medium, it provides reliable overload and short-circuit protection. Complete sets include fuse link and matching fuse base, widely used in distribution boxes, power control cabinets and industrial electrical systems.
1. Product Overview
RT36-00 NH00 knife blade fuse belongs to NH series low voltage fuses, also known as knife contact fuse. It is widely adopted in low-voltage AC and DC power distribution systems to offer reliable overload and short-circuit protection for electrical equipment.

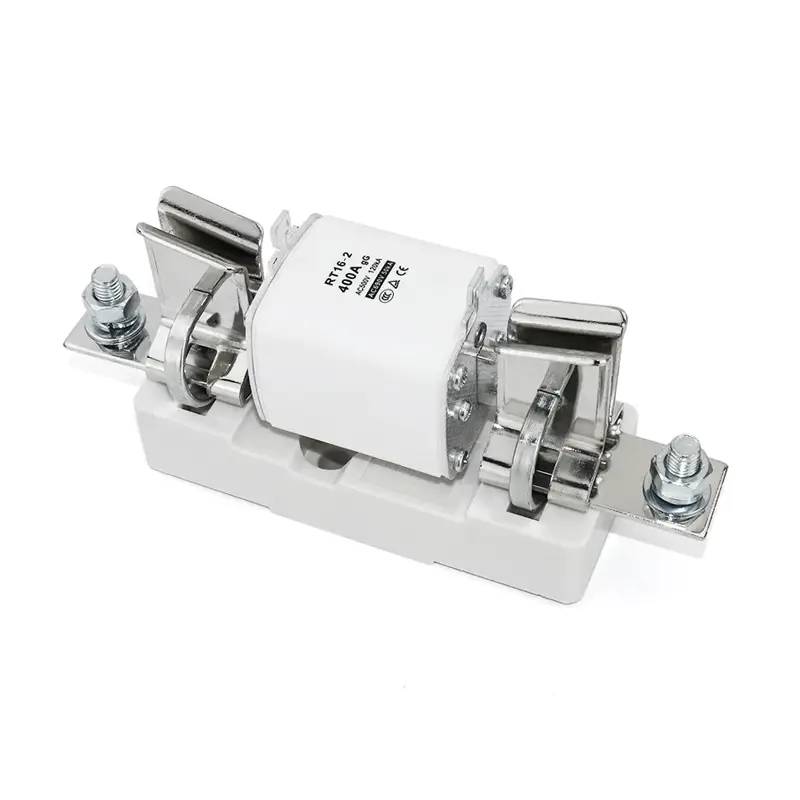

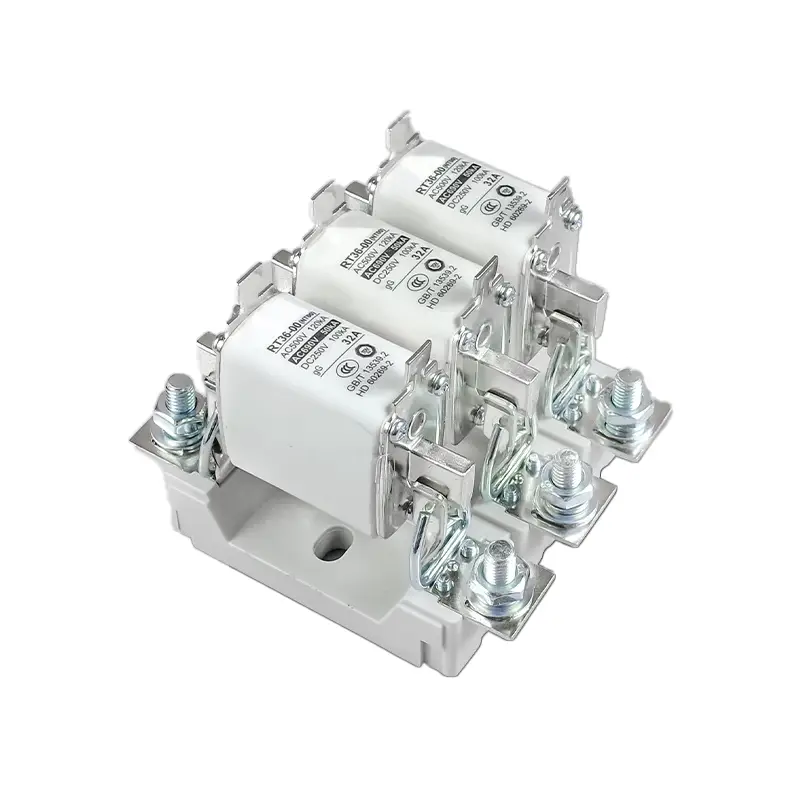

The complete assembly consists of NH00 ceramic fuse link and supporting fuse holder. The fuse body uses high-strength explosion-proof ceramic material; knife contact is made of thick pure copper to ensure low contact resistance and stable power transmission. This product strictly complies with GB/T 13889.2 and HD 60269-2 international standards. It works stably in industrial distribution cabinets, motor control equipment, photovoltaic combiner boxes and other scenarios. As a professional electrical manufacturer, we maintain full stock of all current specifications and support bulk export orders.
2. Core Competitive Features
✅ High Breaking Capacity
AC500V breaking capacity up to 120kA, effectively block short-circuit current and protect circuit devices.
✅ Wide Rated Voltage Range
Suitable for AC690V alternating current and DC290V direct current circuits, applicable for photovoltaic DC side protection.
✅ Explosion-Proof Ceramic Housing
High temperature resistant ceramic shell effectively prevent arc splash when fusing, improve operation safety.
✅ Pure Copper Knife Blade Contacts
Low contact resistance, less heat generation, stable conductivity under continuous full-load working condition.
✅ Multiple Current Specifications Optional
Available ratings:16A,32A,63A,100A,125A,160A,200A,250A,315A,400A,500A,630A to satisfy various load requirements.
✅ Flexible Installation Method
Support surface mounting; DIN rail mounting optional with matched base, easy to install inside electrical cabinets.
✅ Standard Universal Size
Standard NH00 dimension, interchangeable with mainstream NH00 fuse in global market.
✅ Separate & Complete Set Supply
Customers can purchase fuse link individually or complete assembly (fuse link + fuse holder).
3. Main Product Specifications
| Item | Technical Parameter |
|---|---|
| Model | RT36-00 (NH00) Knife Blade Fuse |
| Rated Voltage | AC 690V; DC 290V |
| Rated Current | 10A~630A |
| Breaking Capacity | AC500V:120kA; AC690V:50kA; DC290V:100kA |
| Housing Material | High strength explosion-proof ceramic |
| Contact Material | Pure copper |
| Executive Standard | GB/T 13889.2, HD 60269-2 |
| Installation Type | Surface mount / DIN rail mount |
| Product Form | Single fuse link / Fuse link + NH00 fuse holder assembly |
| Typical Application | Low voltage power distribution, industrial control, photovoltaic power system |
| Service Support | Factory wholesale, sufficient spot stock, export packaging support |
4. Wide Application Scenarios
- Low voltage power distribution cabinets & MCC control panels
- Photovoltaic solar combiner box DC circuit protection
- Industrial motor control equipment
- UPS, inverter and power supply equipment
- Commercial building power distribution system
- Automation equipment control cabinets
5. Installation & Operation Guide
- Install NH00 fuse holder firmly on cabinet mounting plate or DIN rail, ensure tight fixation.
- Connect incoming and outgoing power cables to the terminals of fuse holder, tighten bolts properly to avoid loose connection.
- Insert matched RT36-00 NH00 fuse link into the base, guarantee full contact between knife blade and holder contact.
- Check the rated current of fuse matches the protected circuit load, do not use fuse with higher current rating arbitrarily.
- Once the fuse blows under overload or short-circuit fault, cut off power supply firstly, then replace with new fuse link of same specification.
- Regularly check contact temperature during long-term operation to prevent overheating caused by poor contact.
6. FAQ | Frequently Asked Questions
Q1: Can RT36-00 NH00 fuse be used for solar photovoltaic DC circuits?
Q2: Are fuse links and fuse holders sold separately?
Q3: Is RT36-00 NH00 fuse interchangeable with other brand NH00 fuses?
Q4: What maximum current does RT36-00 NH00 series support?
Q5: Do you support bulk export orders for overseas electrical distributors?
7. Factory Wholesale Advantages
- Professional low voltage fuse manufacturer, no middlemen, competitive price for large export orders.
- Every RT36-00 fuse undergoes strict raw material inspection and fusing characteristic testing before delivery.
- Stable production capacity, fast lead time, all mainstream current specifications maintain continuous spot stock.
- Strict packaging protection to avoid collision damage during long-distance sea and land transportation.
- Professional electrical team offers technical support for circuit protection selection and installation suggestions for engineering projects.
