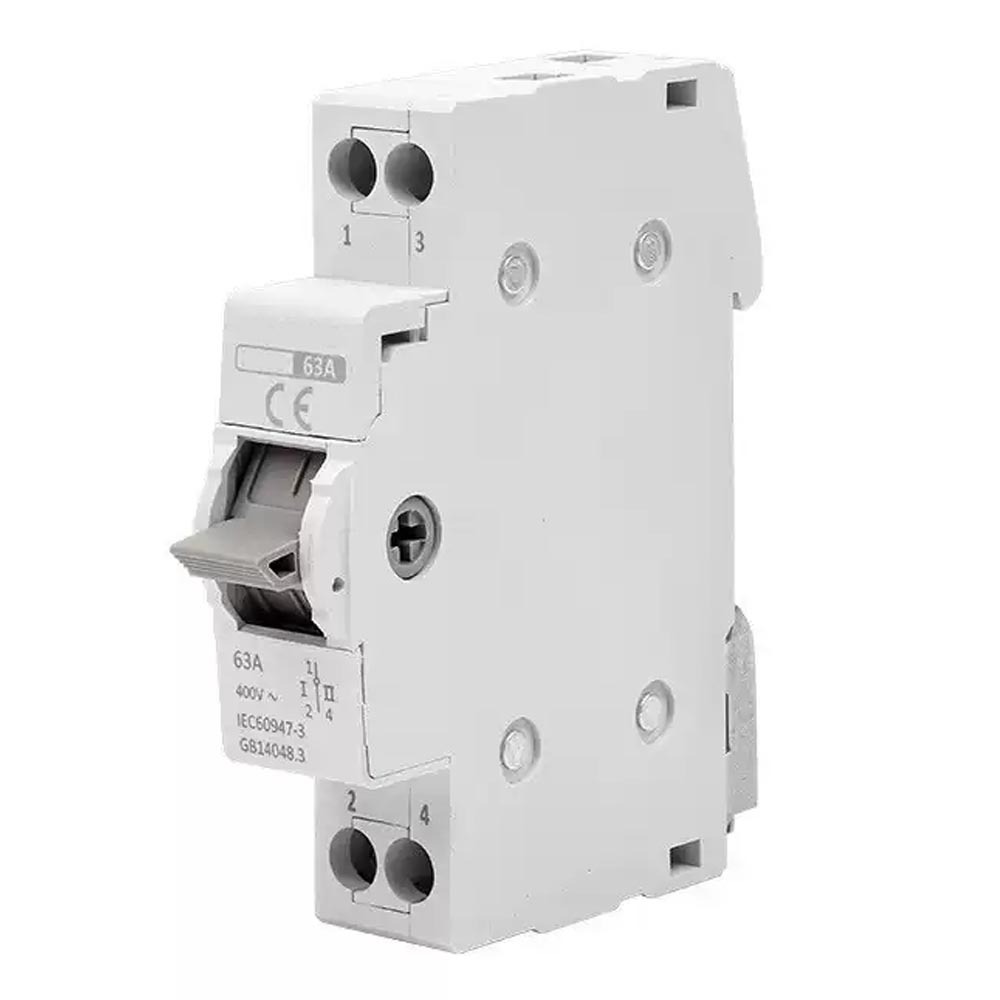

SF219G Dual power transfer isolating switch
SF219G Dual power transfer isolating switch
Model: SF219G
Type: I-0-II Three-position manual changeover switch (ON-OFF-ON)
Number of poles: 1P/2P/3P/4P
Rated current: 10/16/20/25/32/40/63A
Rated voltage: AC 230V/400V (≤400V)
Frequency: 50/60Hz
Standard: IEC 60947-3, CE
Installation: DIN rail mounting
Electrical life: ≥1500 cycles
Mechanical life: ≥8500 cycles
Model: SF219G
Type: I-0-II Three-position manual changeover switch (ON-OFF-ON)
Number of poles: 1P/2P/3P/4P
Rated current: 10/16/20/25/32/40/63A
Rated voltage: AC 230V/400V (≤400V)
Frequency: 50/60Hz
Standard: IEC 60947-3, CE
Installation: DIN rail mounting
Electrical life: ≥1500 cycles
Mechanical life: ≥8500 cycles
The SF219G is a rail-mounted manual dual power transfer/isolation switch (MTS/Changeover Switch) used for manual switching and isolation between two power sources. It is commonly found in distribution boxes, photovoltaic systems, and power distribution systems.
Product Parameters
| Product Model | SF 219G | |
|---|---|---|
| Pole | 1P,2P,3P,4P | |
| Rated current(A) | 10/16/20/25/32/40/63A | |
| Rated voltage(V) | 230/400 | |
| Contact form | 1-0-2 | |
| Working Temperature | -5°C~+40°C | |
| Enclosed Class | IP20 | |
| Installation | Rail installation | |
| Frequency | 50/60Hz | |
| Electrical Life | >1500 cycles | |
| Mechanical Life | >8500 cycles | |

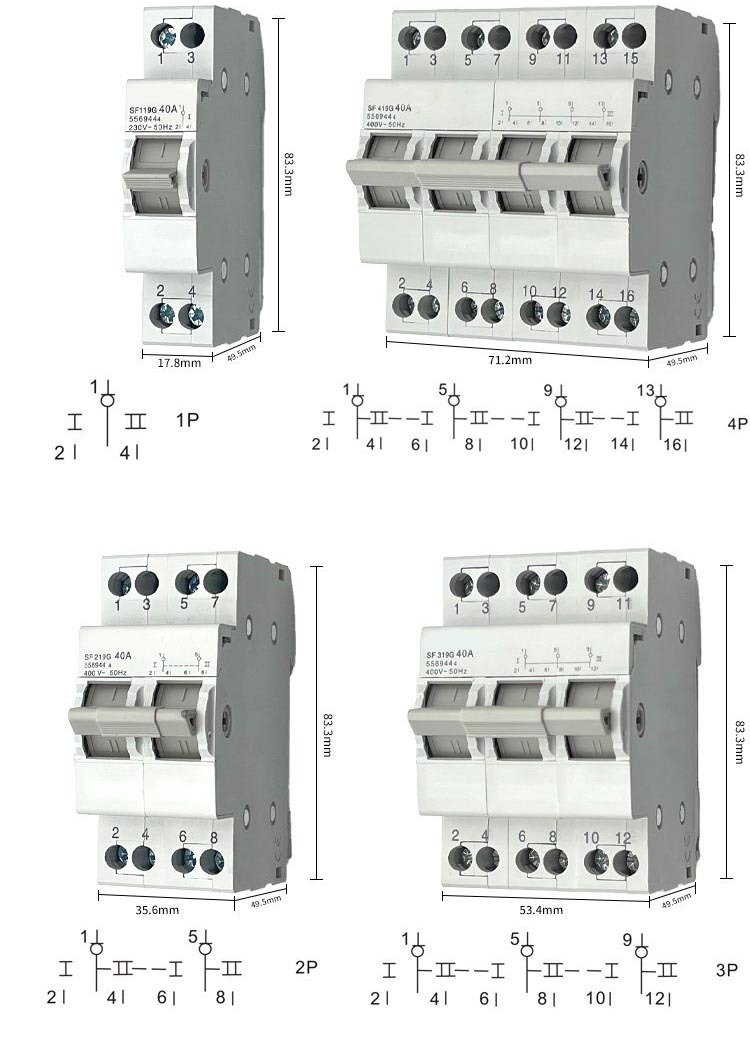

Installation dimensions
The SF219G is a rail-mounted manual dual power transfer/isolation switch (MTS/Changeover Switch) used for manual switching and isolation between two power sources. It is commonly found in distribution boxes, photovoltaic systems, and power distribution systems.
Product Parameters
| Product Model | SF 219G | |
|---|---|---|
| Pole | 1P,2P,3P,4P | |
| Rated current(A) | 10/16/20/25/32/40/63A | |
| Rated voltage(V) | 230/400 | |
| Contact form | 1-0-2 | |
| Working Temperature | -5°C~+40°C | |
| Enclosed Class | IP20 | |
| Installation | Rail installation | |
| Frequency | 50/60Hz | |
| Electrical Life | >1500 cycles | |
| Mechanical Life | >8500 cycles | |
Installation dimensions
