LMDG-32XPV IP66 PV DC Isolator Switch | 1000V/1500V Solar Disconnect
LMDG-32XPV IP66 PV DC Isolator Switch | 1000V/1500V Solar Disconnect
Model: LMDG-32XPV
Maximum DC System Voltage:1500VDC
Rated Current:32A
Number of Poles:4P
Waterproof Rating:Enclosure IP66
Connection Method:Solar connector
Standards:IECÂ 60947-3;ASÂ 60947-3
Temperature Range:-40℃-+85℃
Certifications:TUV/CE/IEC/AS/ROHS/UKCA/CCC
Polarity:No Polarity
Model: LMDG-32XPV
Maximum DC System Voltage:1500VDC
Rated Current:32A
Number of Poles:4P
Waterproof Rating:Enclosure IP66
Connection Method:Solar connector
Standards:IECÂ 60947-3;ASÂ 60947-3
Temperature Range:-40℃-+85℃
Certifications:TUV/CE/IEC/AS/ROHS/UKCA/CCC
Polarity:No Polarity
1. Product Overview
2. Key Specifications
| Parameter | Details |
|---|---|
| Rated Voltage | DC 1000V / 1500V |
| Rated Current | 32A (optional: 16A/20A/40A) |
| Poles | 2P / 4P (configurable) |
| Enclosure Rating | IP66 (waterproof, dustproof) |
| Compliance Standards | IEC 60947-3, AS60947.3, DC-PV2 |
| Connectors | MC4 compatible (male/female) |
| Operating Temperature | -40°C ~ +85°C |
| Mechanical Life | ≥10,000 operations |
| Electrical Life | ≥5,000 operations at rated load |
| Installation Type | Surface-mount, outdoor-rated |
3. Core Features

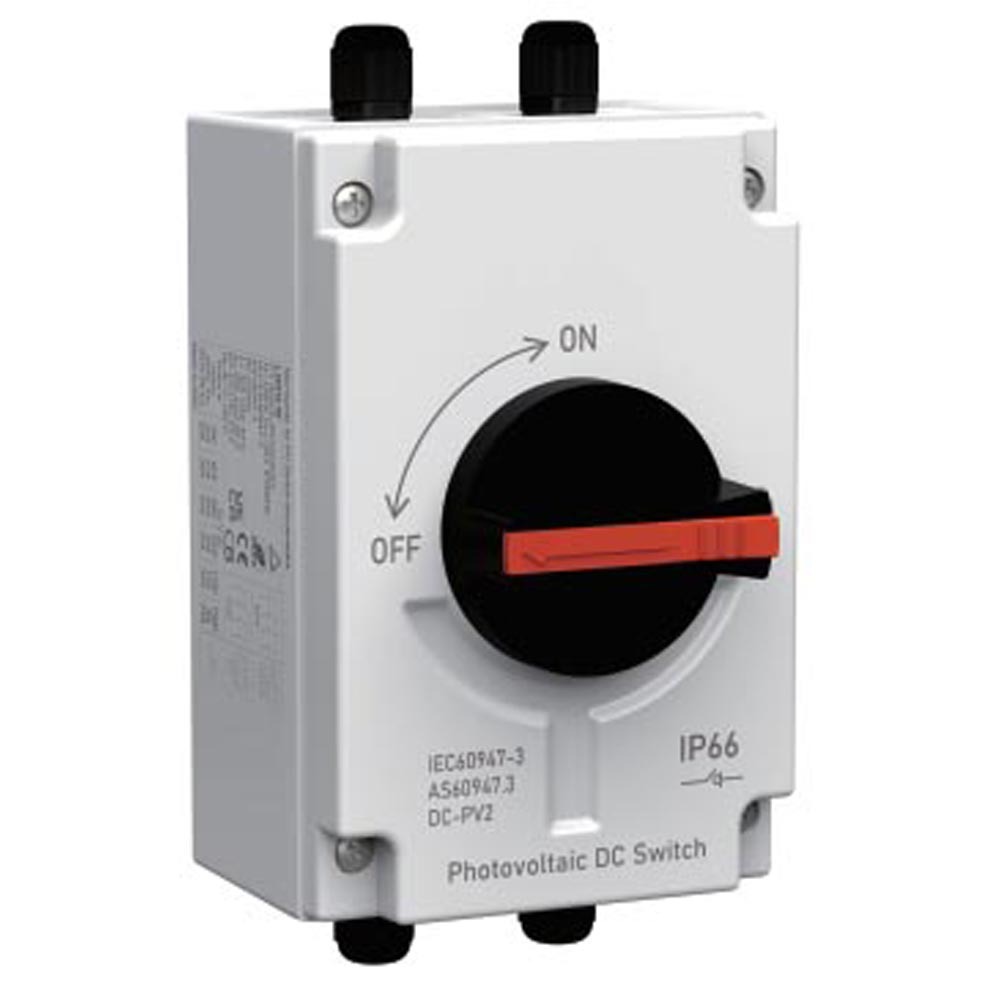

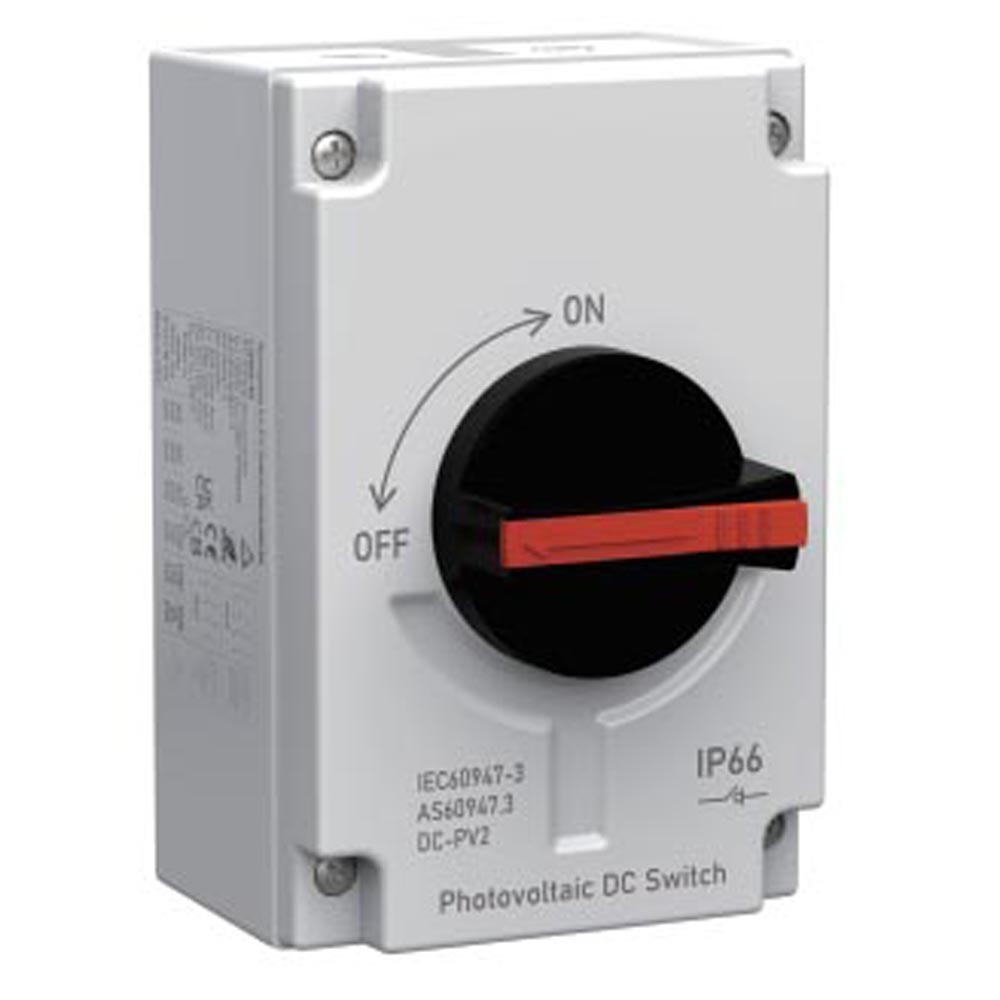

✅ IP66 Weatherproof Enclosure: Fully sealed against water, dust, and harsh outdoor conditions for reliable performance in any climate.
✅ High-Voltage DC Rating: Supports 1000V/1500V DC systems, meeting modern solar panel and inverter requirements.

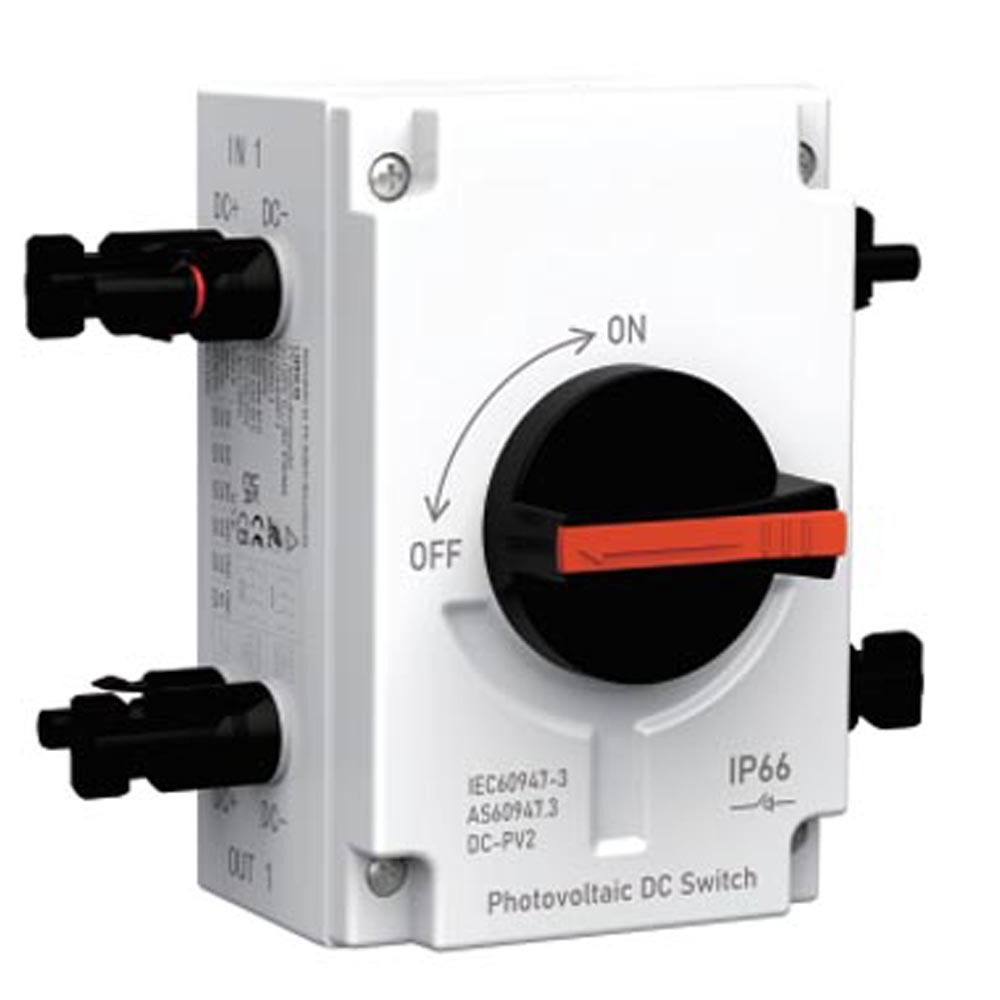

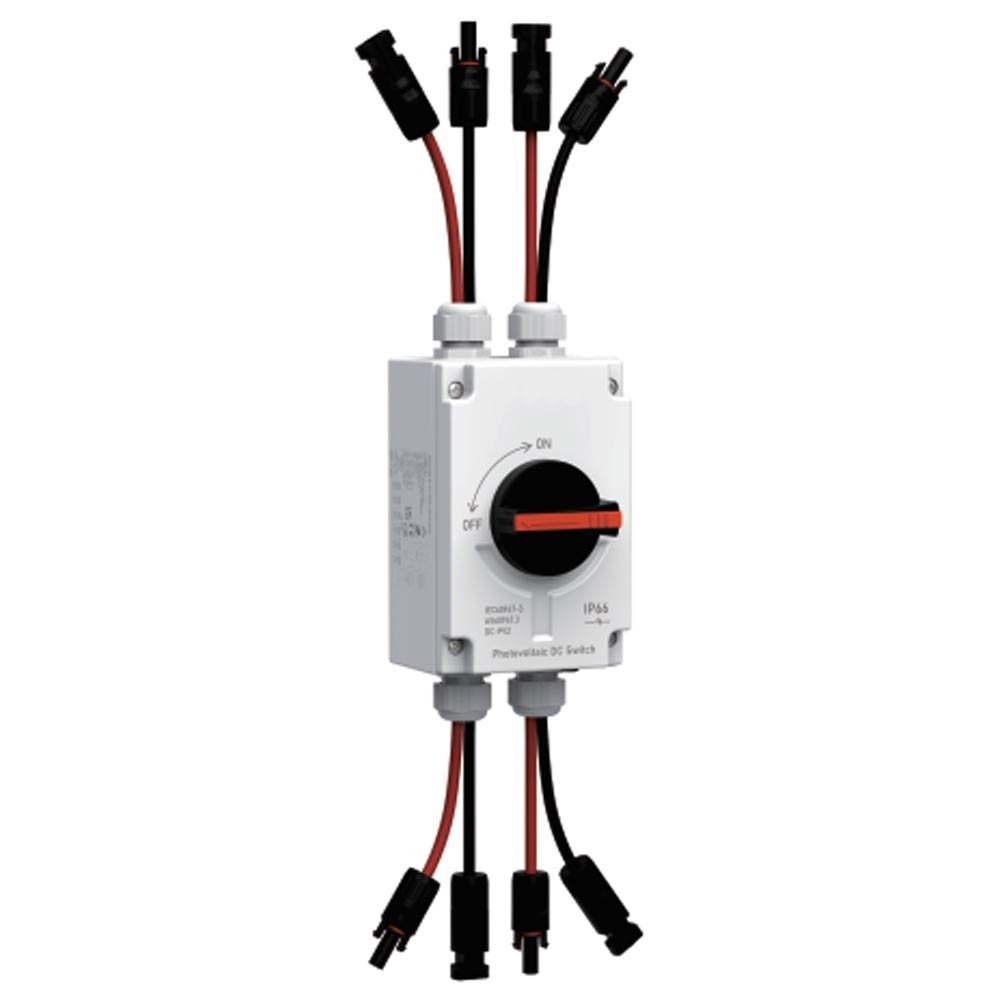

✅ MC4 Quick Connectors: Pre-installed MC4-compatible connectors for fast, tool-free installation and wiring.
✅ Clear ON/OFF Indication: Large, color-coded rotary handle with visible status marking for safe operation.

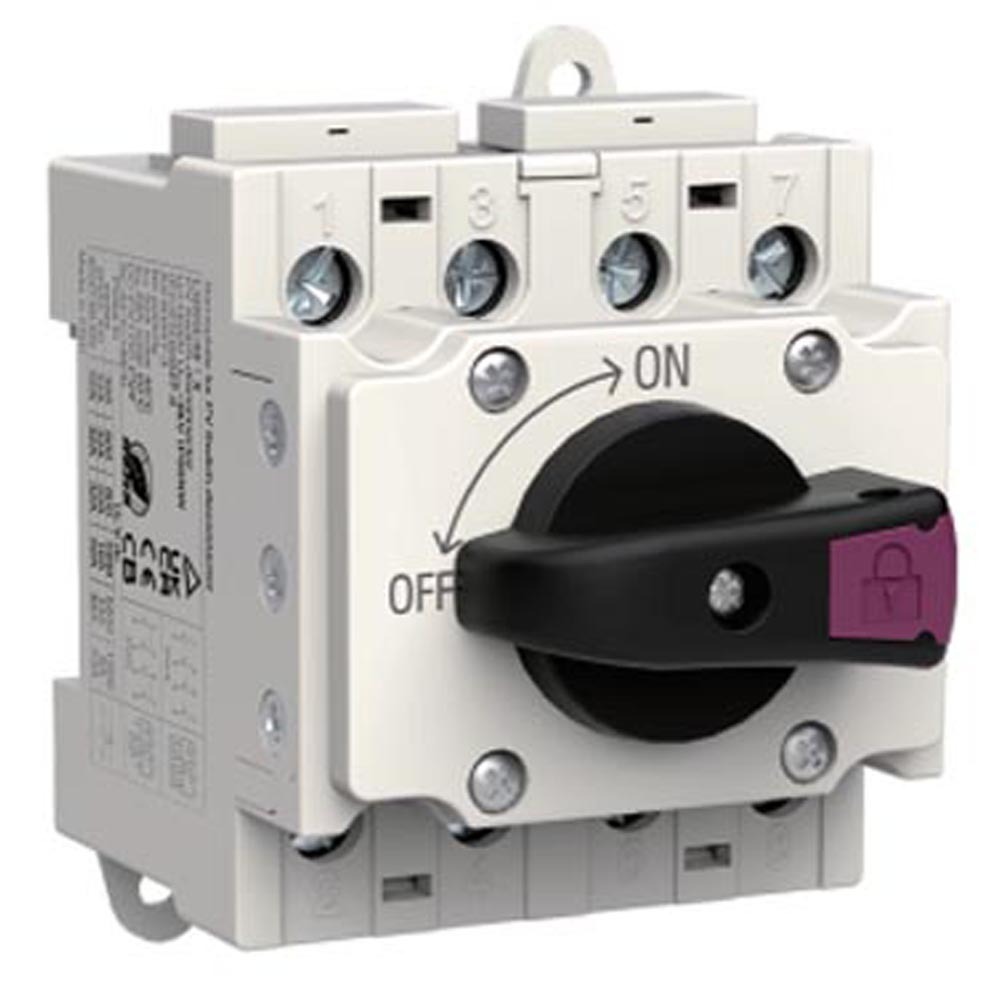

✅ Safety Lockable Design: Handle can be locked in the OFF position to prevent accidental power reconnection during maintenance.
✅ Arc Extinguishing Technology: Built-in arc suppression ensures safe switching under load, even in high-voltage solar systems.
✅ UV-Resistant Housing: Durable, UV-stabilized plastic enclosure resists fading and degradation from sunlight exposure.
4. Applications
- Residential rooftop solar systems
- Commercial solar installations
- Utility-scale solar farms
- Off-grid and hybrid solar power systems
- Solar inverter and battery storage systems
- Outdoor solar panel arrays
5. Why Choose LVMA PV DC Isolator Switch?
- Uncompromising Safety: Meets IEC 60947-3 standards for DC isolation, ensuring compliance with global solar safety codes.
- Durability for Outdoor Use: IP66 rating and UV-resistant materials guarantee long service life in harsh environments.
- Fast & Easy Installation: Pre-fitted MC4 connectors eliminate the need for crimping or specialized wiring tools.
- Versatile Compatibility: Works with all major solar panel brands, string inverters, and battery storage systems.
- Global Quality Assurance: Rigorously tested for electrical performance, weather resistance, and mechanical reliability.
- Cost-Effective Solution: Reliable performance at a competitive price point for both small and large solar projects.
6. Technical Documents & Support
- Download the full datasheet for detailed specifications, wiring diagrams, and installation instructions.
- Contact our engineering team for custom voltage/current ratings or OEM/ODM solutions.
- Request a quote with your project details for bulk pricing and lead times.
