LVMA Project | Philippines Custom Electric Power Distribution Box
Philippines has widespread commercial buildings, light manufacturing workshops, retail stores and small industrial facilities. Local power grids feature fluctuating grid voltage, frequent short‑term power surges, plus strict site electrical safety codes set by Philippine electrical regulators. Our tailor‑built distribution cabinet equipped with 1 main molded case circuit breaker and 10 branch molded case circuit breakers is engineered to match local grid conditions, construction wiring standards and daily operation habits, delivering stable power distribution, reliable fault protection and straightforward maintenance for Philippine on‑site power systems.

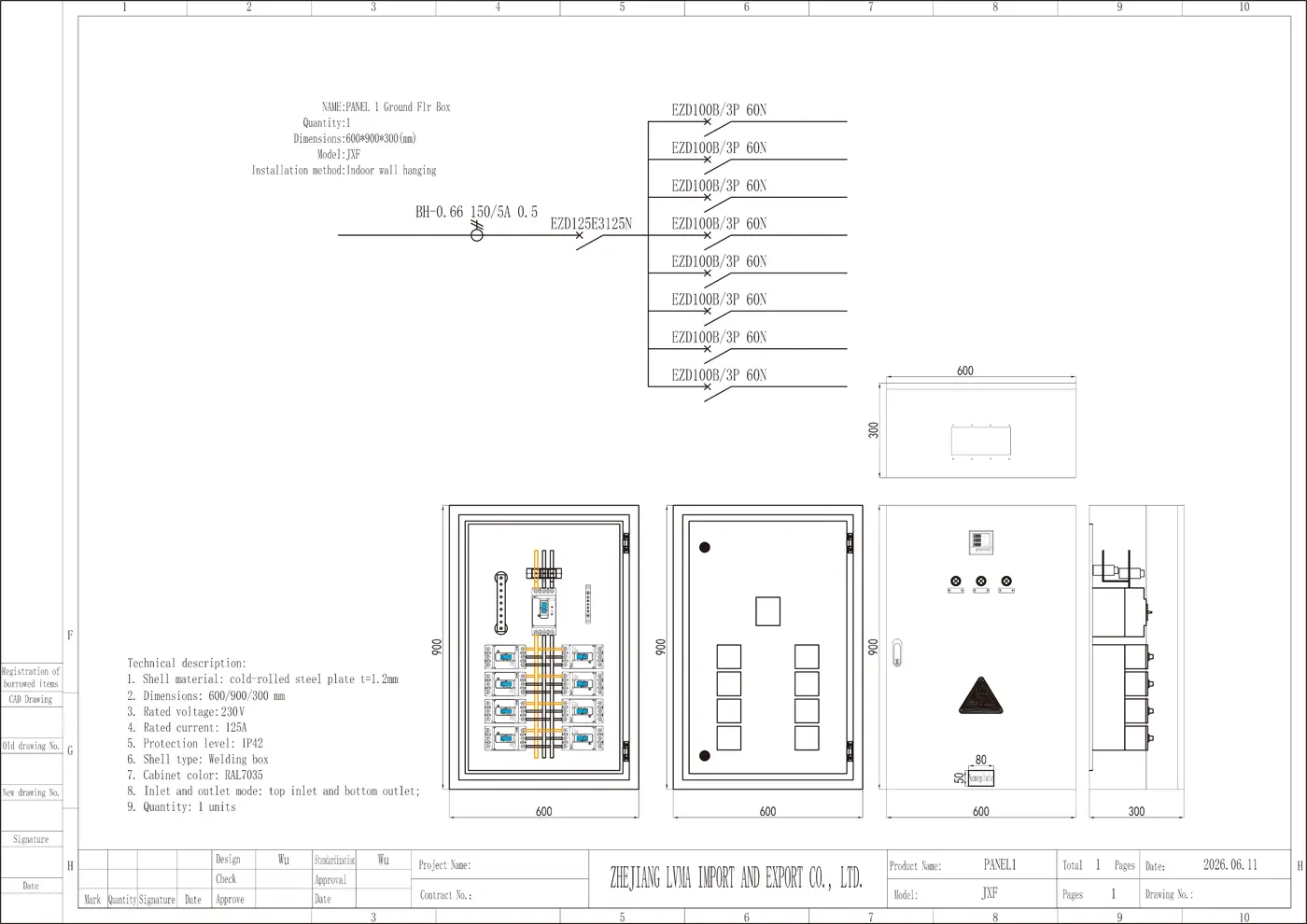

| No. | Component Name | Model Specification | Quantity | Manufacturer | Function Description |
|---|---|---|---|---|---|
| 1 | Main Distribution Panel Cabinet | JXF(600*900*300) | 1 Set | Customized | Low-voltage power distribution enclosure, cold-rolled steel plate, IP30 protection |
| 2 | Main Molded Case Circuit Breaker (MCCB) | EZD125E3125K | 1 Unit | Schneider Electric | Overload and short-circuit protection for the entire distribution system |
| 3 | Branch MCCB (Power) | EZD100E3100N | 5 Units | Schneider Electric | Power supply and protection for large-power equipment |
| 4 | Branch MCCB (Lighting) | EZD100E360N | 5 Units | Schneider Electric | Power supply and protection for lighting and small-power loads |
| 5 | Multifunction Power Meter | METSEDM3100C | 1 Unit | Schneider Electric | Real-time monitoring of voltage, current, power, energy and power factor |
| 6 | Status Indicator Lamps | 22mm LED, Red/Green/Yellow | 3 Pcs | Schneider Electric | Power supply status and fault alarm indication |
1. Internal Circuit Configuration Design
Main incoming protection (1 main MCCB)
A high‑performance molded case circuit breaker serves as the master incoming protection for the whole cabinet, mounted at the upper central section inside the enclosure. It offers two core protective functions: overload tripping when total site power draw exceeds rated capacity, and instant cutoff during short‑circuit faults on downstream wiring. The main breaker isolates power supply for full‑cabinet inspection and wiring upgrades, eliminating residual electric shock risks during maintenance work. Its breaking capacity is calibrated against typical Philippine grid short‑circuit parameters to resist transient grid surge current and prevent unexpected breaker burnout under unstable grid conditions.
Branch load distribution (10 independent branch MCCBs)

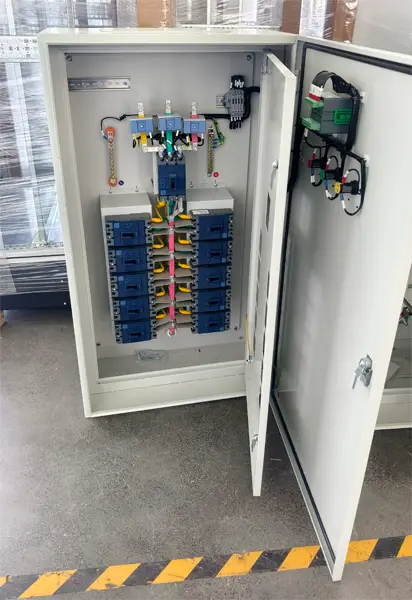

Ten branch molded case circuit breakers are split into two vertical columns (5 breakers per side) below the main breaker, creating 10 standalone power output circuits. Customers can allocate circuits flexibly per on‑site demands:
- 3–4 circuits for workshop production machinery and motor loads
- 2–3 circuits for retail lighting, commercial LED light strips and public area illumination
- 2 circuits for wall sockets, office equipment and charging stations
- Remaining reserved circuits for future equipment expansion or emergency standby loads
Each branch breaker trips independently. A wiring fault or overload on one single load will only shut down its corresponding loop, keeping all other powered facilities running normally, which reduces production downtime and business revenue loss common in Philippine commercial & factory scenarios. Phase wiring strictly follows Philippine local color coding norms: yellow for Phase A, green for Phase B, red for Phase C; dedicated separate neutral busbar and protective earth busbar comply with TN‑S grounding requirements widely adopted across Philippine construction sites, cutting electric leakage hazards for plugged‑in equipment.
2. Safety‑oriented Enclosure Structure Built for Local Use Cases

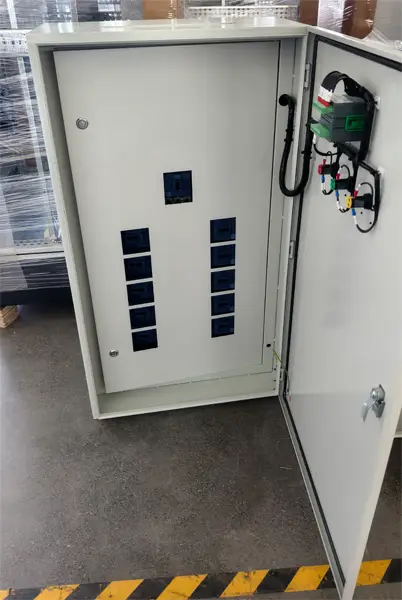

Double‑layer door anti‑shock architecture
The cabinet adopts a dual‑door safety layout: the outer lockable main door restricts unauthorized access by untrained site personnel, a common safety risk at Philippine informal construction sites and public commercial spaces. The inner steel baffle reserves operating cutouts aligned with every breaker handle. Operators can toggle breaker on/off without disassembling the inner panel, while live copper busbars and raw wiring stay fully shielded behind the metal plate to avoid accidental live‑part contact during daily switching operations.
External monitoring & warning assemblies on outer door

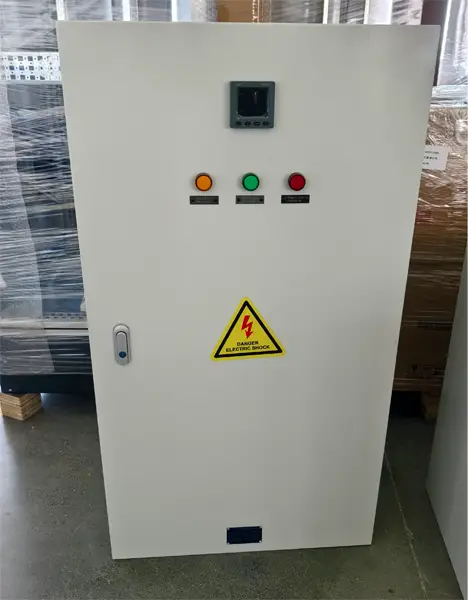

- Digital multifunction power meter mounted on the upper door face, paired with built‑in current transformers installed on the cabinet inner side. It continuously measures three‑phase voltage, operating current, real‑time power consumption and power factor. Philippine facility supervisors can track abnormal voltage swings inherent to the national grid early to arrange grid stabilization countermeasures.
- Three status indicator lamps (yellow, green, red): green confirms normal incoming grid power; yellow sends pre‑warning signals for mild overload and marginal voltage deviation; red illuminates after protective tripping triggered by short circuits or severe overloads for rapid fault localization.
- Standard international “DANGER ELECTRIC SHOCK” warning decal reminds Philippine site electricians to implement lockout‑tagout procedures before cabinet service work. The cabinet door lock prevents tampering by non‑electrical staff in crowded public business premises.
Powder‑coated cold‑rolled steel cabinet shell delivers strong rust resistance, adapted to the Philippines’ humid tropical coastal climate to slow metal corrosion indoors.
3. Suitability for Philippine Local Application Scenarios
- Small & mid‑sized light manufacturing workshops: segregate power supply for processing equipment, workshop illumination and auxiliary sockets; isolated branch tripping limits production halts during localized wiring faults.
- Shopping malls, standalone retail outlets and dining establishments: separate lighting, refrigeration equipment, cash register socket loops, safeguarding continuous operation of point‑of‑sale hardware during single‑loop breakdowns.
- Low‑rise residential commercial mixed‑use buildings: act as floor‑level power distribution cabinets for tenant load division. Reserved spare branch breakers support later tenant renovation power expansion without cabinet replacement.
- Small logistics warehouses: distribute power for warehouse lighting, pallet jack charging ports and ventilation gear. Robust short‑circuit protection mitigates fire hazards caused by tropical‑climate wiring aging.
4. Core Product Advantages Targeting Philippine Operating Conditions
- Grid disturbance adaptability: the MCCB series has surge‑resistant trip curves tuned for Philippine grid transient spikes, lowering nuisance false tripping triggered by routine grid voltage swings.
- Low maintenance overhead: standardized breaker layout, clearly color‑coded phase conductors and intuitive exterior fault indication cut down troubleshooting time for local Filipino electricians with varied skill levels.
- Regulatory compliance: grounding topology, fault protection rating and physical anti‑contact safety design align with mainstream Philippine local electrical construction codes, streamlining site electrical inspection acceptance.
- Future upgrade margin: spare branch circuits and surplus busbar connection capacity accommodate incremental load expansion typical for growing Philippine small businesses, removing the need for whole‑cabinet replacement during facility renovation.
Closing Remarks
This customized 1 main breaker + 10 branch breakers distribution cabinet balances compact footprint, reliable fault isolation, tropical corrosion resilience and regulatory compliance. It resolves prevalent local pain points including unstable grid power, site electric shock risks and iterative load expansion across the Philippines, serving as a cost‑effective universal power distribution solution for indoor commercial and light industrial deployment nationwide.
