1. What Is an Automatic Transfer Switch Panel?
An Automatic Transfer Switch Panel (ATS Panel) is a compact, fully pre-wired low-voltage intelligent electrical control device that continuously monitors and automatically switches between two independent power sources. It is widely configured with conventional utility grid power and various backup power equipment, including diesel generators, solar inverter systems, wind power equipment, and UPS power supplies, delivering seamless, uninterrupted power transfer for all types of critical electrical loads.
Integrated with a professional ATS switch core, intelligent control circuit, status indicator system, and multi-layer safety protection modules in a lightweight and standardized enclosure, the ATS panel functions as the intelligent core control unit of a dual-power distribution system. It eliminates the need for manual power switching, instantly responds to various grid abnormalities and power faults, and ensures stable and continuous power supply for terminal electrical equipment.
Compliant with IEC 61439 industrial electrical standards, standard ATS panels feature built-in overvoltage, undervoltage, phase loss, and overload protection, ensuring safe and stable power switching for residential, commercial, and light industrial scenarios.
2. How Does an ATS Panel Work?
The working logic of an automatic transfer switch panel is fully automated, with three stable working states to adapt to grid changes, requiring no human intervention during the whole process:
Normal Grid Standby State
When the municipal grid operates stably with normal voltage and phase sequence, the ATS panel automatically uses the main grid to supply power to loads. The backup power circuit remains in real-time monitoring standby mode. All indicator lights work normally to display real-time power status.
Automatic Switching During Grid Faults
Once the panel detects main power faults including power outage, undervoltage, overvoltage, phase loss, and phase imbalance, it will trigger the switching program after a short anti-interference delay. It automatically cuts off the main grid circuit and connects the backup power source within milliseconds, realizing seamless power supply switching without load shutdown.
Automatic Reset After Power Recovery
When the main grid power is fully restored and runs stably for the preset delay time, the ATS panel will automatically switch the load back to the municipal power supply, disconnect the backup generator or inverter, and return to the normal monitoring standby state. It also supports manual switching mode for daily maintenance and equipment testing.
3. Components of Automatic Transfer Switch Panel
A standard automatic transfer switch panel adopts a modular integrated design, with every component professionally configured and pre-wired for plug-and-play convenience. Each part performs an independent function and cooperates closely to achieve real-time power monitoring, fast automatic switching, circuit safety protection, and working status feedback. Below is a detailed introduction to the full components of an automatic transfer switch panel:

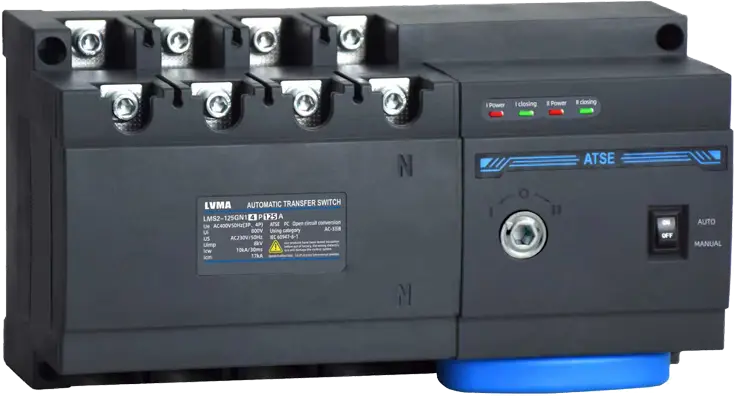

- ATS Automatic Transfer Switch Core: As the core functional component of the entire panel, this motor or solenoid type ATS switch undertakes all dual power switching tasks. It supports 24/7 real-time monitoring of mains and standby power voltage, current, and phase sequence. Equipped with a built-in mechanical and electrical double interlock structure, it completely prevents the simultaneous closure of the main power and standby power circuits, avoiding dangerous short-circuit accidents caused by parallel power supply. It features ultra-fast switching response and stable action, adapting to frequent power fluctuation scenarios.

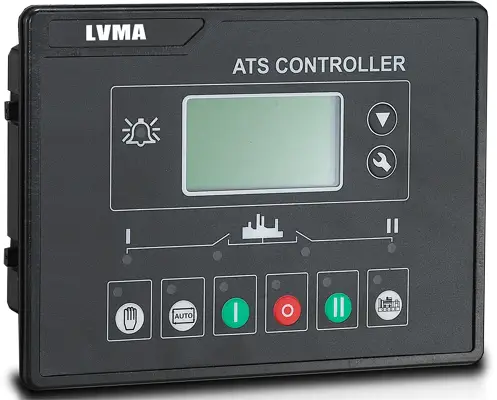

- Intelligent automatic switching controller: This intelligent controller serves as the “brain” of the ATS panel and dominates the entire working logic of the device. It can automatically identify various power faults such as power outages, undervoltage, overvoltage, phase loss, and three-phase unbalance. Users can freely adjust the switching delay time and mains power recovery delay time according to actual load needs. In addition, the built-in fault recording and self-diagnosis function can accurately record fault codes and working hours, which greatly facilitates daily inspection and quick troubleshooting.

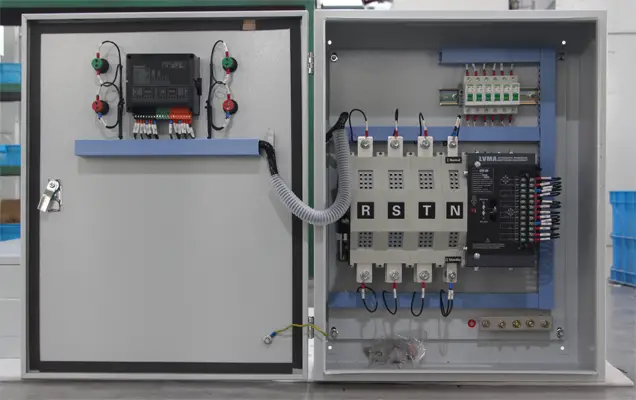

- Complete Circuit Protection Devices: The panel is equipped with matched miniature circuit breakers (MCB) and protective relays, forming a multi-layer safety protection system. It can effectively cut off the circuit in case of overload, short circuit, overvoltage, and undervoltage, preventing circuit burnout and terminal equipment damage caused by abnormal current and voltage. This multi-protection design greatly improves the safety and stability of power distribution and avoids secondary faults during power switching.
- Visual Status Indicator System: A full set of high-brightness LED indicator lights is configured on the panel surface, including mains power indicator, standby power indicator, running status indicator, and fault alarm indicator. The working state of the ATS panel can be judged intuitively at a glance without professional detection equipment. The high-brightness design also supports clear identification in dark electrical rooms and narrow installation environments, improving daily operation and maintenance efficiency.
- Flame-Retardant Protective Enclosure & Wiring Terminal: The outer shell is made of high-strength flame-retardant ABS material or thickened cold-rolled steel plate, with excellent dustproof, anti-leakage, anti-corrosion and flame-retardant performance, meeting indoor electrical safety standards. The internal high-precision wiring terminals and tinned copper busbars have strong conductivity and low temperature rise, ensuring stable current transmission for a long time. The standardized wiring structure is neat and safe, which is convenient for on-site wiring, fixation and later maintenance.
4. Key Advantages of ATS Panels
4.1 Compact Size & Space-Saving Installation
The automatic transfer switch panel adopts a highly integrated miniaturized structural design, compact and lightweight with a small footprint. It supports flexible installation methods including wall mounting and embedded installation, adapting perfectly to standard power distribution boxes, indoor electrical walls, and narrow electrical equipment spaces. The streamlined structure fits most conventional civil, commercial and light industrial power distribution layouts without occupying excess equipment room space.
4.2 Fast & Seamless Power Switching
The intelligent monitoring system responds to grid faults in real time, completing power switching in milliseconds. It avoids equipment shutdown, data loss, and production interruption caused by power gaps, ensuring continuous operation of critical loads.
4.3 High Safety & Low Failure Rate
Dual interlock anti-parallel power supply design and multiple circuit protection mechanisms eliminate potential safety hazards such as short circuits and electric leakage. The mature circuit structure ensures stable long-term operation with almost zero misoperation.
4.4 Cost-Effective & Easy Maintenance
ATS panels feature a simplified and reasonable internal modular structure with standardized pre-wired design. The overall structure is stable with fewer vulnerable parts, eliminating the need for complicated professional debugging during installation and daily use. Routine maintenance only requires simple regular inspection of circuit status and component operation, effectively saving time, labor and daily operational maintenance costs for power system management.
4.5 Wide Compatibility
It can be perfectly matched with diesel generators, solar power systems, wind power equipment, and UPS power supplies, adapting to multiple power supply combination scenarios and meeting the power guarantee needs of different scenarios.
5. Common Applications of Automatic Transfer Switch Panels
Thanks to its compactness and high cost performance, ATS panels are widely used in medium and small scenarios that require uninterrupted power supply:
- Commercial Buildings: Used for emergency lighting, elevators, fire control equipment, and security monitoring systems in office buildings, shopping malls, and hotels to ensure building safety during power outages.
- Small Medical Facilities: Provide power guarantee for community clinics, emergency monitoring equipment, and small medical devices to avoid medical risks caused by power failures.
- Residential & Villa Projects: Match household generators and solar power systems to realize automatic switching of municipal power and standby power for daily household electricity.
- Light Industrial Workshops: Protect small automated equipment, testing instruments, and packaging machinery from power outage damage and reduce production losses.
- Communication & Monitoring Sites: Ensure 24-hour stable operation of small communication base stations, road monitoring, and smart community equipment.
6. How to Choose the Right ATS Panel?
To avoid mismatch and safety risks, focus on the following parameters when purchasing an automatic transfer switch panel:
- Rated Voltage & Current: Select 220V single-phase for household and small commercial use, and 380V three-phase for industrial equipment. Match the rated current according to the actual load power to prevent overload operation.
- Switching Performance: Prioritize products with adjustable delay switching and anti-interference functions to avoid frequent switching caused by instantaneous grid fluctuation.
- Protection Grade: Choose standard indoor dustproof panels for dry environments; select enhanced protection models for humid and dusty workshop environments.
- Certification & Quality: Ensure compliance with international electrical safety standards to guarantee product stability and safety in long-term operation.
7. Conclusion
An automatic transfer switch panel is a compact, efficient, and cost-effective core device for uninterrupted power supply systems. It solves the problem of power supply interruption in small and medium commercial, civil, and light industrial scenarios through intelligent automatic dual-power switching, effectively reducing power failure losses and improving power supply safety.
With flexible installation adaptability, stable operating performance and cost-efficient design, ATS panels serve as the ideal standalone power switching solution for small and medium-scale uninterrupted power supply projects. Choosing a high-quality standard ATS panel can provide long-term stable and reliable power protection for various civilian, commercial and light industrial electrical equipment.
FAQs About Automatic Transfer Switch Panel
Q1: Is an ATS panel the same as a transfer switch?
An ATS panel is a complete assembled control unit containing an automatic transfer switch, protection circuits, and indicator systems. A single transfer switch is only one component, while the ATS panel is an integrated finished product ready for direct installation and use.
Q2: Can an ATS panel work with solar power systems?
Yes. Most universal ATS panels support matching solar inverters, wind power equipment, and generators as standby power sources, realizing automatic switching between new energy power and municipal grid power.
Q3: Does an ATS panel require professional installation?
ATS panels are pre-wired for plug-and-play use, but formal electrical installation and commissioning by professional electricians are still required to ensure circuit safety and compliance with electrical specifications.
