What Is a DC Fuse? Definition, Working Principle, Types & Uses
What Is a DC Fuse? Definition, Working Principle, Types & Uses
In modern renewable energy, automotive, and off-grid electrical setups, DC (Direct Current) power dominates core power transmission. From residential solar panel arrays and battery banks to electric vehicles and marine power systems, stable DC power supply relies heavily on reliable overcurrent protection. This is where a DC fuse becomes an irreplaceable component.
Many users mistakenly replace DC fuses with ordinary AC fuses for cost savings, which leads to arc burning, fuse failure, and even serious safety accidents. Understanding what a DC fuse is, how it works, and its unique advantages is critical for system installers, DIY enthusiasts, and electrical engineers. This guide covers all core knowledge of DC fuses to help you select and use them correctly.
What Is a DC Fuse?
A DC fuse is a current-limiting protective device specifically manufactured for DC circuits. It consists of a fusible metal element, insulating housing, and arc-extinguishing medium (high-purity quartz sand). Installed in series with DC circuits, it automatically melts and breaks the circuit when overcurrent or short-circuit current occurs, isolating faulty circuits and protecting electrical equipment, wires, and users from damage and electric hazards.
Different from AC circuits with natural current zero-crossing points, DC current maintains a continuous stable flow without periodic zero crossing. This makes arc extinction far more difficult in DC fault conditions. Therefore, DC fuses adopt exclusive structural and material designs to solve the arc extinguishing problem that ordinary AC fuses cannot handle .
How Does a DC Fuse Work?
The working mechanism of a DC fuse is simple but highly precise, based on the thermal effect of current. Its complete working process includes three core stages:
1. Normal Working State
When the DC circuit operates within the rated current range, the fusible element inside the fuse generates minimal heat that dissipates quickly. The element remains intact, and the circuit conducts power normally without any power loss or interruption.
2. Overcurrent Response
When circuit overload (excessive load power) or short circuit occurs, the instantaneous current surges far beyond the rated value. The fusible metal element rapidly accumulates high temperature and melts instantly, cutting off the current path.
3. Arc Extinguishing & Circuit Isolation
The biggest challenge of DC circuit protection is the continuous electric arc generated after the fuse element melts. DC fuses are filled with high-density quartz sand inside the housing. When an arc forms, the quartz sand quickly cools, decomposes, and extinguishes the arc, avoiding arc re-ignition and continuous circuit conduction. This core design ensures thorough circuit isolation and eliminates fire risks .
DC Fuse vs AC Fuse: Key Differences
Most electrical safety failures in DC systems stem from misusing AC fuses. The following table clearly shows the essential differences between DC fuses and AC fuses, explaining why they are not interchangeable:
| Comparison Item | DC Fuse | AC Fuse |
| Current Feature Adaptation | Adapts to continuous non-zero-crossing DC current | Relies on AC periodic zero crossing to extinguish arcs naturally |
| Arc Extinguishing Design | Professional quartz sand filling, strong active arc-quenching ability | Simple structure, weak arc extinction for continuous current |
| Application Scenarios | Solar PV, battery, EV, off-grid DC systems | Household mains, commercial AC power grid equipment |
| Safety Performance | No arc re-ignition, high safety for long-term DC operation | Prone to arc retention and burnout in DC circuits |
Critical Reminder: Using an AC fuse in a DC circuit is a severe safety hazard. It cannot completely extinguish DC arcs, which may cause wire burning, equipment damage, or even electrical fires .
Common Types of DC Fuses & Their Applications
DC fuses are classified by structure, response speed, and application scenarios. The two most widely used types in the market are as follows:
1. Din-Rail DC Fuses
This is the most mainstream DC fuse type, with common specifications of 10×38mm and 10×85mm. It features a compact size, low internal resistance, and stable performance. It is widely installed in PV combiner boxes, string inverter inputs, and small battery energy storage systems to protect single-string solar modules and DC cables .

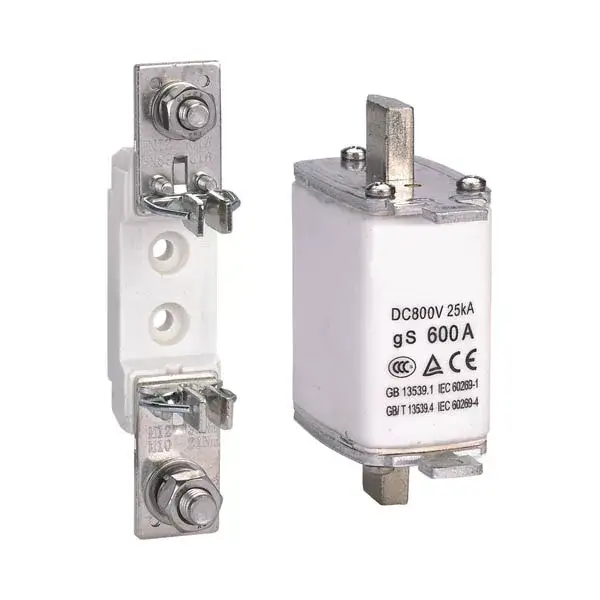

2. High-Voltage DC Fuses
Rated for high DC voltage (up to 1500V DC), these fuses are suitable for large-scale photovoltaic power stations, industrial battery energy storage systems, and electric vehicle high-voltage battery packs. They can withstand high ambient temperatures and reverse current impact, complying with IEC 60269-6 international standards .
Top Applications of DC Fuses
With the rapid development of new energy industries, the application scope of DC fuses continues to expand. The core usage scenarios include:
Solar PV Systems: Protect solar panels, PV strings, and combiner boxes from short circuits and reverse current backflow, ensuring stable operation of off-grid and grid-tied solar systems .
Battery Energy Storage Systems: Safeguard lead-acid and lithium battery banks, avoid overcurrent damage during charging and discharging, and prevent battery thermal runaway risks.
Electric Vehicles & E-Bikes: Protect vehicle high-voltage DC circuits, battery packs, and motor control systems to ensure driving safety.
Marine & RV Power Systems: Adapt to harsh outdoor environments, provide stable DC overcurrent protection for off-grid mobile power systems.
Industrial DC Equipment: Protect DC power supplies, servo equipment, and precision industrial control circuits.
How to Choose the Right DC Fuse? (Buying Guide)
Selecting a matching DC fuse is the key to ensuring system safety and stability. Follow these 4 core principles:
1. Match DC Voltage Rating
The fuse’s rated DC voltage must be higher than the system working voltage. For example, a 1000V DC system requires a 1000V or 1500V DC fuse; low-voltage fuses cannot extinguish high-voltage DC arcs.
2. Correct Rated Current
The fuse rated current should be 1.2–1.5 times the system’s maximum working current. Excessively small current will cause frequent fuse blowing, while excessively large current fails to provide effective protection.
3. Confirm Response Type
Choose fast-acting types for precision electronic circuits and delay types for inductive load systems to avoid misoperation caused by instantaneous current surge.
4. Comply with Industry Standards
Prioritize DC fuses that meet IEC 60269-6 PV industry standards, with high temperature resistance, UV resistance, and reverse current resistance for outdoor new energy systems .
FAQs About DC Fuses
Q1: Can I use an AC fuse for DC circuits?
No. AC fuses cannot extinguish continuous DC arcs, which will lead to arc persistence, circuit failure, and potential fire hazards. Only professional DC fuses are applicable for DC systems .
Q2: What is the main function of a DC fuse?
It cuts off overcurrent and short-circuit current in DC circuits, protects electrical equipment and cables from burnout, and eliminates electrical fire risks caused by DC fault current.
Q3: What’s the lifespan of a DC fuse?
Under normal rated working conditions, DC fuses have a long service life with no aging failure. They only blow and need replacement when overcurrent or short-circuit faults occur.
Conclusion
A DC fuse is the core safety barrier of all direct current power systems. Its unique arc-quenching design and professional current-limiting performance solve the protection pain points that ordinary AC fuses cannot cover. Whether for residential solar power, battery energy storage, electric vehicles, or industrial DC equipment, selecting a standard and suitable DC fuse is the foundation of system safe and stable operation.
When designing and maintaining DC electrical systems, always abandon the wrong practice of AC-DC fuse replacement. Standardized selection and installation of DC fuses can effectively reduce equipment failure rates and avoid major safety accidents.
