PV Combiner Box: The Ultimate Guide for Solar System
PV Combiner Box: The Ultimate Guide for Solar System
A high-performance PV combiner box is the unsung backbone of every reliable solar PV system. While solar panels and inverters often take the spotlight, the PV combiner box plays a critical role in consolidating multiple solar string outputs, protecting electrical circuits, reducing fire risks, and stabilizing overall system performance. Whether you are designing a residential rooftop solar setup, a commercial industrial PV system, or a large-scale utility solar farm, selecting the right PV combiner box directly impacts long-term operational safety, energy output efficiency, and maintenance costs.
In this complete guide, we will break down what a PV combiner box is, its core functions, key components, main types, professional selection criteria, installation tips, and common troubleshooting solutions to help you make informed solar project decisions .
What Is a PV Combiner Box?
A PV combiner box (also known as a solar combiner box or PV junction box) is a specialized DC electrical distribution device designed exclusively for photovoltaic power systems. It serves as a centralized connection hub that aggregates electric current from multiple solar panel strings into a single unified output before transmitting power to the solar inverter.
Unlike ordinary electrical distribution boxes, professional PV combiner boxes are engineered to withstand harsh outdoor environments, extreme voltage fluctuations, and continuous DC power operation. They comply with global solar electrical standards, including NEC 690, IEC 60269, and UL 1449, making them suitable for grid-tied, off-grid, and hybrid solar power systems worldwide.
Core Functions of a PV Combiner Box in Solar Systems
Many solar system owners and installers underestimate the value of a quality PV combiner box. Beyond simple string combination, it provides multi-layer protection and intelligent management for solar PV systems. Its key functions are listed below:
1. Centralized String Combination & Wiring Optimization
Large and medium-sized PV systems consist of dozens or even hundreds of independent solar panel strings. A PV combiner box collects DC power from all separate strings, simplifies complex on-site wiring, reduces cable usage, and makes the entire PV array layout neater and more standardized. This centralized structure also greatly lowers subsequent inspection and maintenance difficulties.
2. Overcurrent & Short-Circuit Protection
Each string inside the PV combiner box is equipped with an independent DC fuse or circuit breaker. When abnormal conditions such as string short circuits, reverse current, or overload current occur, the protection component will automatically disconnect the faulty string. This effectively prevents single-string faults from spreading to the entire PV array, avoiding equipment burnout and solar system downtime.
3. Lightning & Surge Voltage Protection
Premium PV combiner boxes are built-in with DC surge protection devices (SPDs) that absorb and clamp transient overvoltage caused by lightning strikes, thunderstorms, or grid voltage surges. This core protection feature safeguards expensive solar inverters, charge controllers, and battery banks from irreversible damage, drastically extending the service life of the entire solar system.
4. Safe Isolation & Easy Maintenance
Equipped with professional DC disconnect switches, the PV combiner box allows installers and maintenance workers to manually cut off DC power output during equipment inspection, component replacement, or system emergencies. It ensures zero-voltage safe operation, eliminates electric shock risks, and fully complies with global solar construction safety standards.
5. Intelligent Real-Time Monitoring (Advanced Models)
Modern smart PV combiner boxes support string-level real-time monitoring, which can track real-time current, voltage, power generation data, and fault status of each solar string. The system automatically alarms for abnormal power generation, string failure, or line aging problems, helping operators quickly locate faults and reduce power generation losses.
Key Components of a Standard PV Combiner Box
A qualified PV combiner box adopts industrial-grade components with high temperature resistance, aging resistance, and anti-oxidation performance. The core internal components include:
- DC Fuses/Fuse Holders: Independent overcurrent protection for each PV string, adopting UL 2579 and IEC 60269-6 certified specifications to adapt to DC high-voltage working environments.
- DC Circuit Breaker/Isolator Switch: Main circuit control and manual power cut-off device for safe system operation and maintenance.
- DC Surge Protection Device (SPD): Absorbs lightning surges and transient overvoltage, compliant with UL 1449 and IEC 61643-31 safety certifications.
- Copper Busbar: High-conductivity integral busbar ensures stable current transmission and low power loss.
- Waterproof & Dustproof Enclosure: Usually adopts IP65/IP67 industrial-grade shell, made of ABS or stainless steel, resistant to rain, snow, wind, sand, and UV radiation.
- Monitoring Module (Smart Version): Collects and uploads string operation data to realize remote intelligent management.
Main Types of PV Combiner Boxes
PV combiner boxes can be classified according to application scenarios, string numbers, and functional configurations to meet diverse solar project demands:

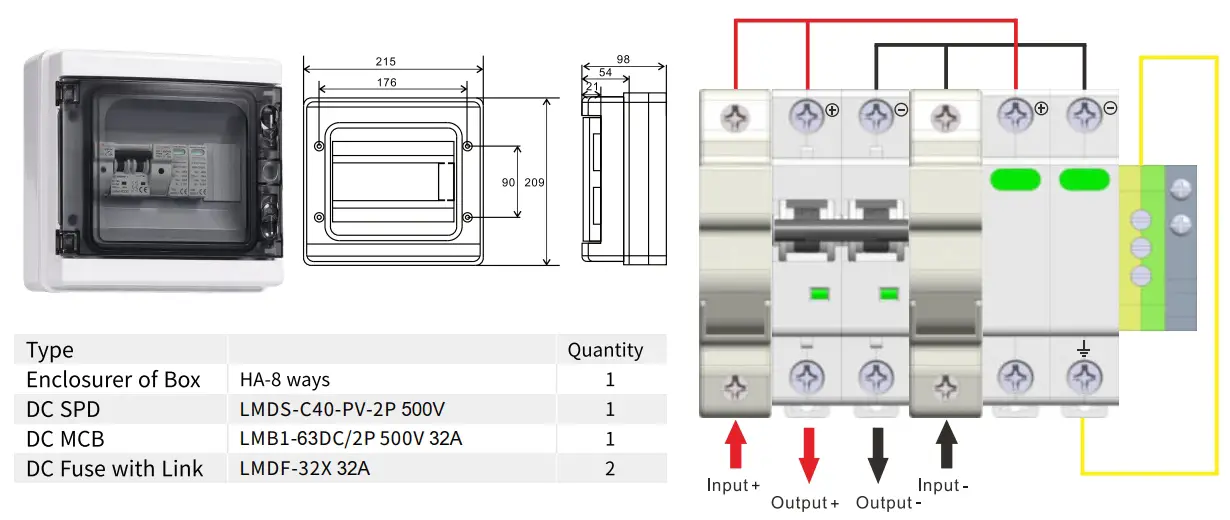

1 String Input 1 String Output Dc 500V

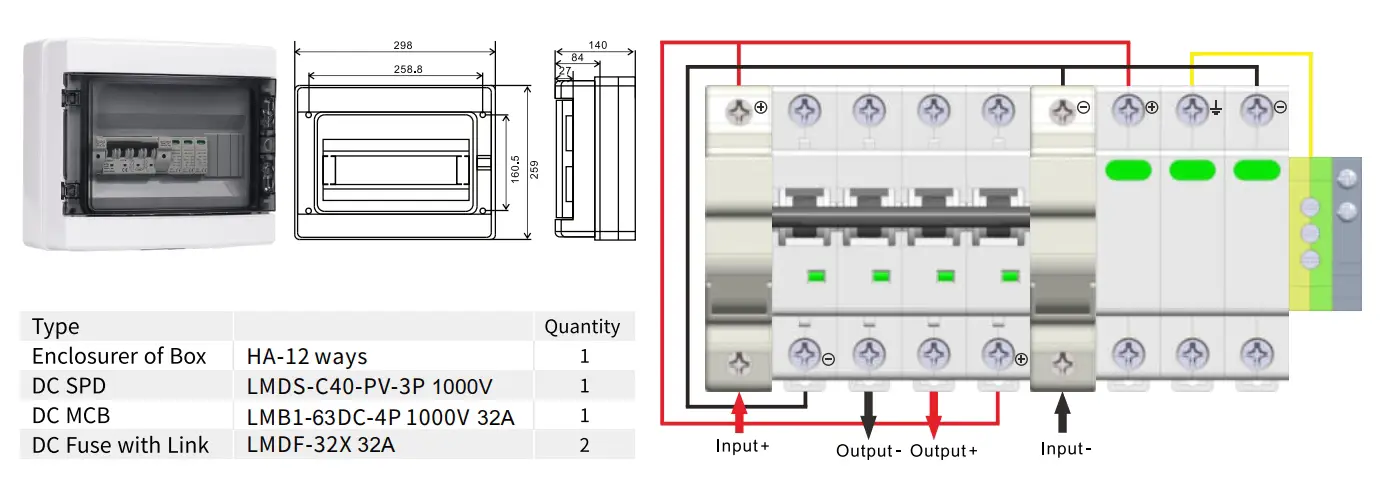

1 String Input 1 String Output Dc 1000V

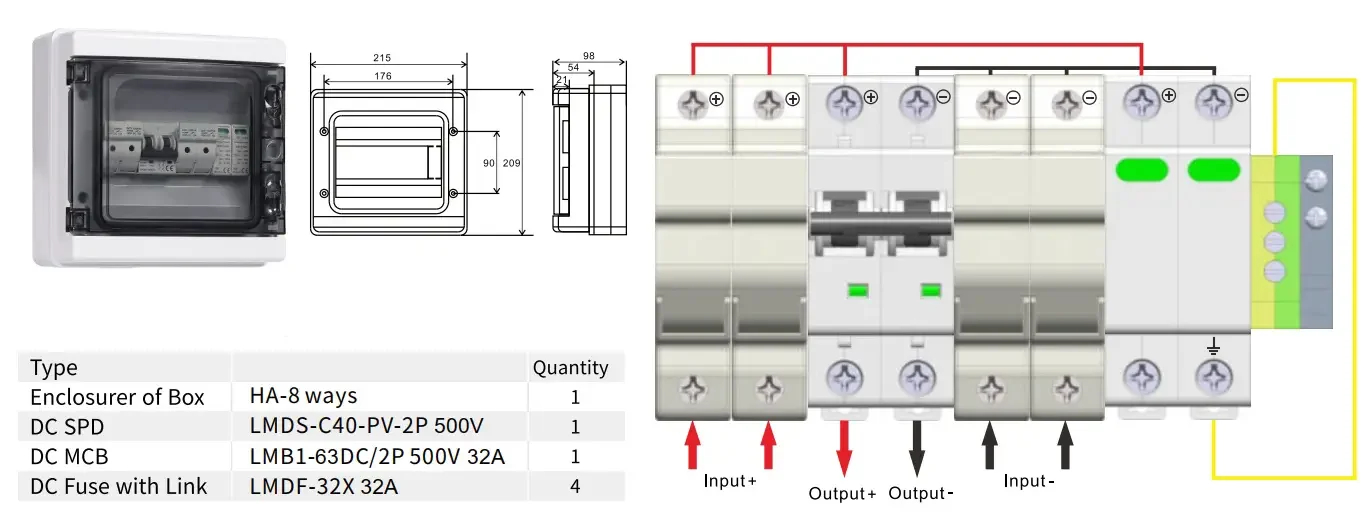

2 String Input 1 String Output Dc 500V

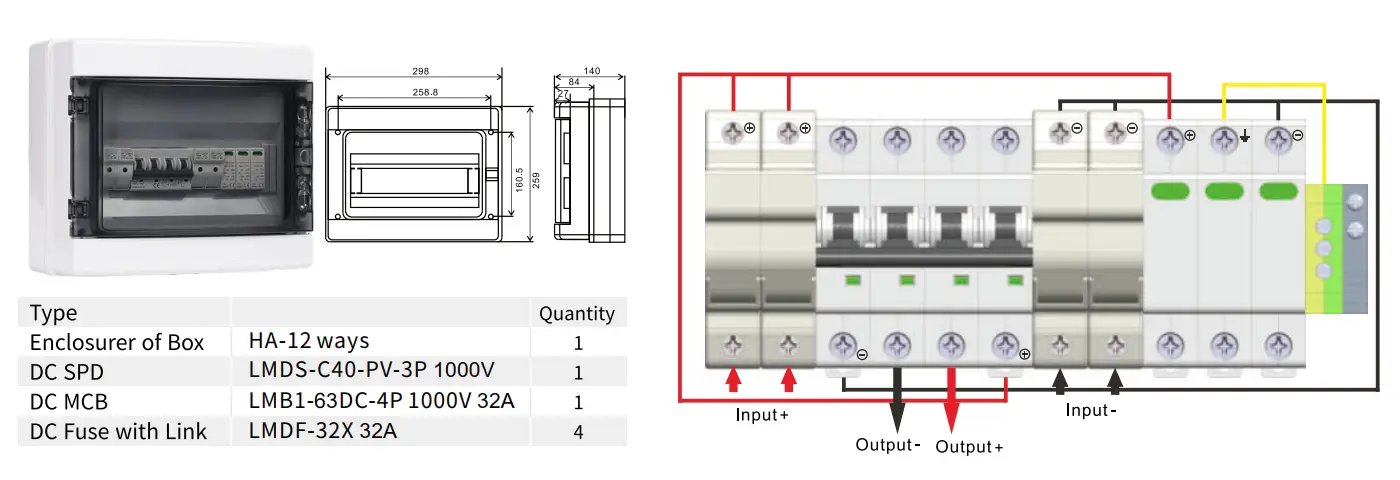

2 String Input 1 String Output Dc 1000V

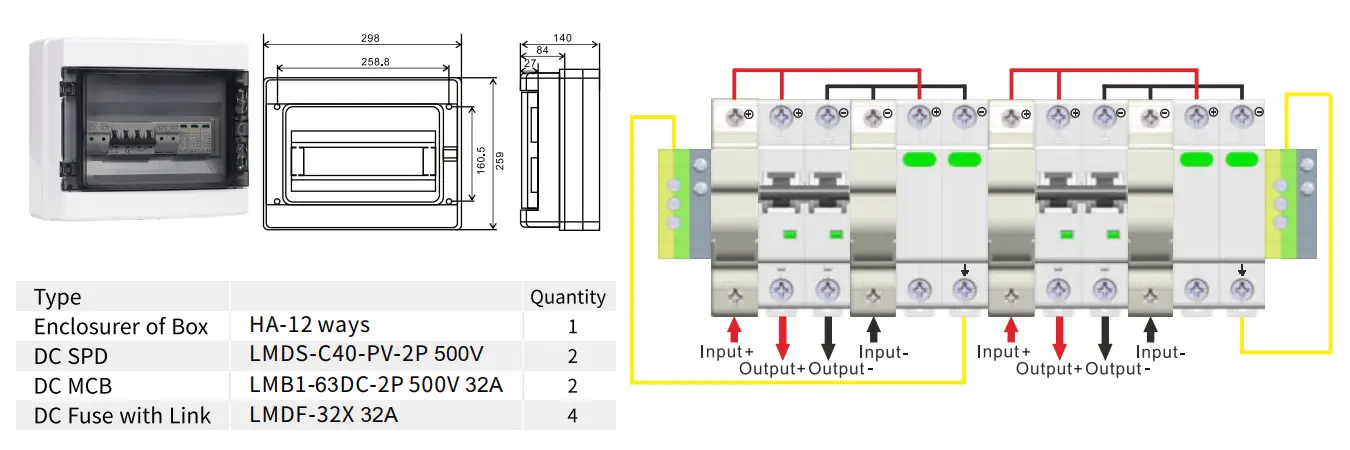

2 String Input 2 String Output Dc 500V

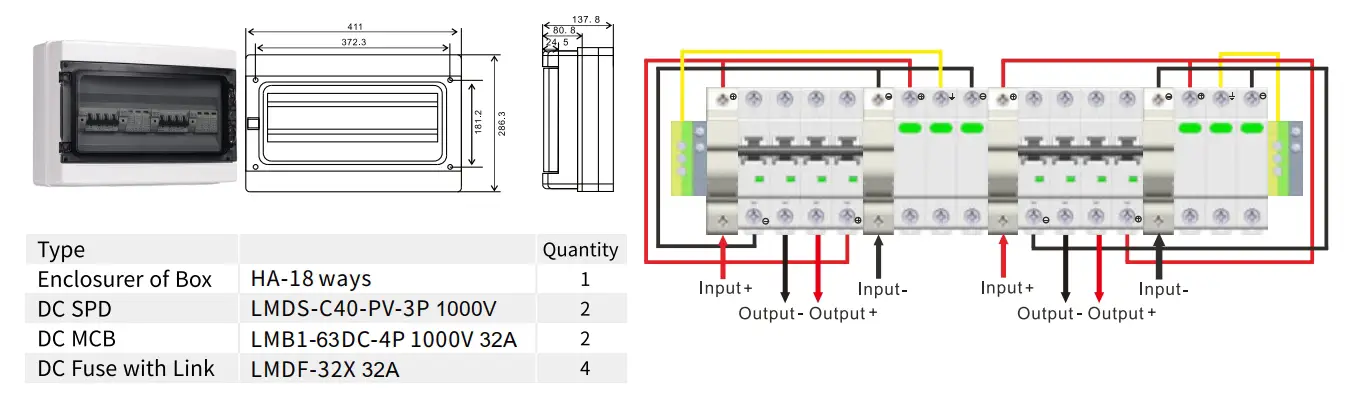

2 String Input 2 String Output Dc 1000V

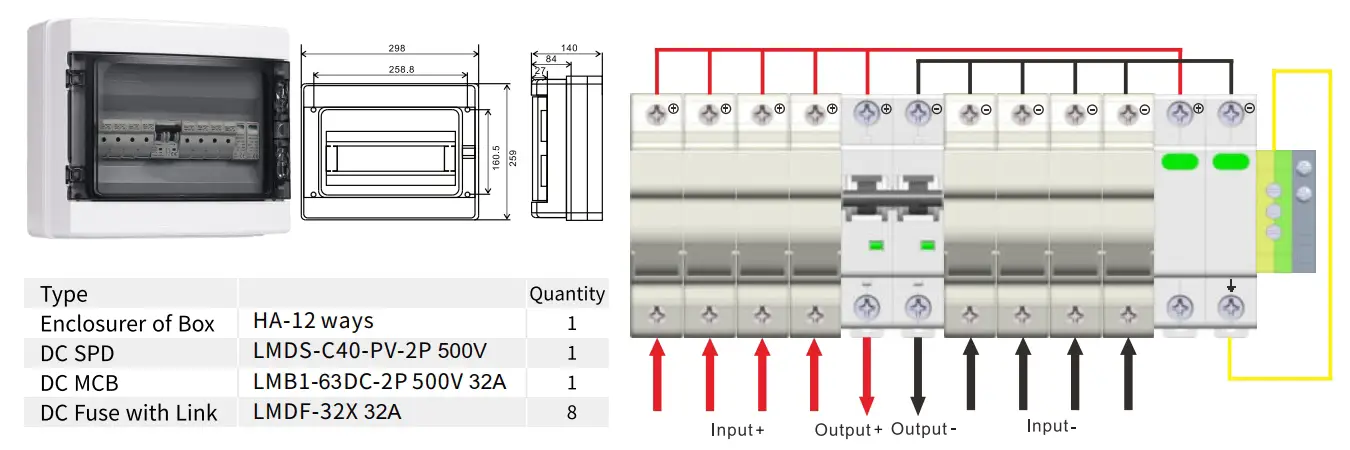

4 String Input 1 String Output Dc 500V

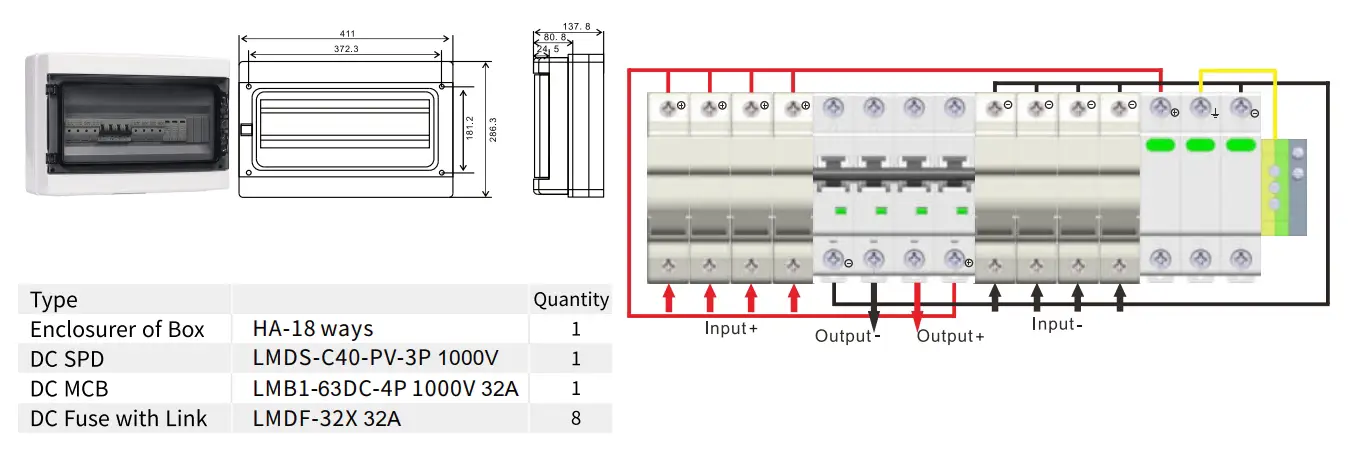

4 String Input 1 String Output Dc 1000V

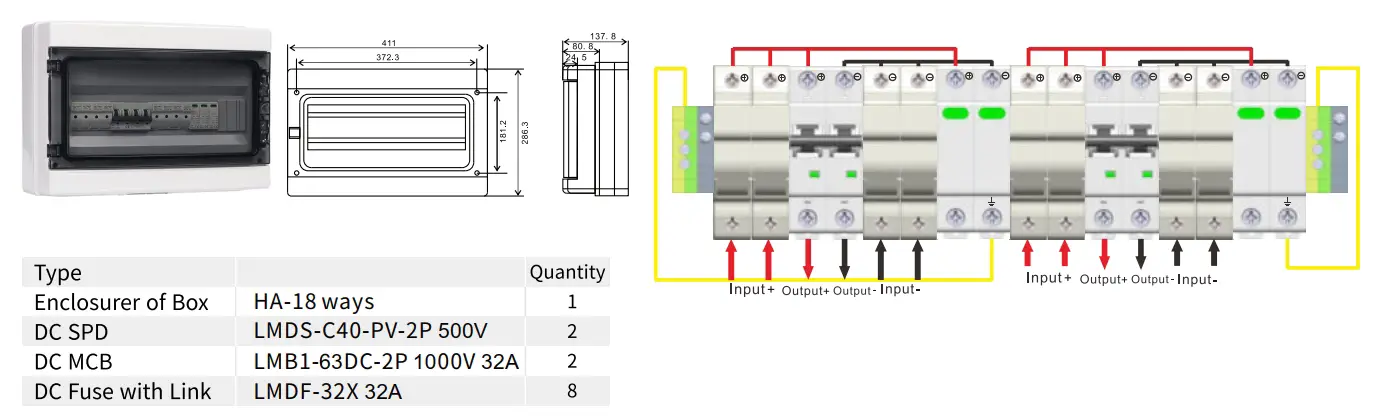

4 String Input 2 String Output Dc 500V

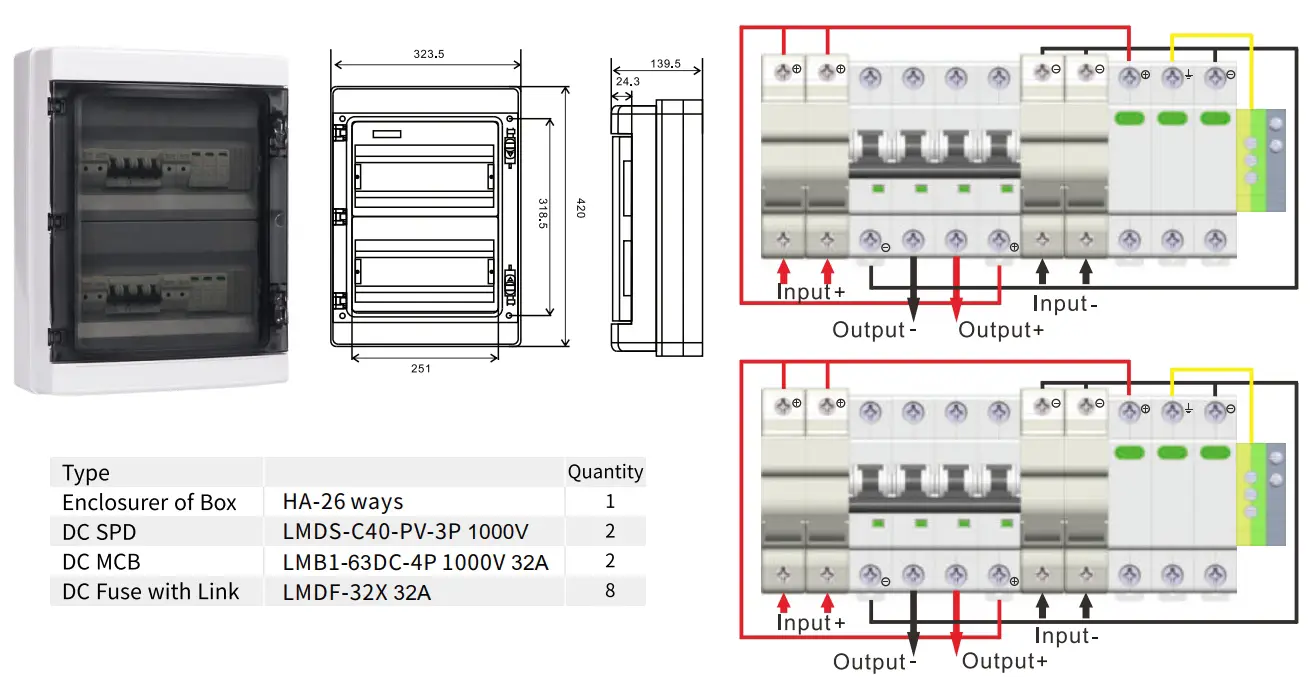

4 String Input 2 String Output Dc 1000V
How to Choose the Right PV Combiner Box (Selection Guide)
Improper selection of a PV combiner box will lead to unstable system operation, frequent faults, and even safety hazards. Follow these key criteria to select a matching model:
- Confirm String Number & Voltage Level: Match the number of input channels according to the actual number of solar panel strings. For modern PV systems, priority should be given to 1000V/1500V DC high-voltage models to improve power generation efficiency.
- Check Component Certification: Ensure core components such as fuses, breakers, and SPDs have international certifications including UL, IEC, CE, and TUV to meet local electrical code requirements.
- Match Environmental Protection Grade: Outdoor solar power stations must choose IP65 and above waterproof and dustproof enclosures with UV resistance and corrosion resistance; indoor systems can adopt IP54 standard models.
- Select Functional Configuration: Small household systems can choose economical passive models; C&I and large solar farms are recommended to use smart combiner boxes to realize refined operation and maintenance.
- Consider Regional Climate Adaptability: For high-temperature, rainy, or coastal salt-fog areas, select enhanced anti-corrosion and high-temperature resistant models to extend service life.
Common PV Combiner Box Faults & Troubleshooting
Daily maintenance and timely troubleshooting can effectively avoid solar power generation losses. The most common faults and solutions are as follows:
- Low Power Generation of Single String: Causes include loose wiring, aging fuses, or blocked solar panels. Solution: Check string wiring tightness, replace damaged fuses, and clean panel surface dust and sundries.
- SPD Damage & Lightning Protection Failure: Frequent thunderstorms may lead to SPD aging and failure. Solution: Regularly check the SPD status indicator and replace failed surge protectors in time.
- Water Ingress & Dust Accumulation: Long-term outdoor operation may cause seal aging. Solution: Regularly inspect the box body seal, clean internal dust, and replace aging sealing strips.
- Monitoring Data Abnormality: Smart combiner box data delay or error is usually caused by loose signal lines. Solution: Reconnect communication lines and restart the monitoring module.
Why a High-Quality PV Combiner Box Matters for Solar Projects
Many solar project owners tend to ignore the importance of combiner boxes and choose low-cost inferior products, which leads to frequent system faults, shortened equipment service life, and even fire accidents. A high-quality PV combiner box brings three core values:
First, it provides all-round electrical protection to eliminate potential safety hazards of DC power distribution. Second, it stabilizes system operation efficiency and avoids power generation loss caused by single-string faults. Third, it reduces later operation and maintenance costs, prolongs the overall service life of the solar system, and improves the long-term return on investment of solar projects.
Final Thoughts
As solar power generation technology continues to iterate, the PV combiner box has evolved from a simple wiring accessory to a core safety and management component of PV systems. Whether for residential, commercial, or utility-scale solar projects, selecting a certified, well-matched, high-quality PV combiner box is the key to ensuring long-term safe, stable, and efficient operation of solar power systems.
If you are looking for reliable, cost-effective PV combiner boxes with complete certifications and customized solutions, feel free to contact us for professional technical support and factory wholesale quotes.
FAQs About PV Combiner Box
1. Do I need a combiner box for my solar system?
Systems with more than 3 solar strings basically require a PV combiner box. It simplifies wiring, improves safety, and facilitates daily maintenance, which is an essential component for standardized PV systems.
2. What is the difference between a smart and regular PV combiner box?
Regular models only complete string combination and basic protection; smart models support real-time string monitoring, data remote transmission, and automatic fault alarm, suitable for medium and large solar projects.
3. How long does a PV combiner box last?
High-quality industrial-grade PV combiner boxes have a service life of 15-25 years, matching the service life of solar panels, with stable performance and low failure rate.
